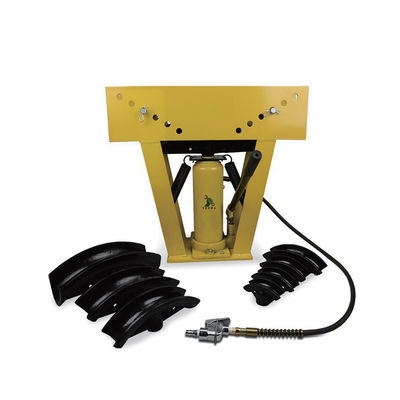

16Ton Air-Hydraulic Pipe Bender: 90°-180° Bend, 8 Dies for Heavy Auto/Industrial/Municipal Pipes
Product Details
| Product Name: | YD12-005 16Ton Air/Hydraulic Pipe Bender | Model No.: | YD12-005 |
|---|---|---|---|
| Core Performance: | Pipe Bending Capacity: Rated Bending Pressure 16 Tons, Bending Angle Range 90°-180° Die Configuration: 8 Precision Bending Dies, Including Sizes 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" | Dimension Parameters: | Package Size: 660×620×280mm Equipment Dimension: Approx. 630×580×260mm |
| Weight Parameters: | Weight Parameters Net Weight (N.W.): 66kg Gross Weight (G.W.): 73kg | Applicable Pipes: | Material: Steel Pipes, Galvanised Pipes, Copper Alloy Pipes, Thick-walled Aluminium Pipes, Stainless Steel Pipes Wall Thickness Specifications For Each Die Size Provided |
| Highlight |
16Ton hydraulic pipe bender,air-hydraulic pipe bender with 8 dies,heavy-duty pipe bender for industrial pipes |
||
Product Description
| Parameter Category | Specific Value |
|---|---|
| Product Name | YD12-005 16Ton Air/Hydraulic Pipe Bender |
| Model No. | YD12-005 |
| Core Performance |
Pipe Bending Capacity: Rated bending pressure 16 tons, bending angle range 90°-180° Die Configuration: 8 precision bending dies, including sizes 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" |
| Dimension Parameters |
Package Size: 660*620*280mm Equipment Dimension: Approx. 630*580*260mm |
| Weight Parameters |
Net Weight (N.W.): 66kg Gross Weight (G.W.): 73kg |
| Applicable Pipes |
Material: Steel pipes, galvanised pipes, copper alloy pipes, thick-walled aluminium pipes, stainless steel pipes Wall thickness specifications for each die size provided |
| Main Material |
Machine Body: 3mm-thick cold-rolled steel plate Dies: Chrome-molybdenum alloy steel Air-Hydraulic System: High-pressure cylinder and double-acting hydraulic cylinder |
Professional-grade equipment designed for bending thick-walled large-diameter pipes with precision and efficiency:
- 16-ton rated pressure for bending 3" thick-walled steel pipes with 7mm wall thickness
- Dual drive system (pneumatic/hydraulic) for flexible operation in various environments
- 90°-180° wide-angle adjustment with precision dial (±0.5° accuracy)
- 8 precision dies covering 1/2"-3" pipe diameters for versatile applications
- Double-acting cylinder increases bending efficiency by 50%
Laser-engraved workbench dial with 1° increments and mechanical self-locking pin ensures precise bending angles:
- 180mm optimized ram stroke for complete 180° full-circular bending
- Continuous operation capability with automatic return function
Built for stability and durability in demanding industrial environments:
- 3mm-thick cold-rolled steel plate body with I-shaped reinforcing rib
- 900N*m torsional strength with no shaking during operation
- 4 anti-slip foot pads and 2 front directional auxiliary casters for mobility
- Heavy-Duty Auto Repair: 180° U-bend of 3" stainless steel exhaust pipes
- Industrial Plants: 135° bending of 2-1/2" thick-walled steel steam pipes
- Municipal Engineering: 90°-120° adjustment of 3" galvanised heating pipes
- Shipyard Maintenance: 150° shaping of 2" copper alloy fuel pipes
No, this exceeds the equipment's 16-ton pressure limit. The 3" die is rated for steel pipes with wall thickness ≤7mm. Forced bending may cause equipment damage.
The equipment can be separated into body (50kg) and dies (16kg). Anti-slip carrying handles are provided for easier transport. Using a freight elevator or hydraulic truck is recommended.
For high-elastic materials, add 3°-5° compensation angle. Reduce pressure application speed to 2MPa/s. Professional tempering may be required for excessive springback.
Check for air source path blockage, leaks, or pneumatic component failure. Clean or replace filters, gaskets, or directional valve as needed. Contact manufacturer for seal replacements.
