Quality 16T Hydraulic Pipe Bender: 0°-90° Bend, 240mm Stroke for Outdoor/Auto/Home Pipe Work factory
<
Quality 16T Hydraulic Pipe Bender: 0°-90° Bend, 240mm Stroke for Outdoor/Auto/Home Pipe Work factory
Quality 16T Hydraulic Pipe Bender: 0°-90° Bend, 240mm Stroke for Outdoor/Auto/Home Pipe Work factory
>

16T Hydraulic Pipe Bender: 0°-90° Bend, 240mm Stroke for Outdoor/Auto/Home Pipe Work

Brand Name: YEEDA
Model Number: YD12-006
Place of Origin: Zhejiang,China
Certification: CE
Minimum Order Quantity: 50pcs
Supply Ability: 500PCS/MONTH
Delivery Time: 30-45DAYS
Payment Terms: T/T
Standard Packaging: Carton Box or Crate

Product Details


Product Name: YD12-006 16T Hydraulic Pipe Bending Machine Model No.: YD12-006
Highlight

16T hydraulic pipe bender

,

90° bend pipe bender

,

240mm stroke pipe bender

Product Description

YD12-006 16T Hydraulic Pipe Bending Machine

Professional-grade hydraulic pipe bender with 16-ton capacity, 0°-90° bending range, and 240mm stroke. Ideal for outdoor, automotive, and home pipe work in non-powered scenarios.

Product Specifications
Parameter Category Specific Value
Product Name YD12-006 16T Hydraulic Pipe Bending Machine
Model No. YD12-006
Core Performance
  • 16-ton rated hydraulic pressure
  • 0°-90° bending angle range
  • Manual 2-stage hydraulic hand pump operation
  • 3 swivel castors for mobility
Applicable Pipes
  • Round pipes (steel, galvanized, aluminum, copper alloy)
  • Wall thickness: 2.5mm-4.5mm

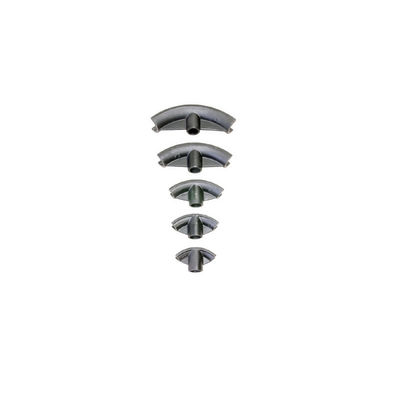

  • Diameter: 1/2"-3" (dies sold separately)
Dimensions & Weight
  • Approx. 700×400×550mm (L×W×H)
  • Net weight: 49kg
  • Gross weight: 55kg
Hydraulic System
  • 16-ton hydraulic rod pressure
  • 240mm hydraulic rod stroke
  • 2-stage hydraulic hand pump
  • Pre-filled with 46# anti-wear hydraulic oil
Key Features
16-Ton Manual Hydraulic Drive
  • Bends thick pipes (2.5-4.5mm wall thickness) without external power
  • 60% greater bending capacity than standard 10-ton manual benders
  • Sealed hydraulic system maintains stable pressure
2-Stage Labor-Saving Pump
  • Reduces operation intensity by 50%
  • Precise pressure control for accurate bending (±1°)
  • Adjustable pressing frequency for controlled bending speed
Mobile & Stable Design
  • 3 swivel castors with brakes for easy movement
  • 49kg lightweight design for portability
  • Stable operation even on sloped surfaces (≤2°)
240mm Long Stroke
  • Complete 90° bends on large-diameter pipes (up to 3")
  • Pipe positioning slots prevent deviation (±1mm accuracy)
  • Roundness retention ≥92% at bending angles
Application Scenarios
  • Outdoor pipe emergency repair: Non-powered operation for water supply pipeline repairs
  • Auto repair shops: Exhaust pipe bending for family vehicles
  • Home decoration: Water and electricity pipe transformation in tight spaces
  • Agricultural machinery: Hydraulic oil pipe shaping in remote locations
Frequently Asked Questions
Can this bend 2" steel pipes with 5mm wall thickness?
Not recommended. The 5mm wall thickness exceeds the 4.5mm limit and may damage the equipment. Use a 20+ ton bender for thicker pipes.
Can female operators push the 49kg equipment up a 10° slope?
Caution advised. Use assistance or reduce slope angle with wooden boards. Consider two-person operation for safety.
Why is hydraulic rod movement uneven?
Check hydraulic oil level and bleed air from the pump. Tighten any loose hydraulic connections.
How to maintain the manual pump after 1 year?
Replace hydraulic oil, clean the tank, and lubricate the pump core. For severe wear, replace the pump core (approx. 80 yuan).

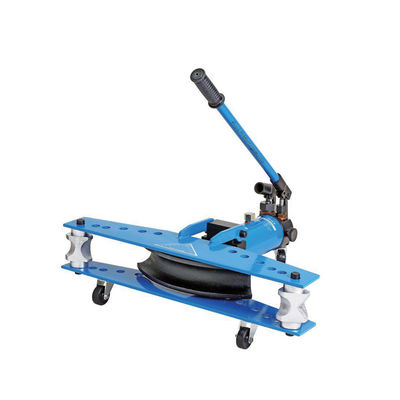

YD12-006 16T Hydraulic Pipe Bending Machine in operation Close-up of YD12-006 pipe bending mechanism

Product Highlights

YD12-006 16T Hydraulic Pipe Bending Machine Professional-grade hydraulic pipe bender with 16-ton capacity, 0°-90° bending range, and 240mm stroke. Ideal for outdoor, automotive, and home pipe work in non-powered scenarios. Product Specifications Parameter Category Specific Value Product Name YD12...
