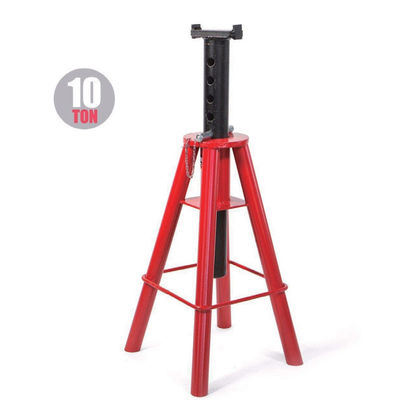

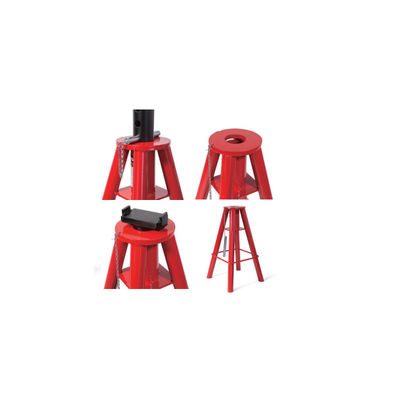

10-12Ton Jack Stands: Inclined Teeth, Cast Iron Post for Heavy Trucks/Loaders/Agriculture
Product Specifications
Basic Information & Common Parameters
| Common Parameters |
Specific Description |
| Product Type |
Heavy-Duty Jack Stand (Ratchet type axle stand) |
| Core Structure |
Cast iron support post + high-strength welded steel plate base, ensuring structural stability under heavy loads |
| Safety Design |
Inclined teeth built into the support post; the greater the load, the tighter the locking, preventing accidental load release |
| Mobility Feature |
Associated model YD13-009 in the same series is equipped with 2 castors for easy short-distance movement (YD13-018/019 without castors, focusing on fixed support) |
| Applicable Scenarios |
Stable support for lifted heavy-duty vehicles and engineering equipment; must be used in pairs |
Key Parameter Comparison by Model
| Parameter Category |
YD13-018 (10 Ton) |
YD13-019 (12 Ton) |
| Model No. |
YD13-018 |
YD13-019 |
| Capacity |
10 Ton |
12 Ton |
| Min. Height |
720mm |
805mm |
| Max. Height |
1190mm |
1213mm |
| N.W./G.W. |
22kg/24kg |
27kg/29kg |
| Package Size |
450*450*800mm |
480*480*800mm |
| QTY/20'CY |
155 units |
128 units |
| Main Material |
Support Post: Cast iron (compressive strength ≥250MPa); Base: 5mm-thick welded steel plate (electrostatic spray-painted anti-rust surface, no rust in 240-hour salt spray test) |
Support Post: High-grade cast iron (compressive strength ≥280MPa); Base: 6mm-thick welded steel plate (electrostatic spray-painted anti-rust surface, no rust in 260-hour salt spray test) |
| Tooth Design |
Inclined teeth with 5mm spacing, locking accuracy ±1mm |
Inclined teeth with 6mm spacing, locking accuracy ±0.8mm |
Product Details
The YD13-018/019 10-12 Ton Heavy-Duty Jack Stands are professional support equipment designed for heavy-duty vehicles and engineering equipment. These stands feature cast iron strong support, inclined tooth safety locking, and graded load adaptation to provide safe and reliable support solutions.
- Graded Heavy Load Capacity: Two models accurately match different heavy load needs with structural strength far exceeding ordinary stands.
- Inclined Tooth Locking: Innovative design physically eliminates accidental load release with load self-tightening principle.
- Wide Height Adaptation: Reasonable height range covers support needs of different heavy-duty equipment after lifting.
- Durable Heavy-Duty Materials: High-durability materials selected for high-frequency use in heavy-duty operations.
Application Scenarios
Heavy-Duty Truck Maintenance in Auto Repair Shops (YD13-019)
Stable support for lifted heavy-duty trucks during maintenance, reducing rear axle disassembly/assembly time from 4 hours to 2.5 hours.
Small Loader Maintenance by Engineering Teams (YD13-019)
Reliable outdoor maintenance solution for engineering equipment, with stands remaining stable even with slight vibrations on construction sites.
Large SUV Modification in Auto 4S Shops (YD13-018)
Precise height adjustment for heavy SUV modification, with cast iron support posts bearing loads stably during chassis height modifications.
Tractor Overhaul in Agricultural Machinery Stations (YD13-018)
Stable support for medium agricultural machinery lifting overhaul, with no risk of tractor rolling over during heavy tire removal.
Frequently Asked Questions
Q1: Can YD13-018 support 11-ton equipment? What safety hazards are there?
A1: Support is not recommended as it exceeds the rated load. Forced use may cause deformation of support post teeth, cracking of base welds, or stand collapse.
Q2: With a net weight of 27kg, can a single person carry and position YD13-019?
A2: A single person can carry it for short distances, but two-person cooperation is recommended for positioning to ensure symmetrical stand positions.
Q3: During use, the support post teeth get stuck and cannot adjust the height smoothly. What is the reason and how to solve it?
A3: Typically caused by dust in teeth or insufficient lubrication. Clean teeth, apply lithium-based grease, and check adjustment rod for deformation.
Q4: The base rusts after outdoor use. Will it affect the support strength? How to remove rust and maintain?
A4: Slight rust doesn't affect strength but requires removal. Polish rusted areas, apply anti-rust paint, and maintain with regular cleaning and oil application.
