7PCS Hydraulic Ram Kit 2-10T Push / Pull Metal Case For Auto / Mechanical / Metal Work

Large Image : 7PCS Hydraulic Ram Kit 2-10T Push / Pull Metal Case For Auto / Mechanical / Metal Work

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD14-003

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Ram Body:	45# Alloy Steel (push), High-strength Alloy (pull)	Seals:	Nitrile Rubber (NBR)
Metal Case:	.5mm Cold-rolled Steel	Product Type:	Hydraulic Tool Kit (5 Push Rams + 2 Pull-back Rams)
Force Range:	2T-10T Pushing/pulling Capacity	Packaging:	Molded Tray + Metal Case For Secure Storage
Highlight:	7PCS hydraulic ram kit with metal case , 2-10T push pull hydraulic ram , hydraulic ram kit for auto mechanical work

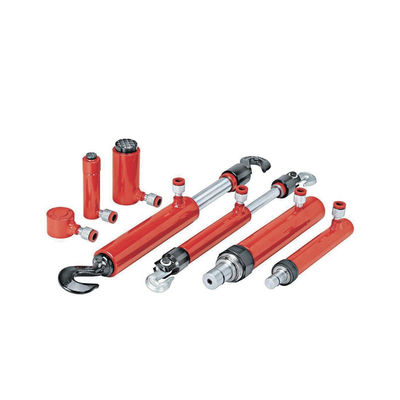

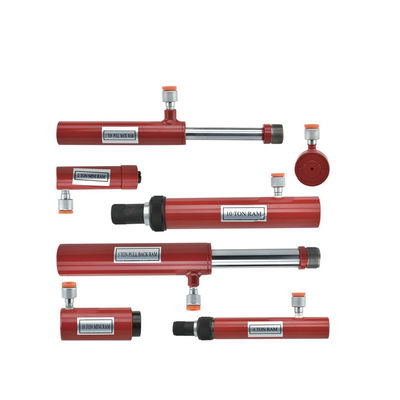

YD14-003 7PCS Hydraulic Push & Pull Ram Kit

Professional combination hydraulic tool kit for pushing, pulling, straightening, and disassembling metal parts in automotive, mechanical, and metalworking applications.

Product Specifications

Basic Information

Parameter	Description
Product Type	Hydraulic tool kit (5 push rams + 2 pull-back rams)
Force Range	2T-10T pushing/pulling capacity

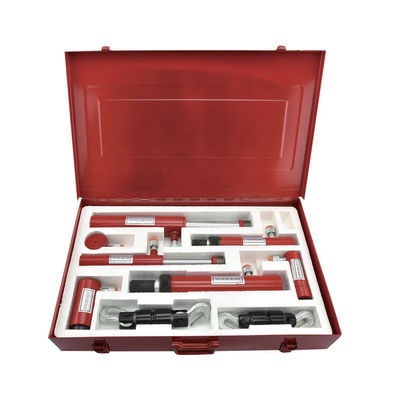

Packaging	Molded tray + metal case for secure storage
Working Principle	Single-acting operation powered by external hydraulic pump
Material Compatibility	Low-carbon steel, aluminum alloy, and other common metals

Hydraulic Push Ram Specifications

Model	Force	Stroke	Min Length	Max Length	Applications
Push Ram-1	2T	76mm	139mm	215mm	Light metal parts, small housings
Push Ram-2	4T	16mm	42mm	58mm	Precision short-stroke pushing
Push Ram-3	4T	132mm	276mm	408mm	Medium-long stroke pushing
Push Ram-4	10T	60mm	118mm	178mm	High-thrust short-stroke
Push Ram-5	10T	150mm	350mm	500mm	Heavy mechanical parts, frame straightening

Hydraulic Pull-Back Ram Specifications

Model	Force	Stroke	Min Length	Max Length	Applications
Pull Back Ram-1	2T	128mm	409mm	537mm	Light metal parts, aluminum components
Pull Back Ram-2	5T	130mm	483mm	613mm	Medium-heavy parts, autobody straightening

Material & Durability

Component	Material	Durability
Ram Body	45# alloy steel (push), high-strength alloy (pull)	≥850MPa tensile strength, 180hr salt spray resistant
Seals	Nitrile rubber (NBR)	-20℃ to 120℃, 500+ cycles leak-proof
Metal Case	1.5mm cold-rolled steel	15kJ/m² impact resistance, 50kg load capacity

Key Features

7-piece full coverage: Comprehensive solution for light to heavy-duty metal operations
Precision force control: ±5% force accuracy with pressure regulation capability
Dual-direction operation: Push and pull functionality for versatile applications
Professional packaging: Molded tray with labeled compartments for quick identification
Durable construction: Chrome-plated surfaces and high-strength alloy components

Application Scenarios

Auto Repair Shops

Simultaneously handle multiple vehicle repairs from family cars to light trucks with one kit:

Door dents (4T push ram)
Frame straightening (10T push ram)
Body panel repairs (2T pull-back ram)

Mechanical Repair

Precision disassembly of tightly fitted components:

Bearing removal with 4T short-stroke ram
Shaft sleeve disassembly with 5T pull-back ram
Housing alignment with 2T push ram

Metal Fabrication

Aluminum alloy and steel component straightening:

Window frame correction (2T rams)
Structural member alignment (10T ram)
Precision gap adjustment (4T short-stroke)

Frequently Asked Questions

Q: Does the kit require a specific hydraulic pump?

A: Works with any single-acting hydraulic pump (30-40MPa pressure range). Double-acting pumps can be adapted by closing the return circuit.

Q: How to ensure stability with the 500mm long 10T ram?

A: Use clamps to secure the ram to a stable surface and maintain slow, controlled operation (5-10mL/min oil flow). Keep applied force below 90% of rated capacity.

7PCS Hydraulic Ram Kit 2-10T Push / Pull Metal Case For Auto / Mechanical / Metal Work 0

7PCS Hydraulic Ram Kit 2-10T Push / Pull Metal Case For Auto / Mechanical / Metal Work 1

7PCS Hydraulic Ram Kit 2-10T Push / Pull Metal Case For Auto / Mechanical / Metal Work 2
