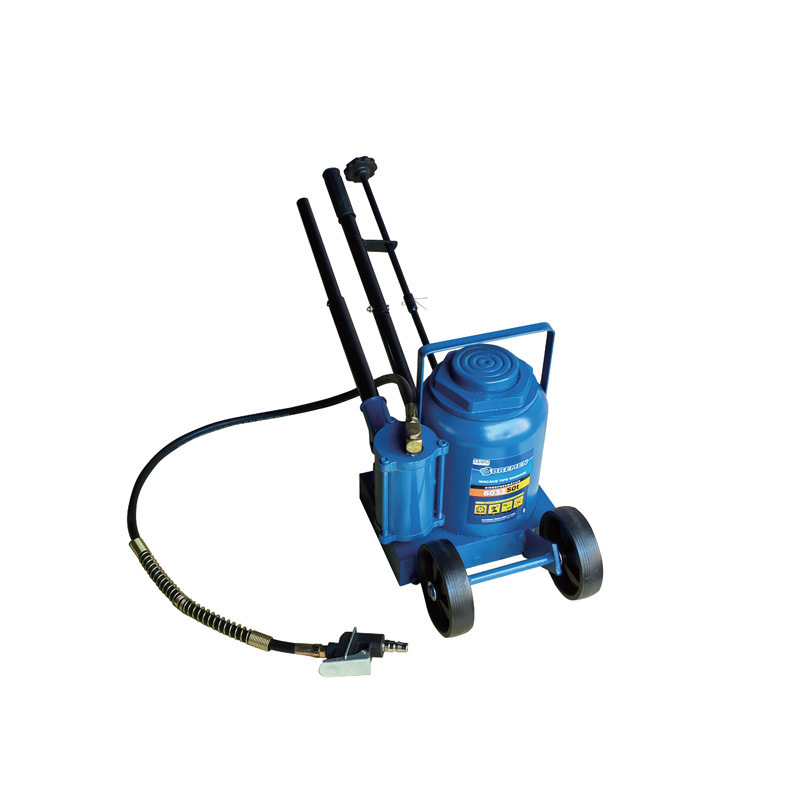

5-50 Ton Air Hydraulic Jacks Dual Mode For Auto / Engineering / Agriculture

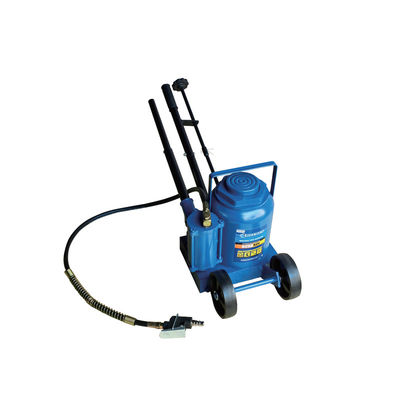

Large Image : 5-50 Ton Air Hydraulic Jacks Dual Mode For Auto / Engineering / Agriculture

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD15-001-005

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Type:	Air And Hydraulic Jack With Manual/pneumatic Dual-mode Operation	Core Functions:	Pneumatic Mode: Fast Lifting With Compressed Air (0.6-0.8MPa) Manual Mode: Hydraulic Pump Operation For Air-free Environments
Safety Design:	Overload Protection System, Explosion-proof Cylinder Design	Structural Features:	High-strength Alloy Construction With Rust-resistant Coating
Applications:	Auto Repair, Logistics, Engineering, And Agricultural Machinery
Highlight:	5-50Ton air-hydraulic jack , dual-mode hydraulic jack for auto , agriculture air hydraulic jacks

5-50Ton Air-Hydraulic Jacks: Dual-Mode for Auto/Engineering/Agriculture

Product Overview

The YD15 series air-hydraulic jacks combine pneumatic efficiency with hydraulic stability, offering dual-mode operation for versatile lifting applications across automotive, industrial, and agricultural sectors.

I. Product Specifications

1. Basic Information & Common Parameters

Parameter	Description
Product Type	Air and hydraulic jack with manual/pneumatic dual-mode operation
Core Functions	Pneumatic mode: Fast lifting with compressed air (0.6-0.8MPa) Manual mode: Hydraulic pump operation for air-free environments
Safety Design	Overload protection system, explosion-proof cylinder design
Structural Features	High-strength alloy construction with rust-resistant coating
Applications	Auto repair, logistics, engineering, and agricultural machinery

2. Model Comparison

Parameter	YD15-001 (5Ton)	YD15-002 (12Ton)	YD15-003 (20Ton)	YD15-004 (32Ton)	YD15-005 (50Ton)
Rated Capacity	5Ton	12Ton	20Ton	32Ton	50Ton
Min. Height	210mm	250mm	260mm	260mm	280mm
Lifting Height	160mm	150mm	150mm	155mm	160mm
Net Weight	6kg	12kg	17kg	21kg	34kg

II. Key Features

1. Dual-Mode Operation

Pneumatic Mode: 5-8x faster than manual operation (30 seconds to lift SUV)
Manual Mode: Reliable operation without air supply (1 minute to lift tractor)

2. Graded Load Capacity

Light-Duty (5-12Ton): Family cars, SUVs (6-12kg weight)
Medium-Duty (20-32Ton): Heavy trucks, small equipment (17-21kg)
Heavy-Duty (50Ton): Large engineering vehicles (34kg with wheels)

3. Safety Features

Overload protection valve (activates at 110% capacity)
Thick-walled cylinders (up to 15mm for 50Ton model)
Reinforced base plates (up to 10mm thickness)

III. Application Scenarios

Auto Repair Shop (YD15-001)

Lifting Toyota Corolla (1.8Ton) for oil filter replacement:

6kg jack easily positioned under chassis (210mm min height)
Pneumatic mode lifts to 350mm in 30 seconds
60% faster than manual jacks

Logistics Park (YD15-004)

Tire replacement for Foton Auman truck (28Ton):

21kg jack with rollers for easy positioning
Pneumatic lifting to 400mm in 1 minute
Stable operation without vehicle tilting

IV. Frequently Asked Questions

Q1: Air compressor requirements?

Light models (5-12Ton): ≥0.12m³/min (1.5kW compressor sufficient)

Heavy models (20-50Ton): ≥0.3-0.5m³/min (3kW+ compressor recommended)

Q2: Can one person move the 50Ton model?

Yes - the 34kg YD15-005 features hidden universal wheels for easy positioning by one person.
