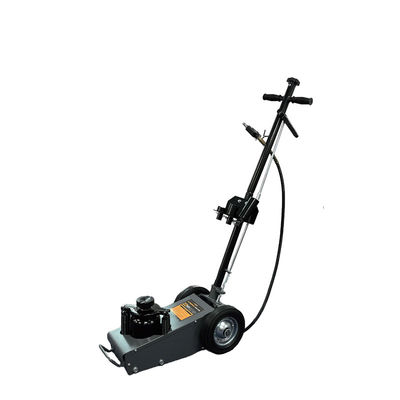

22-50Ton Axle Jacks: Pneumatic/Hydraulic, Self-Retracting for Trucks/Engineering

Large Image : 22-50Ton Axle Jacks: Pneumatic/Hydraulic, Self-Retracting for Trucks/Engineering

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD16-001-003

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Parameter:	YD16-001 (22Ton)	Rated Capacity:	22Ton
Min. Height:	225mm	Lifting Height:	140mm
Max. Height:	450mm	Net Weight:	38kg
Highlight:	22-50Ton pneumatic axle jack , hydraulic truck axle jack , self-retracting engineering jack

22-50Ton Pneumatic/Hydraulic Axle Jacks

Professional self-retracting axle jacks for trucks and engineering vehicles with dual pneumatic/hydraulic drive systems.

Product Specifications

Basic Information & Common Parameters

Parameter	Description
Product Type	Pneumatic/hydraulic axle jack for heavy-duty vehicle maintenance
Core Functions	Pneumatic mode: 0.6-0.8MPa compressed air for fast lifting Hydraulic mode: Manual pressurization for emergency use
Structural Features	Steel wheels with hard rubber tires, long T-handle for precise positioning
Safety Features	Self-retracting spring return system, thick-walled alloy cylinder (≥40MPa pressure resistance)
Applications	Heavy-duty trucks, freight lorries, engineering vehicles for axle maintenance and repairs

Model Comparison

Parameter	YD16-001 (22Ton)	YD16-002 (35Ton)	YD16-003 (50Ton)
Rated Capacity	22Ton	35Ton	50Ton
Min. Height	225mm	277mm	277mm
Lifting Height	140mm	150mm	150mm
Max. Height	450mm	547mm	547mm
Net Weight	38kg	42kg	46kg
Materials	45# steel cylinder, 8mm base plate	50# steel cylinder, 10mm base plate	60# steel cylinder, 12mm base plate

Key Features

Heavy-Load Capacity & Safety

High-strength materials: Thick-walled seamless steel pipes prevent deformation under load
Dual drive modes: Pneumatic for efficiency (6-8x faster than manual) and hydraulic for emergencies

Convenient Operation

Easy movement: Large rubber tires reduce pushing effort by 80% compared to wheel-less jacks
Automatic return: Self-retracting spring system saves time (returns in 8-10 seconds)

Precise Height Adaptation

Low minimum height: 225mm for 22Ton model fits under low-axle vehicles
Ample lifting range: Up to 547mm maximum height provides sufficient workspace

Application Scenarios

Tire Replacement for Semi-Trailers (35Ton Model)

One operator can position and lift a 30Ton axle to 500mm in 40 seconds using pneumatic mode, with automatic return after maintenance.

Axle Inspection Without Air Supply (22Ton Model)

Manual hydraulic mode lifts 20Ton axle to 400mm in 1 minute, with self-retracting feature saving return time.

Frequently Asked Questions

Can the 22Ton model lift a 30Ton axle?

No - Exceeding the rated capacity by 36% creates serious safety risks including cylinder bursting. Always use a properly rated model.

Is the 50Ton model difficult to move?

The 46kg weight is easily pushed by one person thanks to large rubber tires that handle gravel and uneven surfaces.
