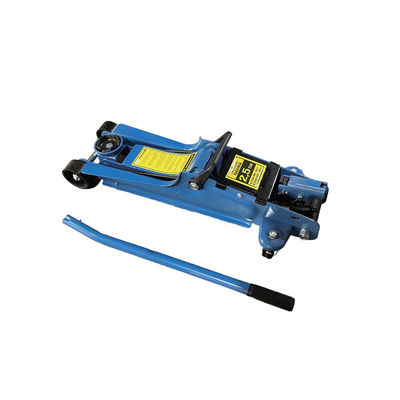

2.5Ton Hydraulic Jack: 85mm Low Height, 360° Saddle for Cars/SUVs/Light Trucks
Product Details
| Product Type: | Manual Hydraulic Jack For Light To Medium Loads, Designed For Vehicle Lifting And Equipment Support | Rated Weight Capacity: | 5,500LB (2,500KGS/2.5Ton) - Suitable For Family Cars, Small SUVs, And Light Trucks |
|---|---|---|---|
| Height Parameters: | Min Height: 3.34" (85mm) | Max Height: 14.56" (370mm) | Dimension Specifications: | Product: 23.2"×9.6"×6" (590×240×150mm) | Shipping: 23.6"×10"×6" (600×260×150mm) |
| Weight Parameters: | Product: 28.6LB (13kg) | Shipping: 31LB (14kg) | Core Configuration: | High-strength Steel Frame, 360° Swivel Saddle, Sealed Hydraulic System, Safety Overload Protection |
| Highlight |
2.5Ton hydraulic jack for cars,low height hydraulic jack 85mm,360° saddle hydraulic jack SUVs |
||
Product Description
| Parameter Category | Specific Description |
|---|---|
| Model No. | YD19-001 |
| Product Type | Manual hydraulic jack for light to medium loads, designed for vehicle lifting and equipment support |
| Rated Weight Capacity | 5,500LB (2,500KGS/2.5Ton) - suitable for family cars, small SUVs, and light trucks |
| Height Parameters | Min Height: 3.34" (85mm) | Max Height: 14.56" (370mm) |
| Dimension Specifications | Product: 23.2"*9.6"*6" (590*240*150mm) | Shipping: 23.6"*10"*6" (600*260*150mm) |
| Weight Parameters | Product: 28.6LB (13kg) | Shipping: 31LB (14kg) |
| Core Configuration | High-strength steel frame, 360° swivel saddle, sealed hydraulic system, safety overload protection |
| Material & Protection | Heavy gauge steel frame (≥800MPa), sealed hydraulic system, anti-rust electrostatic spray coating |
| Applicable Scope | Family cars (Toyota Corolla, Volkswagen Lavida), small SUVs (Haval H2), light trucks (Wuling Hongguang PLUS) |
- Specifically designed for low-chassis vehicles (sports cars, sedans) with no need for additional gaskets
- 80% better adaptation rate for low-profile vehicles compared to standard 120mm+ jacks
- Eliminates risk of chassis scratching during insertion
- High-Strength Steel Frame: 5Ton load capacity (2* rated load) with widened 9.6" base
- 360° Swivel Saddle: Adjusts to vehicle chassis angle with anti-slip patterns (70% better grip)
- Overload Protection: Automatic cutoff at 110% of rated capacity (2.75Ton)
- Fully sealed hydraulic system prevents dust/water ingress (maintenance-free)
- Tested for 500+ lifts without leakage or jamming
- Anti-rust coating passes 120-hour salt spray test (1.5* longer lifespan)
- Only 13kg (28.6LB) - 30% lighter than comparable 2.5Ton jacks
- Compact 590*240*150mm size fits standard car trunk compartments
- 25-30 handle presses required for full lift (85mm to 370mm)
For Toyota Corolla (1.8Ton, 140mm chassis): 85mm height fits easily, 360° saddle prevents chassis scratches, completes tire change in 15 minutes.
For Haval H2 (1.6Ton): Sealed hydraulic system withstands water spray, stable at 300mm lift height for 20-minute cleaning.
For BMW 3 Series (1.7Ton): 85mm low profile fits without pads, 350mm lift provides ample workspace for waxing.
For 1.5Ton seeders (100mm chassis): Dust-resistant design works in field conditions, stable on uneven ground.
No - Overload protection activates at 2.75Ton. Use a 3Ton+ jack for heavier loads.
No - Damping mechanism and chassis pressure lock it in place after adjustment.
Likely due to cold temperatures (let warm up) or seal adhesion (press handle firmly 5-10 times).
- Use knee lift technique (not back bending)
- Slide short distances when possible
- Use trunk anti-slip mat for storage
