3Ton Low Profile Jack: 76mm Min Ht, Fast-Lowering Handle for Sports Cars/Low-Chassis Vehicles
Product Details
| Model No.: | YD19-003 | Product Type: | Low Profile Steel Hydraulic Floor Jack, Specially Designed For Low-chassis Vehicles, Mainly Used For Lifting Sports Cars, Performance Sedans, And Modified Cars, Suitable For Individual Car Owners, Auto Beauty Shops, And Professional Auto Repair Shops |
|---|---|---|---|
| Rated Weight Capacity: | 6,600LB (3,000KGS/3Ton), | Height Parameters: | Min Height: 2.95” (76mm), Max Height: 19.8” (503mm), |
| Dimensions & Weight: | Product Dimensions: 27.5"×13"×6.25” (698×330×158mm), | Core Configuration: | 76mm Ultra-Low Base |
| Highlight |
3Ton low profile jack,low profile jack for sports cars,fast-lowering handle car jack |
||
Product Description
| Parameter Category | Specific Description |
|---|---|
| Model No. | YD19-003 |
| Product Type | Low profile steel hydraulic floor jack, specially designed for low-chassis vehicles |
| Rated Weight Capacity | 6,600LB (3,000KGS/3Ton), with overload protection threshold of 3.3Ton |
| Height Parameters | Min Height: 2.95" (76mm), Max Height: 19.8" (503mm) |
| Dimensions & Weight | Product Dimensions: 27.5"×13"×6.25" (698×330×158mm), Weight: 79.2LBS (36kg) |
| Core Configuration |
|
| Applicable Scope | Supercars (Porsche 718, BMW Z4), performance sedans (Audi S3, Mercedes-AMG A45), low-chassis modified cars, and family cars |

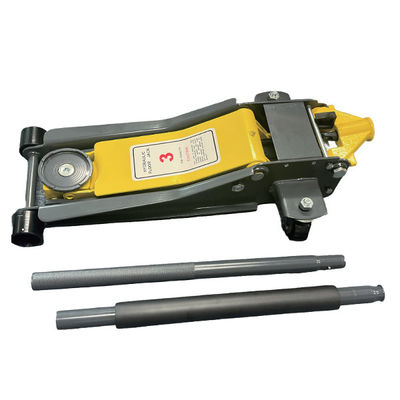

The YD19-003 3Ton Low Profile Steel Hydraulic Floor Jack is designed to address the challenges of lifting low-chassis vehicles with its ultra-low adaptation, safe vehicle protection, and efficient operation.
The base is integrally stamped from 10mm thick high-strength cold-rolled steel, with a minimum height of only 76mm—30% thinner than ordinary 3Ton floor jacks. Key features:
- Easily slides under supercars like Porsche 718 (chassis height 120mm) without removing chassis guards
- Adapts to modified sedans with chassis lowered to 50-80mm with 90% better adaptation than ordinary jacks
- Bottom has anti-slip patterns with friction coefficient ≥0.7 to prevent sliding under 3Ton load
- Foam-Buffered Twist Handle: 30mm thick high-density foam bumper prevents panel damage
- Rubber Saddle: 5mm thick oil-resistant rubber layer protects chassis coating
- Stable Structure: 120mm saddle diameter provides 87.5% larger contact area than standard jacks
- Fast-Lowering Design: Lowers from 503mm to 76mm in just 15 seconds (90% faster than standard jacks)
- Sealed Hydraulic System: Double sealing rings prevent dust and water intrusion
- Low-Temperature Operation: Works normally in temperatures as low as -10℃
Scenario: Porsche 718 (chassis height 120mm, weight 1.5Ton) flat tire on mountain road.
Process:
- 76mm ultra-low base slides under vehicle from side skirt
- Lifts tire 8cm off ground with rubber saddle protecting chassis
- Fast lowering completes in 15 seconds with no vehicle scratches
Result: 60% more efficient than traditional emergency jacks.
Scenario: Audi S3 (chassis height 130mm, weight 1.6Ton) deep chassis cleaning.
Process:
- 76mm base slides under chassis with rubber saddle alignment
- Sealed hydraulic system prevents water intrusion during cleaning
- No shaking or chassis damage during 30-minute process
A1: Not recommended due to scratching risks. For vehicles ≤70mm, raise suspension first or use professional racing-grade jack with ≤60mm height.
A2: Immediately stop using and replace. Contact manufacturer for replacement rubber layer (30-50 yuan/piece). Temporary solution: use 3mm thick rubber pad.
A3: Yes for short distances. Tips: use hidden metal handles, slide on ground for ≤10m distances, or use storage rack.
A4: Possible causes/solutions:
- Replace hydraulic oil if idle >6 months
- Lubricate seals by pressing handle (≤80N force)
- Clean impurities with compressed air or alcohol
Recommend lifting jack once every 3 months to prevent issues.
