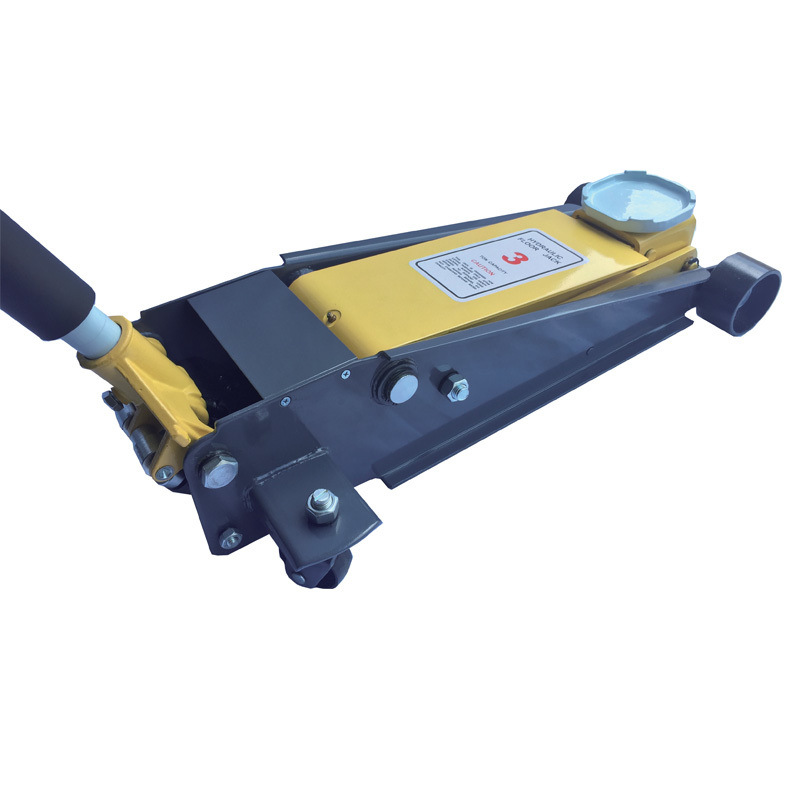

3Ton Hydraulic Jack: Roller-Cam Plunger, Double-Sealed for Trucks/SUVs/Engineering
Product Details
| Parameter Category Specific Description Model No.: | YD19-004 | Product Type: | Professional Hydraulic Floor Jack For Medium Heavy-load Scenarios Including Auto Repair Shops, Logistics Parks, And Engineering Teams |
|---|---|---|---|
| Rated Weight Capacity: | 6,666LBS (3,000KGS/3Ton) With 3.3Ton Overload Protection Threshold | Height Parameters: | Min Height: 4.9" (125mm) | Max Height: 20.86" (530mm) |
| Structural Dimensions: | Front Width: 11" (279mm) | Rear Width: 14.5" (368mm) | Chassis Length: 28.93" (735mm) | Weight & Packaging: | Shipping Weight: 79LBS (45.5kg) | Shipping Dimensions: 32"×16"×8" (813×406×203mm) |
| Highlight |
3Ton hydraulic jack for trucks,roller-cam plunger hydraulic jack,double-sealed SUV hydraulic jack |
||
Product Description
Heavy-duty roller-cam plunger hydraulic jack with double-sealed system, designed for trucks, SUVs, and engineering equipment. Rated capacity: 6,666LBS (3,000KGS/3Ton) with overload protection.
| Parameter Category | Specific Description |
|---|---|
| Model No. | YD19-004 |
| Product Type | Professional hydraulic floor jack for medium heavy-load scenarios including auto repair shops, logistics parks, and engineering teams |
| Rated Weight Capacity | 6,666LBS (3,000KGS/3Ton) with 3.3Ton overload protection threshold |
| Height Parameters | Min Height: 4.9" (125mm) | Max Height: 20.86" (530mm) |
| Structural Dimensions | Front Width: 11" (279mm) | Rear Width: 14.5" (368mm) | Chassis Length: 28.93" (735mm) |
| Weight & Packaging | Shipping Weight: 79LBS (45.5kg) | Shipping Dimensions: 32"*16"*8" (813*406*203mm) |
- Heavy Gauge Steel Construction: 12mm cold-rolled steel with tensile strength ≥1000MPa
- Roller-Cam Plunger Assembly: Reduces operating force by 40% with chrome-plated plunger
- Double-Sealed Hydraulic System: Works normally at -20℃ with dust/water protection
- Flanged Side Plates: 30% increased bending strength
- Built-in Overload Protection: Automatic oil cut-off when load exceeds 3.3Ton
Main body made of 12mm thick cold-rolled steel with no permanent deformation after 100,000 fatigue tests. Front-narrow-rear-wide chassis layout provides 15% larger grounding area than symmetric chassis jacks.
Rolling friction reduces operating force to ≤55N. Chrome-plated plunger extends service life by 2* with wear ≤0.02mm after 500 consecutive lifts.
Nitrile rubber main seal + PTFE auxiliary seal prevent oil leakage. Low-temperature hydraulic oil maintains fluidity at -20℃.
- Push jack to truck bottom (125mm min height)
- Lift to 400mm height with roller-cam plunger
- Complete maintenance with stable lifting
Result: 50% more efficient than ordinary jacks with no operator fatigue.
- Position jack under SUV's rear wheel
- 30 pumps lift tire 8cm off ground
- Complete tire replacement in 10 minutes
Result: 15 vehicles can be serviced daily with convenient roller movement.
