Product Details:
Payment & Shipping Terms:
|
| Model No.: | YD19-005 | Rated Weight Capacity: | 4,400LBS (2,000KGS/2Ton) |
|---|---|---|---|
| Height Parameters: | Lowered Height: 3.3" (85mm) Raised Height: 18.06" (460mm) | Weight & Packaging: | Product Weight: 46LBS (18.6kg) Shipping Weight: 46.2LBS (21kg) Dimensions: 29.9"×14.37"×7.87" |
| Core Configuration: | 8mm Cold-rolled Steel Construction (≥800MPa Tensile Strength) Single-cylinder Hydraulic System (≤50N Operating Force) 100mm Diameter Anti-slip Saddle (diamond Pattern Surface) 4-wheel System (2 Universal Front + 2 Directional Rear Wheels) | Applicable Scope: | Family Cars (Toyota Corolla, Honda Civic), Small SUVs (Haval H2, Changan CS35), Light-duty Mobility Vehicles |
| Highlight: | 2Ton hydraulic jack for cars,low height hydraulic jack 85mm,hydraulic jack with 460mm stroke |
||

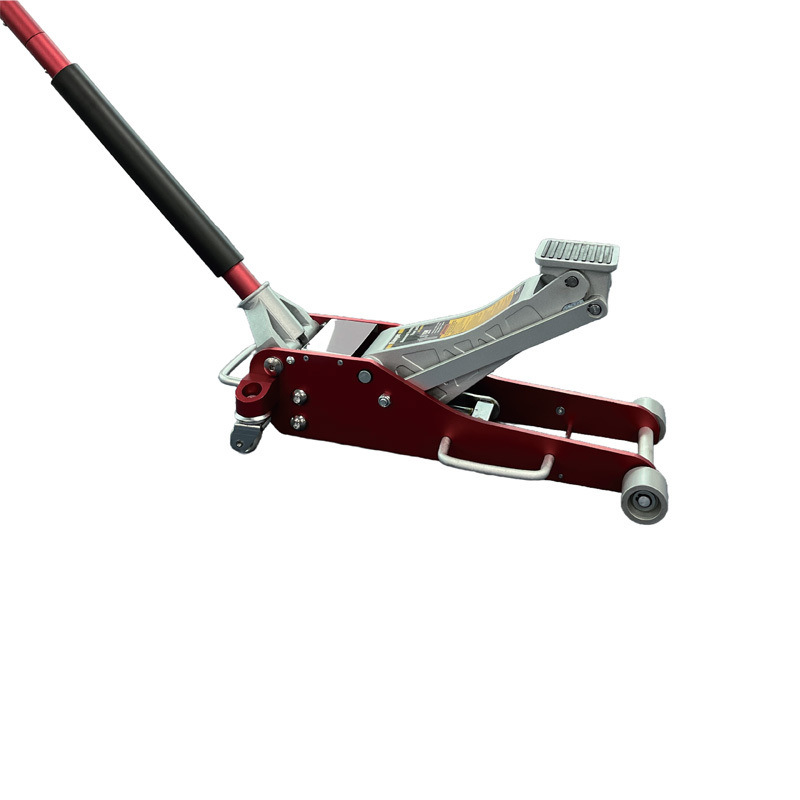

Lightweight hydraulic floor jack specially designed for family cars, small SUVs, and light vehicles. Ideal for emergency tire replacement, daily maintenance, and light-duty operations in small auto repair shops.
| Parameter Category | Specific Description |
|---|---|
| Model No. | YD19-005 |
| Rated Weight Capacity | 4,400LBS (2,000KGS/2Ton) with overload protection system (cuts off at 2.2Ton) |
| Height Parameters | Lowered Height: 3.3" (85mm) Raised Height: 18.06" (460mm) |
| Weight & Packaging | Product Weight: 46LBS (18.6kg) Shipping Weight: 46.2LBS (21kg) Dimensions: 29.9"*14.37"*7.87" |
| Core Configuration |
|
| Applicable Scope | Family cars (Toyota Corolla, Honda Civic), small SUVs (Haval H2, Changan CS35), light-duty mobility vehicles |
Quickly lift vehicles (e.g., Toyota Corolla) for tire changes in roadside emergencies. The 85mm low profile fits easily under most cars, while the lightweight design makes it portable for individual users.
Ideal for small repair shops performing tire rotations or brake inspections. The wheeled design allows easy movement between vehicles, increasing technician efficiency.
Provides stable lifting for SUV chassis cleaning. The anti-slip saddle prevents vehicle movement during high-pressure washing.
A: Yes, safely. The 2Ton capacity exceeds typical small SUV weights, and the overload protection activates only above 2.2Ton.
A: Clean debris from rollers and apply lubricant. For severe cases, replacement rollers are available.
A: Use proper lifting technique or slide the jack along the ground for short distances to reduce effort.
A: Wipe dry after use, store in waterproof bag, and perform quarterly maintenance checks.
