2Ton Hydraulic Jack: 86mm Low Ht, 418mm Stroke for Cars/Small SUVs

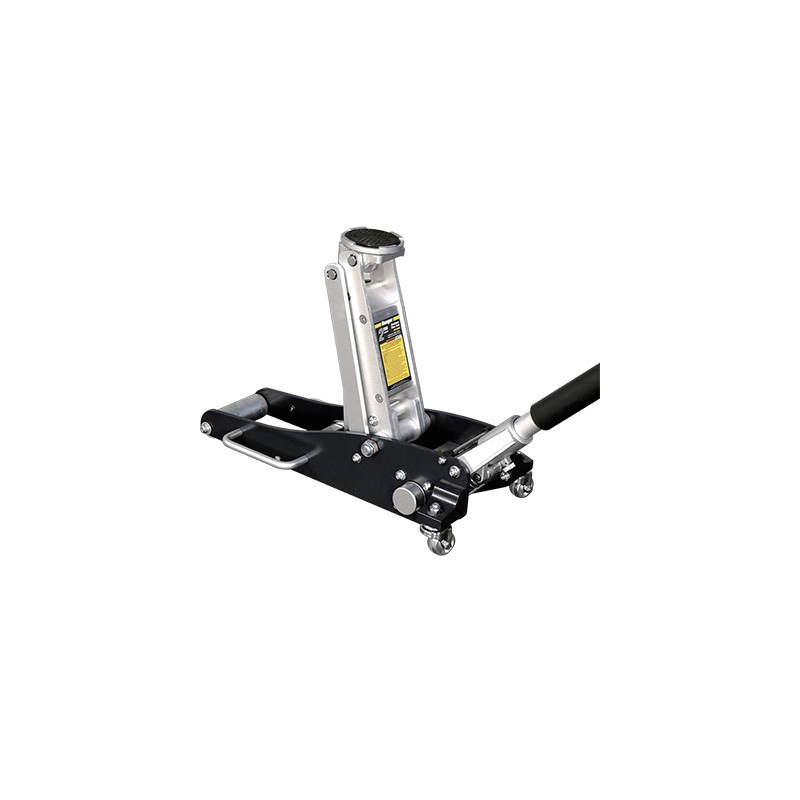

Large Image : 2Ton Hydraulic Jack: 86mm Low Ht, 418mm Stroke for Cars/Small SUVs

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD19-006

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Model No.:	YD19-006	Product Type:	Lightweight Hydraulic Floor Jack,
Rated Weight Capacity:	4,400LBS (2,000KGS/2Ton)	Height Parameters:	Lowered Height: 3.38" (86mm) Raised Height: 16.45" (418mm)
Weight & Packaging:	Product Weight: 40.5LBS (18.5kg) Shipping Weight: 44LBS (20kg) Shipping Dimensions: 28.75"×13.38"×6.7" (730×340×170mm)	Parameter Category Specific Description Model No. YD19-006 Product Type Lightweight Hydraulic Floor :	Family Cars (Honda Civic,
Highlight:	2Ton hydraulic jack for cars , low height hydraulic jack 86mm , hydraulic jack for small SUVs

2Ton Hydraulic Jack: 86mm Low Height, 418mm Stroke for Cars/Small SUVs

Product Specifications

Parameter Category	Specific Description
Model No.	YD19-006
Product Type	Lightweight hydraulic floor jack, specially designed for individual car owners and small auto repair shops. Mainly used for emergency tire replacement, daily maintenance, and light repair of family cars, small SUVs, and other light vehicles
Rated Weight Capacity	4,400LBS (2,000KGS/2Ton), with built-in overload protection system (automatically cuts off hydraulic circuit when load exceeds 2.2Ton)
Height Parameters	Lowered Height: 3.38" (86mm) Raised Height: 16.45" (418mm)
Weight & Packaging	Product Weight: 40.5LBS (18.5kg) Shipping Weight: 44LBS (20kg) Shipping Dimensions: 28.75"×13.38"×6.7" (730×340×170mm)
Core Configuration	High-Strength Lightweight Steel: 7mm cold-rolled steel with tensile strength ≥750MPa Simplified Hydraulic System: Single-cylinder design with operating force ≤48N Anti-Slip Wear-Resistant Saddle: 95mm diameter with grid-like anti-slip patterns Flexible Moving Rollers: 2 universal front wheels + 2 directional rear wheels
Applicable Scope	Family cars (Honda Civic, Toyota Corolla), small SUVs (Haval H1, Changan CS15), and light mobility vehicles (BYD Seagull, Wuling Bingo)

Product Advantages

18.5kg Ultra-Light Weight + 86mm Low Height

Weighs only 18.5kg (16% lighter than comparable jacks), easily carried by one person
86mm minimum height fits under low-chassis vehicles without additional adjustments

Labor-Saving Hydraulics + Stable Structure

Requires only 28-32 pumps to lift from 86mm to 418mm (25% more efficient than standard jacks)
7mm cold-rolled steel frame maintains ≤0.1mm deformation after 50,000 fatigue tests

Detail Optimization for Multi-Scenario Use

418mm lifting height provides sufficient space for tire replacement and maintenance
Sealed hydraulic system with nitrile rubber seals requires minimal maintenance

Application Scenarios

Individual Car Owner's Outdoor Emergency Tire Replacement

Carry 18.5kg jack to vehicle and extend under chassis (86mm minimum height)
Lift vehicle with 30 pumps (reaching 380mm height)
Complete tire replacement in 10 minutes with stable anti-slip saddle

Tire Rotation in Small Auto Repair Shops

Easily position jack under vehicle (86mm height fits without adjustment)
Lift to 350mm for sufficient tire rotation space
Flexible rollers allow single technician to complete job in 25 minutes

Frequently Asked Questions

Q1: Can YD19-006 lift a 1.9Ton small SUV?

A1: Yes, it can safely lift up to 2Ton without triggering overload protection. The system activates only above 2.2Ton.

Q2: What if the hydraulic system lifts slowly or feels stuck?

A2: This is typically caused by insufficient hydraulic oil, air in the system, or impurities. Check oil level, bleed air from system, and clean any blockages.

Q3: Can female users carry the 18.5kg jack alone?

A3: Yes, using proper carrying techniques: hold side handles with both hands, bend knees and keep back straight. For short distances, sliding the jack along the ground reduces effort by 45%.
