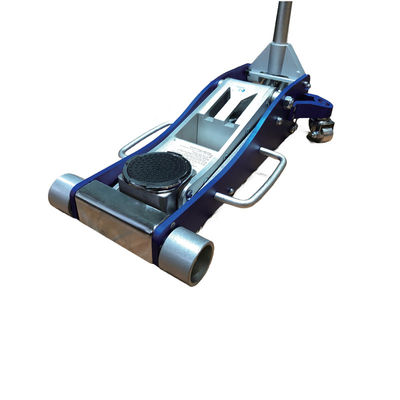

3Ton Hydraulic Jack: 95mm Low Ht, 487mm Stroke for Heavy SUVs/Light Trucks
Product Details
| Model No.: | YD19-007 | Rated Weight Capacity: | 6,600LBS (3,000KGS/3Ton) With Overload Protection System |
|---|---|---|---|
| Height Parameters: | Lowered: 3.74" (95mm) | Raised: 19.17" (487mm) | Weight & Packaging: | Product: 55.66LBS (25.3kg) | Shipping: 58.3LBS (26.5kg) |
| Core Configuration: | 9mm Cold-rolled Steel With ≥900MPa Tensile Strength Dual-cylinder Hydraulic System (≤60N Operating Force) 110mm Anti-slip Saddle With Honeycomb Pattern Quiet Polyurethane/rubber Rollers (≤55dB Noise) | ||
| Highlight |
3Ton hydraulic jack for SUVs,low height hydraulic jack 95mm,487mm stroke hydraulic truck jack |
||
Product Description
Professional-grade hydraulic floor jack designed for heavy SUVs and light trucks, combining heavy-load capacity with portable operation.
| Parameter Category | Specific Description |
|---|---|
| Model No. | YD19-007 |
| Rated Weight Capacity | 6,600LBS (3,000KGS/3Ton) with overload protection system |
| Height Parameters | Lowered: 3.74" (95mm) | Raised: 19.17" (487mm) |
| Weight & Packaging | Product: 55.66LBS (25.3kg) | Shipping: 58.3LBS (26.5kg) |
| Core Configuration |
|
- Portable 25.3kg weight (16% lighter than standard 3Ton jacks)
- 95mm minimum height fits under low-chassis vehicles without adjustment
- Compact packaging (30.5*15.15*7.08") fits in SUV trunks
- Dual-cylinder system requires only 32-35 pumps for full extension
- Frame deflection ≤0.15mm under 3Ton load
- Anti-slip saddle increases friction by 50% compared to standard models
- 487mm maximum height provides 40cm+ working clearance
- Sealed hydraulic system with double seal rings + dust cover
- Wear-resistant components show ≤0.03mm wear after 500 operations
Ideal for emergency tire changes on vehicles like Great Wall Cannon (2.3Ton) with 130mm chassis height. The 95mm low profile fits without adjustment, and 35 pumps lift to 450mm for tire clearance.
Perfect for single-technician shops servicing Wuling Rongguang Mini Trucks (1.8Ton). The quiet rollers allow easy repositioning without disturbing other work.
Handles 2.8Ton generators in outdoor conditions. The sealed hydraulics resist dust, while the stable lift maintains position during installation.
Functions at -15°C with special hydraulic oil. Lifts Ford Everest (2.5Ton) for snow tire changes with minimal effort (32 pumps to full height).
A: Not recommended. While the overload protection (3.3Ton) won't trigger, prolonged use at 3.2Ton accelerates wear and reduces lifespan from 5 years to 2 years.
A: Likely caused by:
- Clogged pressure relief valve (clean with alcohol)
- Stuck seals (activate by pumping handle 5-8 times)
- Aged hydraulic oil (replace with 46# anti-wear oil)
A: Yes, using:
- Included carrying strap (40% effort reduction)
- Ground sliding for short distances (50% easier)
- Trunk edge leverage for loading/unloading
A: Replace immediately. Temporary fix: apply 3mm anti-slip rubber pad (limit to 10 uses). Contact manufacturer for replacement saddle (50-80 yuan).
