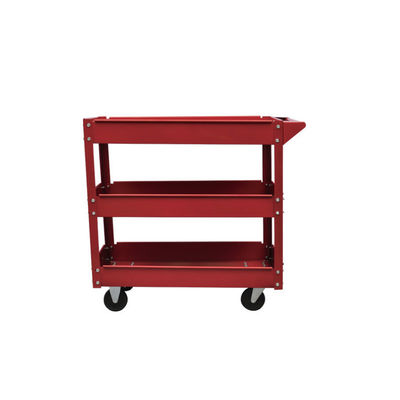

3 Shelf Tool Trolley 99kg Load 4 Wheel For Garage / Workshop / Factory
Product Details
| Overall Dimensions: | 70*35*76cm (L*W*H) | Single Shelf Dimension: | 61.5*34*65cm (L*W*Guardrail Height) |
|---|---|---|---|
| Packaging Dimensions: | 70.5*37.5*20.5cm (flat Packaging Design) | Net Weight: | 14.5kg |
| Maximum Load-Bearing: | 99kg (evenly Distributed) | Main Material: | 1.0mm Thick Cold-rolled Steel Plate |
| Highlight |
3-shelf tool trolley with wheels,heavy-duty garage tool trolley,workshop tool trolley 99kg capacity |
||
Product Description
| Parameter Category | Specific Description |
|---|---|
| Model | YD27-003 (3-Shelf Workshop Tool Trolley) |
| Product Positioning | Heavy-duty tool storage and transportation trolley designed for garage and workshop scenarios, serving auto repair shops, mechanical repair workshops, and hardware processing plants. |
| Dimension Parameters |
Overall Dimensions: 70*35*76cm (L*W*H) 3 shelves in stepped pattern (bottom: 15cm, middle: 38cm, top: 61cm from ground) Single Shelf Dimensions: 61.5*34*65cm (L*W*Guardrail Height) Packaging Dimensions: 70.5*37.5*20.5cm (flat packaging design) |
| Weight & Load-Bearing |
Net Weight: 14.5kg Maximum Load-Bearing: 99kg (evenly distributed) Each shelf rated for 33kg |
| Material & Craftsmanship |
Main Material: 1.0mm thick cold-rolled steel plate Surface Treatment: Electrostatic spraying (60μm coating thickness) |
| Core Configuration |
4-Wheel Mobile System: 3.7-inch rubber tires Convenient Push Handle: Arc-shaped steel handle (76cm height) Anti-Slip Protection: Diamond-shaped texture on shelves |
- High-strength 1.0mm cold-rolled steel main body with reinforced beam design
- 3-layer stepped shelf design for organized tool and part storage
- Bottom shelf can hold 30kg bench vice + 2*15kg part boxes
- 65% greater heavy-load adaptability than standard trolleys
- 3.7-inch rubber tires with special wear-resistant formula
- Rolling noise ≤55dB (below typical workshop noise)
- Ergonomic arc-shaped steel handle for comfortable pushing
- 70% better movement experience than hard plastic tires
- Electrostatic spraying coating resists oil and rust
- No rust after 48-hour salt spray test
- Diamond-shaped anti-slip texture on all shelves
- 95% reduction in safety accidents compared to unprotected trolleys
Ideal for transferring heavy tools (hydraulic jacks, bench vices) and bulk parts (oil filters, brake pads) in oily workshop environments. Three-layer organization increases maintenance efficiency by 60% compared to manual handling.
Perfect for carrying heavy maintenance tools (30kg bench vices, 15kg hexagon wrench sets) in dusty environments. Enables full set of tools to be transported at once, increasing maintenance efficiency by 50%.
Excellent for transferring bulk small accessories (screws, nuts) in humid environments. Can carry 15 boxes (90kg total) in one trip, increasing transfer efficiency by 80% compared to manual handling.
A1: Yes, each tire has a rated load-bearing capacity ≥30kg (total ≥120kg). The high-elastic rubber material passed 1.5x load (148.5kg) testing for 1 hour with no issues.
A2: The rubber tires (friction coefficient 0.75) provide good traction. For severe conditions, we recommend:
- Using a traction rope for assistance
- Cleaning floor passages before use
- Placing heaviest items on bottom shelf
A3: Simple assembly (about 15 minutes) with included wrench and screws. No professional tools required.
A4: For shelf sagging ≤5mm, install a steel reinforcing rod. For tire jamming, clean and lubricate wheel axles. Severely worn tires can be replaced with same model.
