Drawer Tool Cabinet: 120kg Load, 4-Drawer, Rolling for Garage/Workshop/Warehouse

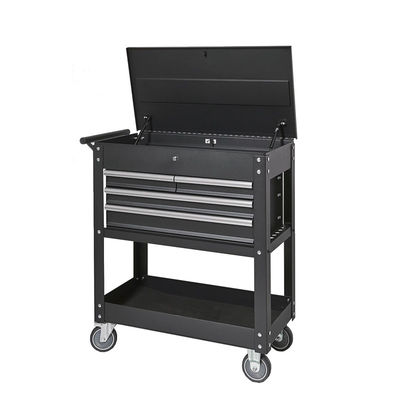

Large Image : Drawer Tool Cabinet: 120kg Load, 4-Drawer, Rolling for Garage/Workshop/Warehouse

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD27-006

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Single Drawe:	900×420×180mm (90×42×18cm)	Total Storage Volume:	27.2L
Gross Weight:	50kg	Maximum Load:	120kg Total (30kg Per Drawer)
Materials:	1.2mm Cold-rolled Steel With Electrostatic Spray Coating (70μm Thickness) 4-layer Pull-out Drawers With Galvanized Ball Slides 5-inch Rubber Wheels (2 With Brakes)
Highlight:	heavy-duty drawer tool cabinet , 4-drawer rolling tool cabinet , garage workshop tool cabinet

YD27-006 Drawer Rolling Tool Cabinet

Heavy-duty mobile storage cabinet designed for industrial tool organization with 120kg load capacity, 4-drawer system, and rolling mobility for garage, workshop, and warehouse applications.

Product Specifications

Parameter Category	Specific Description
Model	YD27-006 (Drawer Rolling Tool Cabinet)
Dimensions	920×450×980mm (92×45×98cm) Single Drawer: ~900×420×180mm (90×42×18cm) Total Storage Volume: ~27.2L
Weight & Load Capacity	Gross Weight: 50kg Maximum Load: 120kg total (30kg per drawer)
Materials	1.2mm cold-rolled steel with electrostatic spray coating (70μm thickness) 4-layer pull-out drawers with galvanized ball slides 5-inch rubber wheels (2 with brakes)

Key Features

Industrial-Grade Storage Solution: Combines heavy-duty construction with intelligent organization for professional workshop environments.

120kg Heavy-Duty Load Capacity: 1.2mm steel construction with reinforced beams supports industrial tools like 25kg socket sets and 15kg hydraulic jrenches
Optimized 4-Drawer System: Bottom layer for heavy tools, middle for precision instruments, upper for parts/consumables, top for spare tools
Mobile Workshop Storage: 5-inch rubber wheels (2 with brakes) enable smooth movement with ≤12N rolling resistance
Industrial Environment Ready: Oil-resistant coating withstands workshop chemicals and passes 72-hour salt spray test
Safety Features: Edge-folded corners, drawer locking mechanisms, and ergonomic handles

Application Scenarios

Auto Repair Shops: Stores complete tool sets (40kg+ in bottom drawer) with easy workstation-to-workstation mobility

Mechanical Workshops: Protects precision tools (vernier calipers, torque wrenches) from dust and damage

Hardware Warehouses: Centralizes tool storage in 0.41m² footprint with moisture-resistant construction

Frequently Asked Questions

Q: Can the wheels support 120kg load without failure?

A: Yes. Each wheel is rated for ≥40kg (160kg total capacity) with 15mm steel axles tested to 180kg without deformation.

Q: How to maintain drawer slides?

A: Clean rails periodically and apply lithium grease. Replace springs (1.5×20mm) if locking mechanism weakens.

Q: How to repair surface scratches?

A: Sand smooth, apply matching anti-rust paint. For deep scratches, fill with putty before painting.
