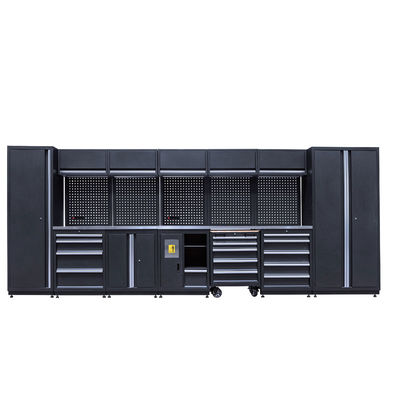

Steel Combo Cabinet: SS Top, 300kg Load, LED, Sockets for Auto Shop/Garage/Workshop

Large Image : Steel Combo Cabinet: SS Top, 300kg Load, LED, Sockets for Auto Shop/Garage/Workshop

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD27-012

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Dimensions:	4915 (W) × 480 (D) × 2000 (H) Mm (modular Design Allows For Flexible Configuration)	Weight:	Approx. 380kg (full Set), 60-80kg Per Module
Stainless Steel Countertop:	≥300kg	Drawer Cabinet::	≥25kg Per Drawer (125kg Total)
Wall Cabinet:	≥15kg Per Shelf (60kg Total)	Hanging Panel:	≥5kg Per Hook (80kg Total)
Highlight:	steel combo cabinet with SS top , 300kg load garage cabinet , LED socket workshop cabinet

Steel Combo Cabinet: SS Top, 300kg Load, LED, Sockets for Auto Shop/Garage/Workshop

Product Overview

The YD27-012 Garage Series Steel Combination Tool Cabinet with Stainless Steel Countertop is designed for centralized tool management and operation support in auto repair shops, home garages, and factory workshops. This modular system integrates tool storage, countertop operation, and power supply solutions to maximize efficiency and organization.

Key Specifications

Parameter	Details
Model	YD27-012
Dimensions	4915 (W) * 480 (D) * 2000 (H) mm (modular design allows for flexible configuration)
Weight	Approx. 380kg (full set), 60-80kg per module
Load Capacity	Stainless steel countertop: ≥300kg Drawer cabinet: ≥25kg per drawer (125kg total) Wall cabinet: ≥15kg per shelf (60kg total) Hanging panel: ≥5kg per hook (80kg total)
Materials	Cabinet: SPCC steel (1.0-1.2mm thickness) Countertop: Industrial-grade stainless steel (≥1.2mm thickness) Surface: Electrostatic powder coating (≥70μm)
Key Features	Modular design for flexible configuration Integrated LED lighting (5000K, adjustable brightness) European standard sockets (customizable) Gas spring-assisted wall cabinet doors Security locks for tool protection

Core Advantages

1. Modular Structure for Flexible Configuration

Combine modules to fit spaces from small garages to large workshops
Standard full set includes: stainless steel countertop, wall cabinet, drawer cabinets, and hanging panels
Easy assembly with snap + screw connections (2 people can install in 2 hours)
Expandable with additional side cabinets and laminates

2. Industrial-Grade Durability

Welded steel construction with reinforcing ribs for structural integrity
Oil-resistant stainless steel countertop (easy to clean)
Electrostatic powder coating resists corrosion and wear
Ball slide drawers (≤8N pull resistance) for smooth operation

3. Enhanced Functionality

Integrated LED lighting for workspace illumination
Built-in sockets for power tool operation
Gas spring-assisted wall cabinet doors (10,000+ cycle lifespan)
Standard hook holes compatible with most commercial hooks

Application Scenarios

Auto Repair Shops

Store full set of auto repair tools (wrenches, hydraulic equipment, electric tools)
Sturdy countertop supports engine components (up to 300kg)
Integrated power supply for electric tools
Security locks prevent tool loss

Home Garages

Compact configurations for space efficiency
Organize household tools and gardening equipment
Support light maintenance operations (tire changes, part repairs)

Factory Workshops

Dust-resistant design for industrial environments
Store heavy maintenance tools and small equipment
Shared workstations with security lock management

Frequently Asked Questions

Q: Is professional installation required?

A: The cabinet can be installed by 2-3 people using basic tools. Modules are designed for easy handling (60-80kg each). Professional installation service is available if needed.

Q: How to clean the stainless steel countertop?

A: Wipe with a rag (or mild detergent) for routine cleaning. Use stainless steel maintenance agent monthly to preserve finish. Avoid steel wool or strong acids.

Q: Can socket standards be customized?

A: Yes, national standard (Type A) or American standard (Type B) sockets can be customized with 3-5 day lead time extension.

Q: What if LED lights or gas springs need adjustment?

A: LED brightness is adjustable via side button. For gas springs, clean and lubricate with silicone-based grease. Damaged components can be replaced under warranty.
