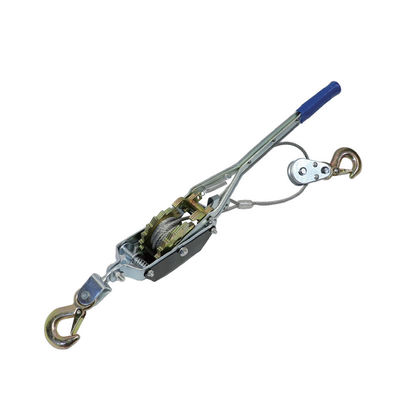

YD30-001 2-Ton Capacity Cable Puller
Industrial-grade cable puller designed for heavy lifting and traction in construction, equipment installation, auto repair, and warehouse handling. Features 2000kg load capacity, freewheel mechanism, and anti-slip grip for safe, efficient operation in confined spaces.
Product Specifications
Core Parameters
| Parameter Category |
Specific Description |
| Product Model |
YD30-001 (2-Ton Capacity Cable Puller) |
| Dimension & Weight |
- Net Weight: 3kg (6.6LB), Gross Weight: 3.5kg (7.7LB)
- Package Dimensions: 23.6*8.66*10.24 inches (600*220*240mm)
- Steel Cable: Diameter ≥6mm, length ≥3m (custom lengths available)
|
| Load & Performance |
- Rated Load: 4,000LB (2,000kg) vertical/horizontal capacity
- Precision Control: Single-tooth adjustment with ≤5mm increments
- Free Spooling Speed: 1m/10s with freewheel engaged
|
| Materials |
- Heavy-duty steel plate (≥3mm) with zinc-plated surface
- Drop-forged steel hook (HRC 35-40 hardness)
- Oil-resistant rubber grip (-20℃ to 60℃ range)
|
General Adaptability
| General Parameter |
Specific Description |
| Scenario Adaptation |
- Vertical lifting: Equipment parts, construction materials
- Horizontal traction: Vehicles, machine positioning
- Compatible with M10-M20 lifting rings and D-type shackles
|
| Environment |
- Temperature range: -20℃ to 60℃
- Humidity ≤90%, dust concentration ≤10mg/m³
- Overload protection at 2500kg (automatic lock)
|
Key Features
Precise Load Control & Safety
- Single-tooth adjustment: ≤5mm precision movement prevents sudden drops
- Overload protection: Automatically locks at 2500kg to prevent damage
Efficient Operation
- Freewheel mechanism: Quick cable release at 1m/10s speed
- Ergonomic design: 3kg weight with anti-slip rubber grip
Durable Construction
- Triple steel plate pawl: 50% more wear resistant than standard designs
- Zinc-plated finish: Withstands 48-hour salt spray test
Application Scenarios
Auto Repair Shops
Ideal for pulling trapped vehicles (up to 1500kg) and precise positioning. The freewheel feature allows quick cable deployment, while single-tooth adjustment enables millimeter-level control.
Construction Sites
Perfect for lifting materials (up to 200kg) at heights. Zinc-plated components resist rust in outdoor conditions, and the anti-drop mechanism ensures safety.
Factory Workshops
Enables precise machine tool positioning (deviation ≤5mm) in confined spaces without large equipment.
Frequently Asked Questions
Q: Can it handle 2500kg loads?
A: The overload protection will engage at 2500kg. Continuous overload use reduces cable strength and component lifespan.
Q: Is the freewheel safe?
A: Yes, the cable releases at controlled speeds (≤0.2m/s) with manual operation required. The switch has a locking mechanism.
Q: How to maintain rust prevention?
A: Wipe dry after use, apply lithium grease monthly. For rust spots ≤1cm², use zinc-based repair spray.
Q: Handle feels stuck - what to do?
A: Clean debris, lubricate with lithium grease. If persists, contact service - do not force operation.
