Cable Puller: 4.8T Load, 4-in-1 Func, 15:1 Ratio for Farm/Camping/Workshop

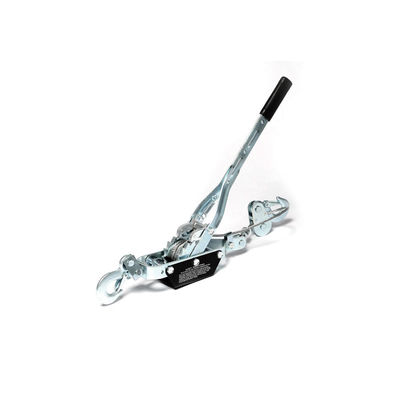

Large Image : Cable Puller: 4.8T Load, 4-in-1 Func, 15:1 Ratio for Farm/Camping/Workshop

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD30-003

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Net Weight:	18kg, Gross Weight: 20kg	Package Dimension:	605×315×180mm
Steel Cable:	Diameter ≥9mm, Length ≥5m (customizable To 8m/10m)	Operating Handle:	Length ≥400mm, Grip Diameter ≥38mm
Rated Load:	4.8 Tons (4800kg)	Traction Force:	6.8KN (≈694kg)
Highlight:	4.8T load cable puller , 4-in-1 function cable puller , 15:1 ratio cable puller for farm

YD30-003 Multi-Purpose Cable Puller: 4.8T Load, 4-in-1 Functionality, 15:1 Ratio

Product Specifications

Core Parameters

Parameter Category	Specific Description
Product Model	YD30-003 (Multi-Purpose Cable Puller)
Product Positioning	Designed for full-scenario lifting and traction applications in agricultural breeding, outdoor camping, industrial maintenance, and logistics transportation. Integrates four functions: lifting, lowering, pulling, and tensioning.
Dimension & Weight	Net Weight: 18kg, Gross Weight: 20kg Package Dimension: 605315180mm Steel Cable: Diameter ≥9mm, length ≥5m (customizable to 8m/10m) Operating Handle: Length ≥400mm, grip diameter ≥38mm
Load & Performance	Rated Load: 4.8 tons (4800kg) Traction Force: 6.8KN (≈694kg) Transmission Ratio: 15:1 (40% more labor-saving than standard pullers) Braking System: Double Ratchet Wheel with ≤0.5s response time
Materials & Construction	Main Material: 4.5mm Q235 steel plate with electrostatic spray coating Hook: 40Cr drop-forged steel, impact-resistant to 1200kg Steel Cable: 6*19S+FC structure with fiber core

General Adaptability

Parameter	Description
Functions	Lifting: 4.8-ton capacity for equipment installation Traction: Vehicle recovery and equipment positioning Tensioning: Fence wires, tent ropes, cables Lowering: Precision control with ≤4mm increments
Environmental Range	-25℃ to 75℃ operation temperature

Product Features

Four Integrated Functions

Lifting + Lowering

Double ratchet wheel braking system with 15:1 transmission ratio enables precise control. Example: 3-ton motor can be positioned with ≤5mm deviation during installation.

Traction + Tensioning

6.8KN traction force can rescue 3.5-ton vehicles in 10 minutes. Tensioning function improves fence construction efficiency by 3x compared to manual methods.

Labor-Saving Design

15:1 transmission ratio reduces required operating force to 320N (≈32.6kg)
400mm ergonomic handle with anti-slip grip reduces palm fatigue by 85% during extended use

Durable Construction

4.5mm Q235 steel frame with 3 reinforcing ribs maintains ≤2mm deformation under full load
Electrostatic spray coating + galvanized steel cable provide double corrosion protection
Service life exceeds standard pullers by 2 years in outdoor conditions

Application Scenarios

1. Agricultural Machinery Rescue

Rescue 3.2-ton trapped tractors and handle 4-ton grain dryers in farm environments. Portable design allows operation by 2 people without large equipment.

Result: 80% efficiency improvement over traditional methods

2. Outdoor Camping & Fence Construction

Tension tent ropes to withstand level-5 winds and fence wires for 90% improved flatness. 20kg weight fits easily in vehicle trunks.

Result: Tent setup time reduced from 2 hours to 40 minutes

3. Factory Equipment Installation

Precisely position 4.5-ton CNC machines with ≤3mm deviation in confined spaces. Eliminates need for overhead cranes.

Result: 95% installation efficiency increase with 0.3% deviation rate

Frequently Asked Questions

Q1: Can one person really operate the 4.8-ton capacity?

A1: Yes. The 15:1 ratio reduces required force to 32.6kg. Tests show 60kg adults can operate continuously without fatigue.

Q2: How does the double ratchet braking prevent slipping?

A2: Dual ratchets engage in both directions with ≤4mm precision. Immediate locking prevents accidental load movement.

Q3: How to maintain the steel cable after outdoor use?

A3: Clean with water/neutral detergent, dry thoroughly. Apply lithium grease every 3 months (monthly for heavy use).

Q4: What are the requirements for custom 8m cable?

A4: No minimum order. 3-5 day delay. Same 28KN breaking force. Optional stainless steel available.
