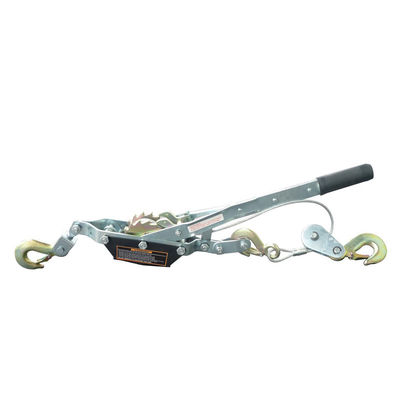

Cable Puller: 5T Load, 15:1 Ratio, Double Safety for Auto Shop/Farm/Construction

Large Image : Cable Puller: 5T Load, 15:1 Ratio, Double Safety for Auto Shop/Farm/Construction

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD30-004

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Weight:	20kg (Net), 22kg (Gross)	Package Dimension:	700×280×210mm
Steel Cable:	Diameter ≥10mm, Length ≥6m (customizable)	Operating Handle:	Length ≥420mm, Ergonomic Design
Rated Load:	5 Tons (5000kg)	Traction Force:	7.85KN (approx. 801kg)
Highlight:	5T cable puller for auto shop , 15:1 ratio cable puller , double safety cable puller for construction

YD30-004 5-Ton Multi-Purpose Cable Puller

Product Specifications

Core Parameters

Parameter Category	Specific Description
Product Model	YD30-004 (5-Ton Multi-Purpose Cable Puller)
Product Positioning	Designed for medium-to-heavy lifting and traction across multiple scenarios including industrial maintenance, logistics, agriculture, and outdoor engineering. Integrates four functions: lifting, lowering, pulling, and tensioning.
Dimension & Weight	Weight: 20kg (Net), 22kg (Gross) Package Dimension: 700280210mm Steel Cable: Diameter ≥10mm, length ≥6m (customizable) Operating Handle: Length ≥420mm, ergonomic design
Load & Performance	Rated Load: 5 tons (5000kg) Traction Force: 7.85KN (approx. 801kg) Transmission Ratio: 15:1 (65% more efficient than standard pullers) Braking System: Double Ratchet Wheel with ≤0.3s response time
Materials & Construction	Main Material: Q345 steel plate (5mm thickness) Surface Treatment: Electrostatic spray coating + galvanization Hook: 45# drop-forged steel with HRC 38-42 hardness Steel Cable: 6*37S+FC structure with excellent flexibility

General Adaptability

General Parameter	Specific Description
Scenario & Function	Lifting: Up to 5-ton equipment and materials Traction: For vehicles and equipment positioning Tensioning: Heavy fence wires and industrial cables Lowering: Precision control with ≤3mm increments
Environmental Adaptation	Operates in -30℃ to 80℃ range with no performance degradation

Key Features

Double-Safety Design

Double Ratchet Braking: Two-way ratchet wheels engage with pawls for instant locking (≤0.3s) even if handle is released
Overload Protection: Automatically disengages at 6000kg (20% over rated load) to prevent damage
Double-Safety Hook: Pin + latch design prevents disengagement even during violent shaking

Multi-Function Efficiency

Combines lifting, lowering, traction, and tensioning in one tool
15:1 transmission ratio reduces operating force to ~34kg (one-person operation)
Extended ergonomic handle reduces fatigue during prolonged use

Durable Construction

5mm-thick Q345 steel frame with 4 reinforcing ribs
Double anti-corrosion protection (spray coating + galvanization)
Drop-forged hook withstands 1500kg lateral impact

Application Scenarios

Heavy Auto Repair Shops

Rescue 4.5-ton trapped vehicles in 10 minutes
Precise positioning of 5-ton equipment with ≤3mm deviation
90% more efficient than traditional hydraulic jack + cart method

Farm Operations

Handle 3.8-ton agricultural machinery
Tension 200-meter heavy fences with 7.85KN force
85% more efficient than manual methods

Construction Sites

Lift 4-ton steel structures to 10-meter heights
Precise installation with ≤5mm alignment accuracy
80% more efficient than traditional methods

Frequently Asked Questions

Q1: Can one person really operate this with a 5-ton load?

Yes. The 15:1 transmission ratio reduces the operating force to approximately 34kg (equivalent to lifting a 34kg bucket), making it manageable for one person.

Q2: How does it perform in low temperatures (-30℃)?

The braking system uses special materials that maintain full functionality in extreme cold, with no performance degradation.

Q3: Can I customize a longer steel cable?

Yes, 12m cables are available with no minimum order. Custom lengths maintain the same load performance but may require additional production time.

Q4: How do I know when to replace the steel cable?

Replace when there are ≥6 broken wires in one lay length or diameter wears to ≤9mm. Replacement takes about 30 minutes without special tools.
