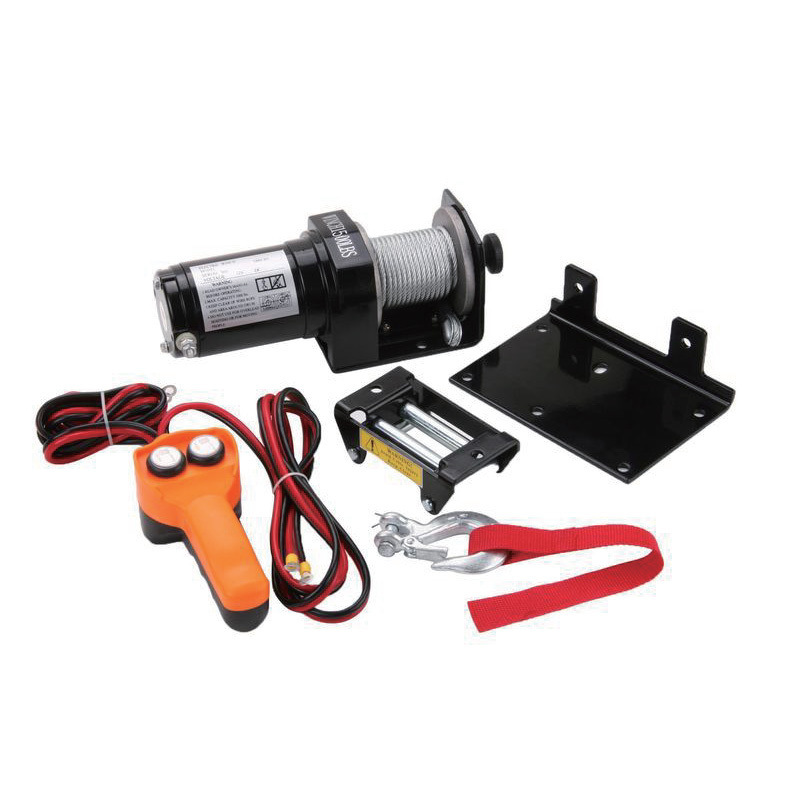

12V Winch: 1500LBS Pull, Auto Brake for ATV Rescue/Camping/Farm

12V Winch: 1500LBS Pull, Auto Brake for ATV Rescue/Camping/Farm
12V Winch: 1500LBS Pull, Auto Brake for ATV Rescue/Camping/Farm

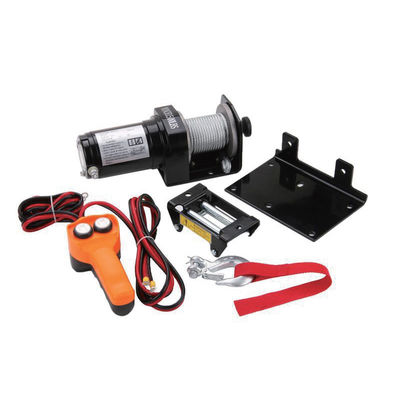

Large Image :  12V Winch: 1500LBS Pull, Auto Brake for ATV Rescue/Camping/Farm

Product Details:
Place of Origin: Zhejiang，China
Brand Name: YEEDA
Certification: CE
Model Number: YD30-005
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: Carton Box or Crate
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: 500PCS/MONTH
Contact Now
Detailed Product Description
Weight: 7kg (Net), 9kg (Gross) Package Size: 355×265×170mm
Overall Dimensions: 286×100×105mm Drum Size: 31.5mm Diameter × 72mm Length
Mounting Hole: 76mm Spacing, 8.5mm Diameter Rated Pull Force: 1500LBS (680kg)
Highlight:

12V winch with auto brake

,

1500LBS ATV winch

,

12V winch for camping

12V Winch: 1500LBS Pull, Auto Brake for ATV Rescue/Camping/Farm
Product Specifications
Core Parameters
Parameter Category Specific Description
Product Model YD30-005 (12V 1500LBS Mini ATV Electric Winch)
Product Positioning Designed for small off-road equipment and light traction scenarios, serving ATV rescue, outdoor camping, small agricultural machinery, and heavy object movement. Suitable for traction and lifting up to 680kg.
Dimension & Weight
  • Weight: 7kg (Net), 9kg (Gross)
  • Package Size: 355*265*170mm
  • Overall Dimensions: 286*100*105mm
  • Drum Size: 31.5mm diameter * 72mm length
  • Mounting Hole: 76mm spacing, 8.5mm diameter
Load & Performance
  • Rated Pull Force: 1500LBS (680kg)
  • Motor: 0.5kw permanent magnet, ≤45A current
  • Gear Reduction: 190:1 ratio
  • Braking System: Automatic in-drum brake
  • Cable: 4mm * 7.6m galvanized steel
Materials
  • Aluminum alloy shell with steel internal gears
  • IP54 rated motor protection
  • Galvanized high-carbon steel cable
General Adaptability
Parameter Description
Scenario Adaptation Compatible with 12V ATVs, UTVs, and small off-road vehicles. Suitable for traction up to 680kg and lifting up to 300kg.
Power Requirements 12V DC power (vehicle battery or portable lithium). Minimum working voltage ≥10.5V.
Environmental Range Operating temperature: -20℃ to 60℃
Key Features
Efficient Power System
  • Low-consumption motor: 0.5kw permanent magnet motor reduces current by 30% compared to traditional models
  • High torque output: 190:1 planetary gear ratio provides stable 680kg pull capacity
  • Weather resistant: IP54 rated motor withstands rain and dust
Safety Features
  • Automatic braking: Locks instantly when power is cut
  • Durable construction: Aluminum alloy shell and galvanized steel cable resist corrosion
  • Safety accessories: Includes 15A fuse and anti-drop hook
Easy Installation & Operation
  • Quick setup: Standard 76mm hole spacing fits most ATV brackets
  • Simple controls: Wired handle with 3m cable for safe operation
  • Compact size: 286*100*105mm dimensions for easy mounting
12V Winch: 1500LBS Pull, Auto Brake for ATV Rescue/Camping/Farm 0
Application Scenarios
ATV Rescue Operation
  • Quickly install on ATV bumper using included hardware
  • Connect to 12V battery and attach cable to fixed object
  • Pull trapped vehicle (up to 680kg) in seconds
Camping Equipment Handling
  • Move 300kg camping trailers with portable 12V battery
  • Lift tent components up to 2.5m height
  • Compact 7kg design for easy transport
Farm & Yard Use
  • Move 200-300kg objects like stone pots or irrigation equipment
  • Operates on various surfaces including concrete and dirt
  • One-person operation reduces labor requirements
Frequently Asked Questions
Q: Can it actually pull a 120kg ATV trapped in mud?
A: Yes, easily. The resistance is typically 180-240kg (1.5-2x vehicle weight), well below the 680kg rated capacity. The motor has overload protection that activates at 816kg.
Q: Is it safe to use in rainy weather?
A: Yes. The IP54 rated motor is protected against water and dust. However, avoid complete submersion.
Q: What if my bracket doesn't have 76mm hole spacing?
A: You can drill new holes (8.5mm diameter) in suitable brackets, or purchase a universal mounting adapter.
Q: How do I maintain the steel cable?
A: Clean monthly and apply special cable grease. For rust, use fine sandpaper (1000+ grit). Replace if ≥3 wires are broken.
