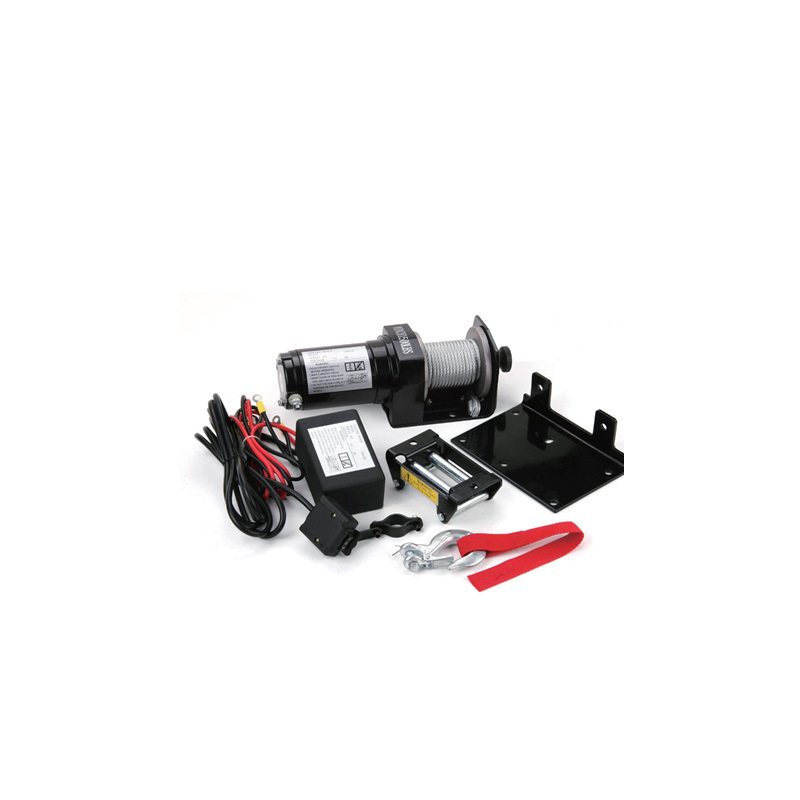

12V Winch: 2000LBS Pull, 9.2m Cable for ATV Rescue/Camping/Farm
Product Details
| Weight:: | Net 7kg, Gross 8kg | Package Dimension: | 355×265×170mm |
|---|---|---|---|
| Overall Dimension: | 286×100×105mm | Drum Dimension: | 31.5mm Diameter × 72mm Length |
| Mounting Hole: | 76mm Spacing, 8.5mm Diameter | Load & Performance: | Rated Line Pull: 2000LBS (907kg) Motor: 0.7kw Permanent Magnet, ≤55A Current Gear Reduction Ratio: 190:1 Steel Cable: 4mm × 9.2m (30ft), Breaking Force ≥3500N |
| Highlight |
12V winch for ATV rescue,2000LBS pull winch with cable,12V winch for camping farm |
||
Product Description
| Parameter Category | Specific Description |
|---|---|
| Product Model | YD30-006 (12V 2000LBS Mini ATV Electric Winch) |
| Product Positioning | Designed for small-to-medium off-road equipment and medium-light traction scenarios, serving fields such as ATV rescue, outdoor camping trailer handling, small agricultural machinery traction, and courtyard heavy object movement. |
| Dimension & Weight |
|
| Load & Performance |
|
| Material & Craftsmanship |
|
| General Parameter | Specific Description |
|---|---|
| Scenario & Equipment |
|
- 0.7kw permanent magnet motor with 25% higher pull force than comparable models
- 190:1 planetary gear reduction for stable traction under heavy loads
- Maintains motor temperature below safety threshold during continuous operation
- In-drum automatic braking system locks instantly when power is cut
- Built-in 20A fuse for circuit protection
- Rugged aluminum alloy shell and carburized alloy gears
- IP54 rated motor protection against dust and water
- Standard 76mm hole spacing compatible with most ATV bumpers
- Complete installation possible in 15 minutes with included instructions
- 9.2m steel cable allows longer traction distances
- 3m wired control handle for safe operation
- Quickly pull trapped ATVs (up to 180kg + equipment) from mud or sand
- Reduces rescue time from 40 minutes to 3 minutes
- Operates on vehicle's 12V battery
- Move 600kg camping trailers across sloped terrain
- Lift 400kg of supplies to elevated platforms
- Works with portable 12V lithium batteries
- Pull 800kg small irrigation machines across fields
- Move 700kg stone sculptures in confined spaces
- Eliminates need for multi-person manual handling
Yes, it can pull safely with no motor overload risk. The motor has built-in overload protection that automatically stops operation if pull force exceeds 10% of rated value. In tests, pulling an 800kg truck results in 50A current (below the 55A maximum).
- Align winch centerline with traction direction (≤5° deviation)
- Use included guide pulleys to maintain straight cable path
- Apply buffer foam to potential contact points if needed
- Wipe with dry cloth every 2 months
- Apply lithium-based grease (avoid engine oil)
- Polish slight rust with 1000-grit sandpaper
- Replace when broken wires reach ≥3
- Preheat motor by idling for 1-2 seconds before loading
- Check braking system flexibility before use
- Use low-temperature grease on braking mechanism
- Ensure battery is ≥80% charged
