12V Winch: 3000LBS Pull, 20m Wireless Ctrl for ATV Rescue/Camping/Farm

12V Winch: 3000LBS Pull, 20m Wireless Ctrl for ATV Rescue/Camping/Farm
12V Winch: 3000LBS Pull, 20m Wireless Ctrl for ATV Rescue/Camping/Farm

Large Image :  12V Winch: 3000LBS Pull, 20m Wireless Ctrl for ATV Rescue/Camping/Farm

Product Details:
Place of Origin: Zhejiang，China
Brand Name: YEEDA
Certification: CE
Model Number: YD30-007
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: Carton Box or Crate
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: 500PCS/MONTH
Contact Now
Detailed Product Description
Net Weight: 8kg, Gross Weight: 9kg Package Dimension: 355×265×170mm
Overall Dimension: 11.8×4×4.1 Inches (299×100×105mm) Drum Dimension: Diameter 1.24 Inches (31.5mm) × Length 2.8 Inches (72mm)
Mounting Hole: Bolt Hole Spacing 76mm, Hole Diameter 8.5mm Rated Line Pull: 3000LBS (1361kg, Single Line)
Highlight:

12V winch with wireless control

,

3000LBS ATV winch for rescue

,

20m wireless winch for camping

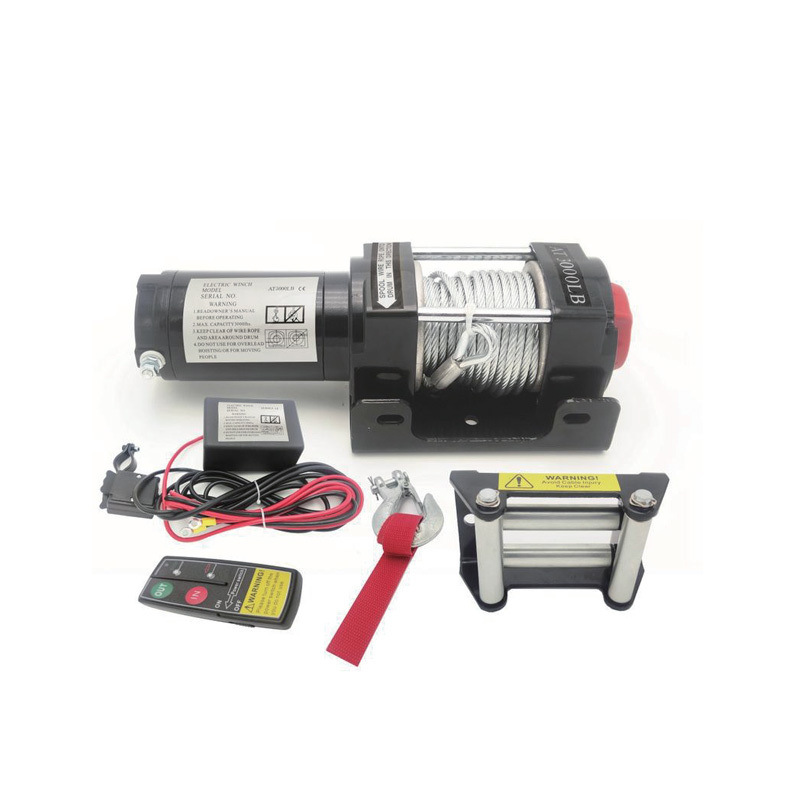

YD30-007 12V 3000LBS Wireless Remote ATV Electric Winch
Product Specifications
Parameter Category Specific Description
Product Model YD30-007 (12V 3000LBS Wireless Remote ATV Electric Winch)
Product Positioning Designed for medium-heavy off-road traction and outdoor rescue scenarios, suitable for ATV/UTV rescue, camping trailer handling, small construction machinery traction, and farm heavy object movement. Capable of traction and lifting of heavy objects within 1361kg.
Dimension & Weight
  • Net Weight: 8kg, Gross Weight: 9kg
  • Package Dimension: 355*265*170mm
  • Overall Dimension: 11.8*4*4.1 inches (299*100*105mm)
  • Drum Dimension: Diameter 1.24 inches (31.5mm) * Length 2.8 inches (72mm)
  • Mounting Hole: Bolt hole spacing 76mm, hole diameter 8.5mm
Load & Performance
  • Rated Line Pull: 3000LBS (1361kg, single line)
  • Motor: 1.1kw (1.4hp) permanent magnet motor
  • Gear Reduction Ratio: 190:1 planetary gear transmission
  • Steel Cable: 4.8mm * 10.5m galvanized high-carbon steel
  • Remote Control: Wireless range ≥20m with 360° coverage
Material & Craftsmanship
  • High-strength aluminum alloy shell with 20CrNiMo alloy gears
  • IP55 protection rated motor
  • Hot-dip galvanized steel cable with ≥10μm zinc layer
Key Features
Heavy-Load Power System
  • 1.1kw High-Power Motor: 50% higher pull force than comparable models with no overload risk during continuous operation
  • 190:1 Planetary Gear Reduction: Provides stable transmission without jitter even at maximum load
Wireless Convenience & Safety
  • 20m Wireless Remote: 360° dead-angle-free control with rechargeable lithium batteries
  • Triple Safety Protection: In-drum automatic braking, circuit overload protection, and steel cable anti-drop design
Durable Construction
  • All-Scenario Durability: Aluminum alloy shell withstands impacts while alloy gears provide extended service life
  • Easy Installation: Standard 76mm hole spacing compatible with most ATV/UTV bumpers
Application Scenarios
ATV/UTV Outdoor Rescue

Quickly rescue trapped 250kg ATVs with 100kg equipment in sand/mud conditions. Wireless operation allows safe distance control.

Camping Trailer Handling

Move 1000kg camping trailers up 15° slopes with precise positioning control. Automatic braking prevents sliding.

Farm & Construction Use

Pull 1200kg agricultural machinery or lift 600kg construction materials with stable, controlled operation.

Frequently Asked Questions
Q: Can it actually pull a 1200kg small truck without motor overload?

A: Yes, with built-in overload protection that automatically shuts down if pull force exceeds safety margins. The motor is designed for continuous heavy-load operation.

Q: What if wireless signal is interrupted by obstacles?

A: Includes 3m wired backup control. The 2.4GHz wireless maintains signal through 1-2 obstacles at 15m range.

Q: How to maintain the steel cable?

A: Monthly cleaning and application of lithium-based grease. For tangling, fully release and rewind while guiding cable evenly.

Q: Any special considerations for winter use?

A: Preheat motor at -20℃ or below. Keep remote batteries warm and use low-temperature grease on braking system.
