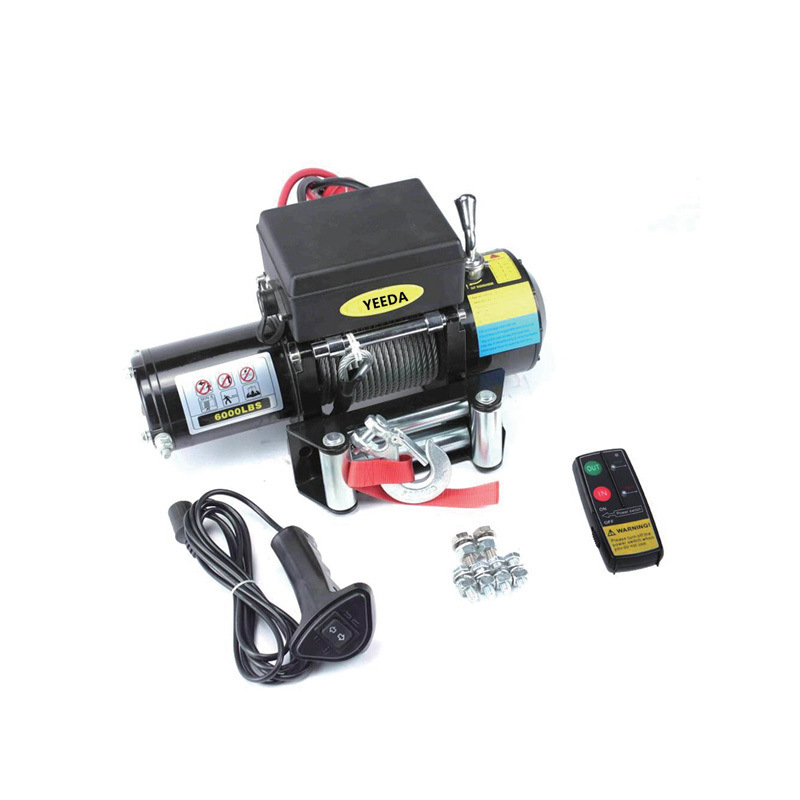

12V Winch: 6000LBS Pull, 20m Cable for SUV Rescue/Construction/Warehouse

12V Winch: 6000LBS Pull, 20m Cable for SUV Rescue/Construction/Warehouse
12V Winch: 6000LBS Pull, 20m Cable for SUV Rescue/Construction/Warehouse

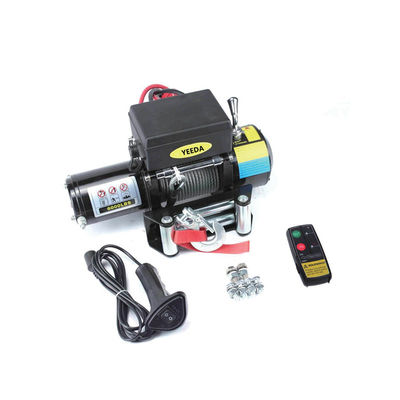

Large Image :  12V Winch: 6000LBS Pull, 20m Cable for SUV Rescue/Construction/Warehouse

Product Details:
Place of Origin: Zhejiang，China
Brand Name: YEEDA
Certification: CE
Model Number: YD30-008
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: Carton Box or Crate
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: 500PCS/MONTH
Contact Now
Detailed Product Description
Weight:: Net 31kg, Gross 33kg Package Dimension: 610×350×270mm
Overall Dimension:: 415×160×217mm Drum Dimension:: 64mm Diameter × 133.5mm Length
Mounting Hole: 165mm×114mm Spacing, 11mm Diameter Rated Line Pull: 6000LBS (2722kg)
Highlight:

12V winch for SUV rescue

,

6000LBS pull winch with 20m cable

,

12V winch for construction warehouse

12V Winch: 6000LBS Pull, 20m Cable for SUV Rescue/Construction/Warehouse
Product Specifications
Core Parameters
Parameter Category Specific Description
Product Model YD30-008 (12V 6000LBS Car Electric Winch)
Product Positioning Designed for medium-heavy vehicle rescue and industrial-grade traction scenarios, serving fields including SUV/off-road vehicle rescue, small truck traction, engineering vehicle movement, and warehouse heavy object handling.
Dimension & Weight
  • Weight: Net 31kg, Gross 33kg
  • Package Dimension: 610*350*270mm
  • Overall Dimension: 415*160*217mm
  • Drum Dimension: 64mm diameter * 133.5mm length
  • Mounting Hole: 165mm*114mm spacing, 11mm diameter
Load & Performance
  • Rated Line Pull: 6000LBS (2722kg)
  • Motor: 2.0kw permanent magnet, ≤120A working current
  • Gear Reduction: 191:1 3-stage planetary gear
  • Braking System: Automatic In-The-Drum braking (0.08s response)
  • Steel Cable: 6.4mm*20m, breaking force ≥12000N
Material & Craftsmanship
  • Main Frame: Q355 steel plate (≥8mm thickness)
  • Motor: IP67 protection rating
  • Steel Cable: Hot-dip galvanized high-carbon steel
  • Included Accessories: Power cable, remote switch, manual rocker, mounting kit
General Adaptability
Parameter Description
Scenario Adaptation SUV/off-road vehicles, small trucks, pickup trucks, construction equipment
Environmental Adaptation Working temperature range: -35℃ to 75℃
Control Adaptation 3m wired remote control + emergency manual control
Product Highlights
Heavy-Load Power System
  • 2.0kw High-Power Motor: 82% more powerful than standard models with 6000LBS (2722kg) pull force
  • 191:1 3-Stage Planetary Gear: Stable transmission even under maximum load (1.2m/min speed)
Multiple Safety Protections
  • In-Drum Automatic Braking: Locks within 0.08 seconds after power-off
  • Circuit Protection: 30A fuse and overcurrent protection
  • IP67 Protection: Waterproof, dustproof, and sandproof for all environments
Easy Installation & Operation
  • Standard Mounting: 165mm*114mm hole spacing fits most vehicles
  • Dual Control: 3m wired remote + emergency manual rocker
  • Quick Setup: Installation and debugging in 30 minutes
Application Scenarios
SUV/Off-Road Vehicle Rescue
  • Pulls 2500kg vehicles from mud/snow in 8 minutes
  • Operators remain in safe area during rescue
  • Works in extreme temperatures (-35℃ to 75℃)
Construction Site Equipment Movement
  • Pulls 1800kg loaders in narrow passages
  • Dustproof design for construction environments
  • Precise positioning with stable speed control
Warehouse Heavy Cargo Handling
  • Moves 2000kg shelves in narrow spaces
  • Works with 12V industrial lithium batteries
  • Reduces manual labor and injury risks
Frequently Asked Questions
Q1: Can it actually pull a 2000kg small truck without overload?

A1: Yes, with safety margin. The 2722kg rated pull exceeds typical 2000kg truck resistance (2400-2600kg). The motor has overload protection and won't exceed 2994kg pull force.

Q2: Is it safe for wading scenarios?

A2: IP67 protection allows brief immersion (1m depth for 30 minutes). Rinse after use to prevent sand accumulation.

Q3: How to maintain the steel cable?

A3: Clean every 2 weeks, apply lithium grease. Check for broken wires monthly. Replace if ≥8 broken wires or diameter wears to ≤5.76mm.

Q4: How to use in low temperatures (-35℃)?

A4: Preheat motor by idling 20 seconds. Use low-temperature grease for braking system. Pre-heat batteries before operation.

12V Winch: 6000LBS Pull, 20m Cable for SUV Rescue/Construction/Warehouse 0
