12V Boat Winch: 3500LBS Pull, 36Ft Cable for Vessel Hauling/Anchoring/Dock

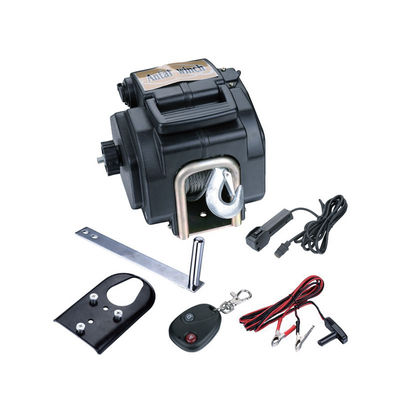

Large Image : 12V Boat Winch: 3500LBS Pull, 36Ft Cable for Vessel Hauling/Anchoring/Dock

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD30-011

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Net Weight::	40LBS (18.1kg)	Mounting Plate:	222mm × 126mm × 4.8mm
Main Hook::	15.9mm × 108mm	Pulley Hook:	15.9mm × 194mm
Load Capacity::	11,000LBS (Rolling), 9,900LBS (Marine), 3,500LBS (Pulling)	Line Speed:	8Ft Per Minute
Highlight:	12V boat winch 3500LBS pull , marine winch 36ft cable , boat winch for vessel anchoring

YD30-011 12V 3500LBS Boat Electric Winch

Professional-grade marine winch designed for vessel hauling, anchoring, and dock operations with 3500LBS pulling capacity and 36Ft galvanized steel cable.

Product Specifications

Core Parameters

Parameter Category	Specific Description
Product Model	YD30-011 (12V 3500LBS Boat Electric Winch)
Product Positioning	Designed for ship mooring and marine operations, serving small/medium vessels (speedboats, fishing boats, yachts) with multi-scenario load adaptation (1588kg pulling, 4491kg marine use, 4990kg rolling).
Dimension & Weight	Net Weight: 40LBS (18.1kg) Mounting Plate: 222mm * 126mm * 4.8mm Main Hook: 15.9mm * 108mm Pulley Hook: 15.9mm * 194mm
Load & Performance	Load Capacity: 11,000LBS (Rolling), 9,900LBS (Marine), 3,500LBS (Pulling) 12V DC input (10.5V-13.5V range) Cable Lengths: Battery 10Ft, Remote 10Ft, Steel 36Ft Line Speed: 8Ft per minute
Material & Craftsmanship	316 stainless steel shell + galvanized steel bracket IP67 sealed marine motor Hot-dip galvanized high-carbon steel cable 45# forged steel hooks with chrome plating

General Adaptability

General Parameter	Specific Description
Scenario & Equipment Adaptation	Vessels ≤15m length and ≤4.5 tons weight Operating temperature: -20℃ to 60℃ Salt spray, humid, and rainy environment resistant

Product Highlights

Marine-Grade Corrosion Resistance

316 stainless steel shell with molybdenum content for superior seawater resistance
IP67 sealed motor withstands 1m water immersion for 30 minutes
Galvanized components pass 120-hour salt spray test

Multi-Scenario Load Adaptation

Rolling Load: 11,000LBS for vessel movement on slides
Marine Load: 9,900LBS for anchoring and floating object hauling
Pulling Load: 3,500LBS for dock cargo handling

Convenient Operation Features

10Ft waterproof remote control for safe operation
36Ft galvanized steel cable for extended reach
Spring buckle hooks for secure attachment
Standard mounting plate for easy installation

Application Scenarios

Hauling Vessels Ashore

Reduces crew requirement from 4 to 1 person
Cuts operation time from 40 minutes to 10 minutes
316 stainless steel construction prevents rust in marine environments

Speedboat Anchoring

Reduces anchoring time by 50% compared to manual cranking
IP67 protection ensures operation in wet conditions
Simple freshwater rinse maintenance

Dock Cargo Handling

Eliminates need for multi-person handling
Prevents cargo loss during transfer
Operates continuously in humid environments

Frequently Asked Questions

Q1: Can the winch safely pull 1500kg of catch?

A1: Yes, 1500kg is below the 1588kg rated pulling capacity. The motor includes overload protection that automatically stops operation if load exceeds 120% of rated value.

Q2: How to maintain the winch in seawater environments?

A2: Rinse with fresh water after each use. Apply marine grease monthly to steel cable and anti-rust oil to moving parts.

Q3: Can the remote control distance be extended?

A3: Yes, via waterproof extension cables (up to 10m) or wireless modification kits (up to 20m range).

Q4: How to operate in low temperatures (-20℃)?

A4: Let motor idle for 10 seconds to preheat. Ensure battery power ≥80%. Consider reducing line speed temporarily.
