Series Hand Winch: 250-1600kg Load, 2way for Camping/Backyard/Dock

Large Image : Series Hand Winch: 250-1600kg Load, 2way for Camping/Backyard/Dock

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD30-012A-001-011

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Gear System:	20CrMnTi Alloy Gears With HRC 58-62 Hardness	Surface Treatment:	Black Electrostatic Coating Or Zinc Plated Finish
Braking System::	Manual Brake With Automatic Load Locking	Strap Material::	High-strength Polyester Fiber With PVC Coating
Installation & Adaptation:	Fixed Installation (4 M8 Mounting Holes) Or Handheld Use Ergonomic Handle Design With 150-200mm Length ≥50mm Strap Movement Per Handle Shake
Highlight:	hand winch for camping , 1600kg load hand winch , 2-way hand winch for dock

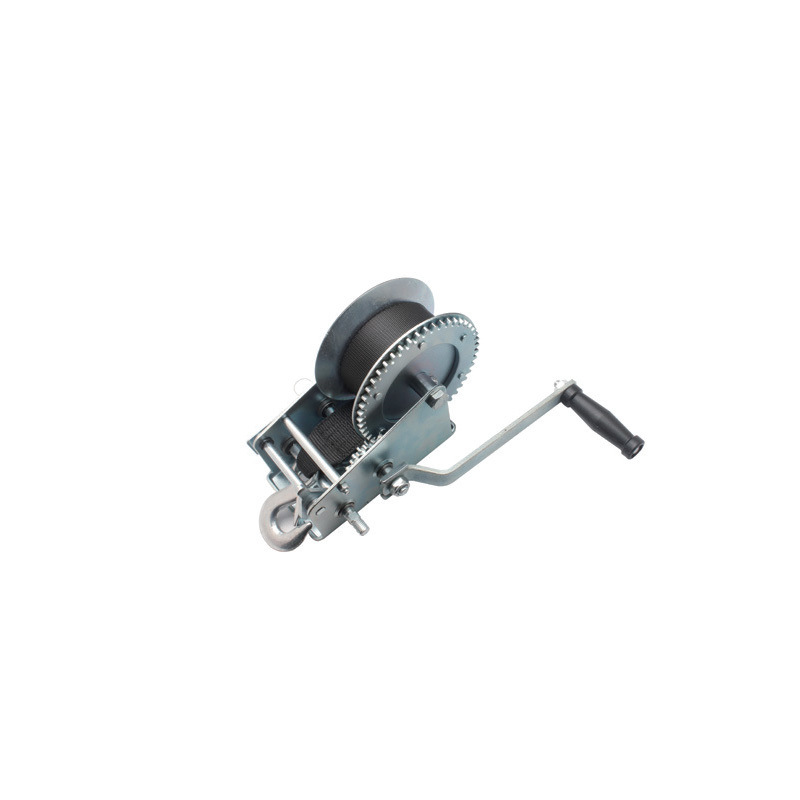

YD30-012A Series Strap Hand Winch

Professional-grade manual winch for camping, backyard, and dock applications with load capacities from 250kg to 1600kg. Features two-way operation, durable construction, and labor-saving gear ratios.

Product Specifications

Core Parameter Summary

Item No.	Capacity	Gear Ratio	Strap Size (Width*Length)	Way/Speed	PCS/CTN	Weight (G.W./N.W.:kg)
YD30-012A-001	600 LBS (250kg)	3.2:1	40.0mm*6m	2way/1speed	12	25/24
YD30-012A-002	800 LBS (363kg)	3.2:1	40.0mm*6m	2way/1speed	12	25/24
YD30-012A-003	1000 LBS (450kg)	4.1:1	45.0mm*10m	2way/1speed	8	27/26
YD30-012A-004	1200 LBS (550kg)	4.1:1	45.0mm*10m	2way/1speed	8	27/26
YD30-012A-005	1400 LBS (650kg)	4.1:1	45.0mm*10m	2way/1speed	8	32/31
YD30-012A-006	1600 LBS (700kg)	4.1:1	50.0mm*10m	2way	6	33/32
YD30-012A-007	1800 LBS (800kg)	4.1:1/8.1:1	50.0mm*10m	2way	4	28/27
YD30-012A-008	2000 LBS (900kg)	4.1:1/8.1:1	50.0mm*10m	2way/2speed	4	30/29
YD30-012A-009	2500 LBS (1100kg)	4.1:1/8.1:1	50.0mm*10m	2way/2speed	4	33/32
YD30-012A-010	3000 LBS (1360kg)	4.1:1/8.1:1	50.0mm*10m	2way/2speed	4	33/31
YD30-012A-011	3500 LBS (1600kg)	4.1:1/8.1:1	50.0mm*10m	2way/2speed	4	35/34

General Specifications

Parameter Category	Specific Description
Product Positioning	Designed for light-to-medium traction needs in power-free scenarios including outdoor camping, backyard operations, small equipment handling, and temporary ship fixation.
Structure & Material	Gear System: 20CrMnTi alloy gears with HRC 58-62 hardness Surface Treatment: Black electrostatic coating or zinc plated finish Braking System: Manual brake with automatic load locking Strap Material: High-strength polyester fiber with PVC coating
Installation & Adaptation	Fixed installation (4 M8 mounting holes) or handheld use Ergonomic handle design with 150-200mm length ≥50mm strap movement per handle shake

Key Features

Graded Load + Variable Speed Design

Precise Gear Ratios: 3.2:1 for light loads (250-363kg), 4.1:1/8.1:1 for heavy loads (450-1600kg)
Two-Way Operation: Clockwise/counterclockwise handle movement for both pulling and releasing
Instant Braking: Automatic strap locking when handle is released

Durable Construction

Solid Gears: 100% higher impact resistance than hollow gears
Tough Strap: ≥300N tear resistance, temperature resistant from -20℃ to 60℃
Dual Finishes: Black electrostatic coating or zinc plating for different environments

Portable Design

Lightweight construction (24-34kg net weight)
Universal mounting holes (50mm*80mm spacing)
5-minute installation time

Application Scenarios

Outdoor Camping Trailer/Equipment Handling (250-650kg models)

Ideal for pulling camping trailers up to 650kg without power source. Reduces operator count by 75% compared to manual pushing.

Backyard/Farm Heavy Object Movement (700-1100kg models)

Enables single-person movement of heavy objects like stone sculptures or farm equipment. Increases efficiency by 80%.

Temporary Ship/Dock Fixation (450-1600kg models)

Zinc-plated models provide secure boat mooring and crate handling in marine environments. Resistant to saltwater corrosion.

Frequently Asked Questions

Q: How to choose the right model?

Select a model with 20% higher capacity than your actual load. For camping/light use choose 250-650kg models; for heavy-duty applications select 700-1600kg models.

Q: Can damaged straps be repaired?

Minor surface damage can be repaired with special glue. Replace strap if ≥3 fibers are broken or cracks exceed 10mm.

Q: What maintenance is required?

Apply lithium-based grease every 50 uses or 3 months. Wipe dry after rain exposure and store out of direct sunlight.
