Cable Hand Winch 250-1600kg Load 2 Way For Off Road / Engineering / Dock

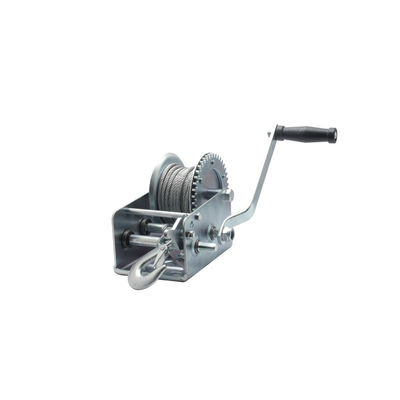

Large Image : Cable Hand Winch 250-1600kg Load 2 Way For Off Road / Engineering / Dock

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD30-012B-001-011

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Item No.:	YD30-012B-001	Capacity:	600 LBS (250kg)
Gear Ratio:	3.2:1	Cable Size (Dia.*Length):	4.0mm*6m
Way/Speed:	2way/1speed	PCS/CTN:	12
Weight (G.W./N.W.:kg):	31/30
Highlight:	heavy duty cable hand winch , off-road hand winch , 1600kg capacity engineering winch

Cable Hand Winch: 250-1600kg Load, 2-Way Operation for Off-Road, Engineering & Dock Applications

Product Specifications

Item No.	Capacity	Gear Ratio	Cable Size (Dia.*Length)	Way/Speed	PCS/CTN	Weight (G.W./N.W.:kg)
YD30-012B-001	600 LBS (250kg)	3.2:1	4.0mm*6m	2way/1speed	12	31/30
YD30-012B-002	800 LBS (363kg)	3.2:1	4.0mm*6m	2way/1speed	12	30/29
YD30-012B-003	1000 LBS (450kg)	4.1:1	4.5mm*8m	2way/1speed	8	28/27
YD30-012B-004	1200 LBS (550kg)	4.1:1	4.5mm*8m	2way/1speed	8	27/26
YD30-012B-005	1400 LBS (650kg)	4.1:1	4.5mm*8m	2way/1speed	8	26/25
YD30-012B-006	1600 LBS (700kg)	4.1:1	5.0mm*10m	2way	6	25/24
YD30-012B-007	1800 LBS (800kg)	4.1:1/8.1:1	5.0mm*10m	2way	4	22/21
YD30-012B-008	2000 LBS (900kg)	4.1:1/8.1:1	5.0mm*10m	2way	4	21/20
YD30-012B-009	2500 LBS (1100kg)	4.1:1/8.1:1	5.5mm*10m	2way	4	20/19
YD30-012B-010	3000 LBS (1360kg)	4.1:1/8.1:1	5.5mm*10m	2way/2speed	4	24/23
YD30-012B-011	3500 LBS (1600kg)	4.1:1/8.1:1	6.0mm*10m	2way	4	23/22

Key Features

High-Carbon Steel Cable: Hot-dip galvanized for superior cut resistance (80% better than standard cables) and rust prevention (no rust after 72-hour salt spray test)
Solid Gear Transmission: 20CrMnTi alloy gears with HRC 60-63 hardness for smooth operation and durability (500+ load cycles without wear)
2-Way Operation: Clockwise/counterclockwise handle movement enables both traction and relaxation functions
Automatic Braking: Ratchet-type manual brake locks cable when handle is released (1600kg load remains stationary for 24 hours)
Labor-Saving Design: Gear ratios optimized for different loads (3.2:1 to 8.1:1) with operating force ≤200N
Universal Installation: M10 mounting holes (60mm*90mm spacing) for fixed or mobile use

Application Scenarios

1. Off-Road Vehicle Self-Rescue (Models 003-010, 450-1360kg)

When vehicles are trapped in mud or difficult terrain, these winches provide power-free traction. The 8.1:1 low-speed gear allows one person to pull a 1200kg load with just 180N of force.

2. Backyard Heavy Equipment Handling (Models 005-008, 650-900kg)

Ideal for moving generators, machinery, or other heavy items in confined spaces where forklifts can't operate. The 2-way operation allows precise positioning.

3. Engineering & Ship Mooring (Models 009-011, 1100-1600kg)

Perfect for construction sites needing to move heavy equipment or docks requiring temporary mooring. The galvanized components resist corrosion in humid environments.

Frequently Asked Questions

Q1: How to choose the appropriate cable diameter based on load?

Match cable diameter to both load and environmental conditions:

≤363kg: 4.0mm cable
450-650kg: 4.5mm cable
700-900kg: 5.0mm cable
1100-1600kg: 5.5-6.0mm cable

For high-wear environments (rocks, metal edges), select one size larger than standard recommendations.

Q2: How to handle slight rust on the cable?

Slight rust doesn't affect load capacity (maintains >90% rating). Remove rust with fine sandpaper (1200 grit) and apply lithium-based grease. Replace cable if rust pits or ≥3 broken wires per strand appear.

Q3: What causes handle jitter during operation?

Typically caused by insufficient lubrication or uneven cable winding:

Apply lithium-based grease to gear meshing areas
Fully extend and rewind cable evenly on drum

Q4: How does cold weather (-25℃) affect performance?

Cables maintain toughness in cold temperatures. For smoother operation:

Idle handle 10-15 times to warm lubricating oil
Retract cable into drum after use to prevent ice buildup
