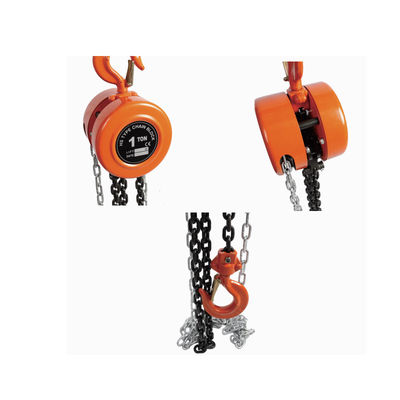

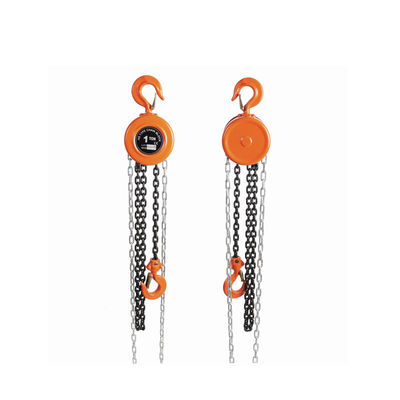

HSZ Chain Block: 0.5-20T Load, 2.5-3m Lift for Workshop/Construction/Rescue
Product Specifications
Core Parameter Summary Table
| Model |
Capacity (T) |
Lifting Height (m) |
Test Load (T) |
Min. Headroom (Hook to Hook, mm) |
Chain Pull (Full Load, N) |
No. of Load Chain Lines |
Chain Spec (mm) |
Net Weight (kg) |
Gross Weight (kg) |
Packing Measurement (L×W×H, cm) |
Chain Box Size (cm) |
| YD30-013-0.5T |
0.5 |
2.5 |
0.75 |
255 |
221 |
1 |
6 |
8 |
10 |
28×21×17 |
1.7 |
| YD30-013-1T |
1 |
2.5 |
1.5 |
306 |
304 |
1 |
6 |
10 |
13 |
30×24×18 |
1.7 |
| YD30-013-1.5T |
1.5 |
2.5 |
2.25 |
368 |
343 |
1 |
8 |
16 |
20 |
34×29×20 |
23 |
| YD30-013-2T |
2 |
3 |
3 |
444 |
314 |
2 |
6 |
14 |
17 |
33×25×19 |
25 |
| YD30-013-3T |
3 |
3 |
4.5 |
486 |
343 |
2 |
8 |
24 |
28 |
33×29×20 |
3.7 |
| YD30-013-5T |
5 |
3 |
7.5 |
616 |
383 |
2 |
10 |
36 |
45 |
45×35×24 |
5.3 |
| YD30-013-10T |
10 |
3 |
12.5 |
700 |
392 |
4 |
10 |
68 |
83 |
62×50×28 |
9.7 |
| YD30-013-20T |
20 |
3 |
25 |
1000 |
392 |
8 |
10 |
156 |
194 |
70×45×75 |
19.4 |
General Basic Parameters
| Parameter Category |
Specific Description |
| Product Positioning |
Designed for power-free, high-altitude heavy-load lifting scenarios, serving fields such as factory workshop equipment maintenance, construction material hoisting, warehouse cargo handling, and outdoor rescue. 8 models cover a load range of 0.5T-20T, balancing lightweight portability and industrial-grade load-bearing capacity. |
| Core Features |
- Power-Free Operation: No external power supply required; manually pull the hand chain for lifting, suitable for power-free scenarios.
- Customization Service: Supports OEM customization and personalized function adjustments.
- International Standards: Complies with international safety standards, with all models passing overload tests (1.5 times rated load).
|
| Structure & Material |
- Chain System: Grade 80 high-strength alloy chain with hot-dip galvanized surface for rust prevention.
- Transmission Mechanism: Double-bearing design with precision gear set, transmission efficiency ≥90%.
- Braking System: Built-in ratchet-pawl brake with braking torque ≥3 times rated load torque.
- Hook Assembly: 40Cr forged steel hooks with automatically resetting safety latches.
|
Product Details
Centered on heavy-load safety + labor-saving durability + power-free universality, the YD30-013 Series HSZ Type Chain Block is optimized for power-free heavy-load lifting scenarios.
Double-Bearing + High-Strength Chain, Effortless Heavy-Load Lifting
Double-Bearing Transmission, Excellent Efficiency and Durability
- Significant Labor-Saving Effect: Transmission resistance reduced by 30%, lifting efficiency increased by 25%.
- Less Wear: Bearings evenly distribute radial force, reducing wear by 40% and extending service life to 1.5 times ordinary products.
Grade 80 Alloy Chain, Rugged, Rust-Proof and Non-Jamming
- Strong Load-Bearing Capacity: Breaking strength much higher than ordinary chains.
- Excellent Rust Resistance: Double rust-proof treatment of hot-dip galvanizing + passivation.
- Smooth Meshing: Chain pitch accuracy ≤0.1mm for precise sprocket matching.
Multiple Safety Protections, No Risks in Heavy-Load Operations
"Lock-on-Release" Brake, More Reliable Anti-Fall Protection
- Brake locks instantly when hand chain is released, preventing heavy object from falling.
- Brake system passes 1,000 heavy-load start-stop tests without performance deterioration.
Anti-Detachment Hook + Compact Structure, Safe and Portable
- Anti-Detachment Hook: Automatically resetting safety latches with opening angle ≤60°.
- Lightweight Design: 0.5T model weighs only 8kg; 20T model features modular split design for easy transport.
Application Scenarios
Factory Workshop Equipment Maintenance (Core Scenario: Models 0.5T-5T)
Scenario Requirement: Lifting a 5T machine spindle out of equipment cavity (2.5m height) during power outage in narrow workspace.
Result: Reduces operators by 70%, shortens lifting time from 1 hour to 20 minutes.
Construction Material Hoisting (Scenario 2: Models 3T-10T)
Scenario Requirement: Hoisting 8T steel bundle to 10m-high platform at power-free construction site.
Result: Reduces hoisting cost by 80%, works continuously for 1 month in dusty environments.
Warehouse Cargo Handling & Outdoor Rescue (Scenario 3: Models 0.5T-20T)
Scenario Requirement: Moving 15T shelf in warehouse; lifting 5T vehicle in outdoor rescue.
Result: Increases warehouse efficiency by 80%; completes vehicle rescue in 30 minutes without power.
Frequently Asked Questions
Q1: How to choose the right model based on actual needs?
A1: Choose based on load, height, and scenario:
- Select model with rated load 20% higher than actual load
- Models 0.5T-1.5T have 2.5m lift; 2T-20T have 3m lift
- Prioritize galvanized chain models for outdoor use
Q2: The chain jams during lifting. Is this a fault? How to solve it?
A2: Usually operation or maintenance issue:
- For chain entanglement: Pull hand chain slowly in reverse direction
- For insufficient lubrication: Add lithium-based grease (Model Li-2)
Q3: After long-term use, the braking effect decreases. How to adjust it?
A3: Adjust brake clearance:
- Loosen brake spring fixing nut
- Rotate adjustment bolt clockwise (1/4 turn each time)
- Replace brake pad if wear ≥1mm
Q4: When used outdoors at low temperatures (-25℃), will the chain become brittle and the brake fail?
A4: No, with proper preparations:
- Grade 80 alloy chains maintain toughness at -25℃
- Brake grease is low-temperature type resistant to -30℃
- Preheat components by pulling hand chain empty 10-15 times
