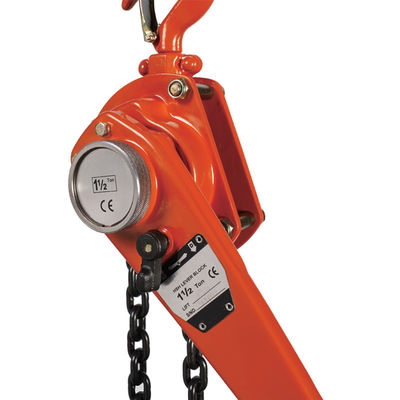

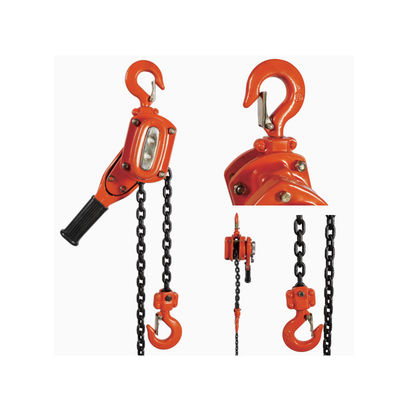

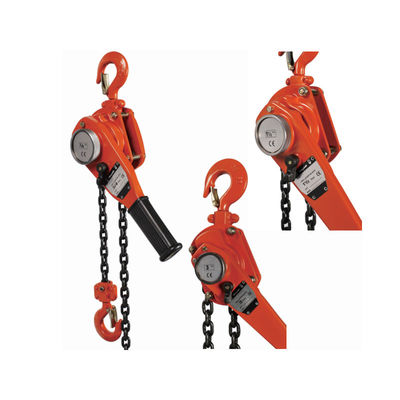

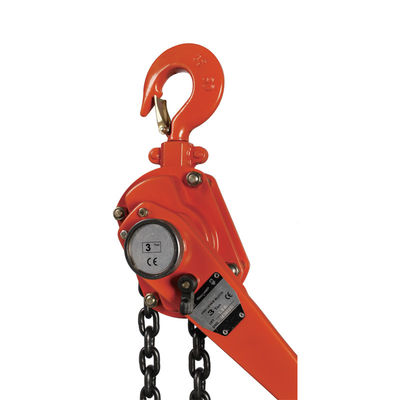

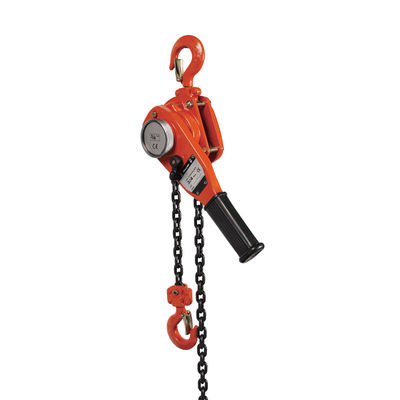

HSH-V Lever Block 0.75-6T Load Narrow Space Fit for Maintenance / Installation / Rescue
Product Details
| Model: | YD30-015-0.75T | Capacity (T): | 0.75 |
|---|---|---|---|
| Test Load (T): | 1.125 | Standard Lifting Height (m): | 1.5 |
| Min. Distance Between Hooks (mm): | 295 | Efforts Required (Full Load, N): | 140 |
| Highlight |
HSH-V lever block for narrow spaces,0.75-6T lever block,lever block for maintenance and rescue |
||
Product Description
| Model | Capacity (T) | Test Load (T) | Standard Lifting Height (m) | Min. Distance Between Hooks (mm) | Efforts Required (Full Load, N) | No. of Load Chains | Load Chain Diameter (mm) | Dimensions (mm) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| YD30-015-0.75T | 0.75 | 1.125 | 1.5 | 295 | 140 | 1 | 6 | 148×128×295 | 7.3 |
| YD30-015-1T | 1 | 1.5 | 1.5 | 310 | 186 | 1 | 6 | 148×128×310 | 7.8 |
| YD30-015-1.5T | 1.5 | 2.25 | 1.5 | 335 | 234 | 1 | 7.1 | 163×148×335 | 10.4 |
| YD30-015-3T | 3 | 4.5 | 1.5 | 405 | 363 | 1 | 10 | 191×181×405 | 17.2 |
| YD30-015-6T | 6 | 9 | 1.5 | 550 | 370 | 2 | 10 | 191×244×550 | 26 |
- Product Positioning: Designed for light-to-medium heavy-load lifting in narrow spaces without power supply, serving equipment maintenance, pipeline installation, warehouse handling, and outdoor emergency rescue.
- Core Certifications: CE-certified, 1.5 times overload tested, 1-year warranty, and RoHS compliant eco-friendly coating.
- Structure & Material: T80-grade high-strength lifting chain, precision bearings, pawl-ratchet brake system, and 40Cr forged steel hooks.
- Labor-Saving Design: 6T model requires only 370N operating force; 0.75T model needs just 140N for single-hand operation.
- Small Operating Space: Lever swing angle of 30°-45° fits spaces ≤500mm wide.
- Rugged & Durable Chain: T80-grade chain with hot-dip galvanizing withstands 9T test load without deformation.
- Bearing Efficiency: 40% reduced transmission resistance, 30% faster lifting speed.
- Portability: 0.75T model weighs only 7.3kg; 6T model at 26kg can be moved by two people.
- Compact Size: 0.75T model dimensions: 295mm×148mm×128mm.
- Safety Features: "Lock-on-Release" brake, anti-detachment hooks with safety latches.
- Multi-Environment Use: Suitable for equipment maintenance, pipeline installation, and outdoor rescue.
- Low Maintenance: Lithium-based grease application every 50 uses; individual component replacement available.
- Lifts 2T motor in 300mm gap during power outage.
- Reduces operators by 75%, cuts lifting time from 1 hour to 15 minutes.
- Lifts 5T steel pipe at 10° incline without municipal power.
- Reduces installation costs by 90% vs. crane rental.
- Moves 5T shelf in 500mm space with 85% efficiency gain.
- Rescues 3T vehicle in muddy conditions without power.
- Select model with 20% higher rated load than actual need.
- Choose 0.75T-1.5T for ≤300mm spaces; 3T-6T for 300mm-600mm.
- 0.75T-1T for single-person; ≥1.5T for two-person or inclined lifting.
- Reset chain position if deviated from sprocket.
- Add lithium-based grease every 30 uses for smoother operation.
- Adjust brake clearance by rotating adjustment bolt clockwise.
- Replace brake pad if wear ≥1mm.
- Chain maintains toughness; thaw frozen surface with warm water.
- Preheat by pulling lever empty 10-15 times before load operation.
