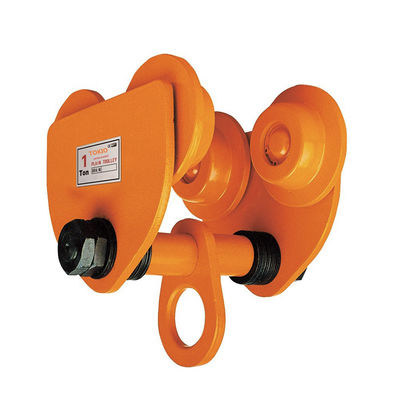

Geared Trolley: 0.5-10T Load, I-Beam Fit for Workshop/Warehouse/Construction
Product Details
| Model: | YD30-016-0.5T | Capacity (T): | 0.5 |
|---|---|---|---|

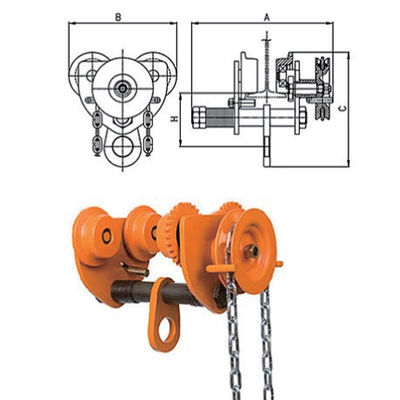

| Test Load (T): | 0.75 | Dimensions (mm): | 271 × 172 × 190 |
| Recommended I-Beam (mm): | 75-125 | Net Weight (kg): | 8 |
| Highlight |
geared trolley for I-beam,workshop geared trolley 10T,warehouse trolley with heavy load |
||
Product Description
| Model | Capacity (T) | Test Load (T) | Dimensions (mm) | Recommended I-Beam (mm) | Net Weight (kg) |
|---|---|---|---|---|---|
| YD30-016-0.5T | 0.5 | 0.75 | 271 * 172 * 190 | 75-125 | 8 |
| YD30-016-1T | 1 | 1.5 | 308 * 231 * 238.5 | 75-125 | 12.5 |
| YD30-016-1.5T | 1.5 | 2.25 | 308 * 231 * 238.5 | 100-150 | 15 |
| YD30-016-2T | 2 | 3 | 308 * 240 * 267 | 100-150 | 16.5 |
| YD30-016-3T | 3 | 4.5 | 342 * 279 * 319 | 100-150 | 23 |
| YD30-016-5T | 5 | 7.5 | 384 * 318 * 384 | 125-175 | 37 |
| YD30-016-10T | 10 | 15 | 442 * 380 * 490 | 125-180 | 68 |
- Heavy-Duty Construction: Thick-walled rolled steel side frames provide superior strength and protection for wheels
- Premium Wheels: Alloy cast iron wheels with HRC 55-60 hardness for exceptional wear resistance
- Precision Bearings: Lifetime-lubricated ball bearings ensure smooth operation with minimal maintenance
- Universal Compatibility: Adapts to I-beam tracks from 75mm to 180mm without modification
- Safety Certified: Exceeds GB/T 3811-2008 standards with 1.5* test load capacity
- Rolled steel side frames (8-15mm thickness) resist deformation under heavy loads
- Extended side frame design (50-80mm beyond wheels) protects against impact damage
- Quenched alloy wheels maintain ≤0.05mm wear per 1000 operations
- Pushing resistance ≤1.5% of rated load (10T model ≤150N)
- Precision bearings require no maintenance under normal use
- Linear speed control enables precise positioning of sensitive loads
- Workshops: Ideal for machine tool handling in confined spaces
- Warehouses: Efficient transfer of heavy shelving between floors
- Construction: Stable operation on temporary tracks with ≤2mm/m unevenness
- 8T machine tool spindle movement in 30m workshop space
- 50% labor reduction compared to traditional methods
- 75% time savings with precise positioning
- 5T shelving movement between floors with elevator transfer
- 80% efficiency improvement over forklift operations
- Collision-free handling in narrow spaces
- 10T steel bundle handling to 10m platforms
- 60% faster than tower crane methods
- Stable operation on temporary tracks
- Choose capacity 20% above actual load (8T load → 10T model)
- Match wheel width to I-beam flange (75-125mm, 100-150mm, or 125-180mm)
- Consider usage frequency for durability requirements
- Check track flatness (≤2mm/m error)
- Remove debris from wheel treads
- Inspect for wheel damage if jitter persists
