Pintle Hooks: 1.75"-2.31" Balls, 2k-12k LBS, Black Coat for Camping/Cargo/Engineering

Large Image : Pintle Hooks: 1.75"-2.31" Balls, 2k-12k LBS, Black Coat for Camping/Cargo/Engineering

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD39-009-011

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Compatible Ball Size:	1-7/8"	Ball Capacity:	2,000 LBS
Body Capacity:	12,000 LBS	Net Weight (N.W.):	17.64 LBS
Finish:	Black Powder Coating
Highlight:	Pintle hooks for cargo trailers , Black coated pintle hooks , Heavy-duty pintle hooks 12k lbs

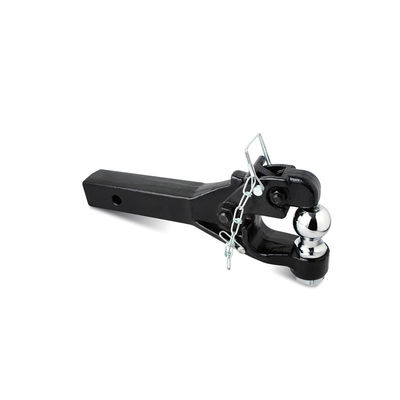

YD39-009~011 Series Heavy-Duty Pintle Hook Mounts

Designed for rigid connection between medium-heavy-duty trailers and tow vehicles, these pintle hooks transmit high traction while adapting to heavy-load scenarios including cargo transportation, engineering, and camping applications.

Product Specifications

Core Parameter Summary

Parameter Category	YD39-009	YD39-010	YD39-011
Compatible Ball Size	1-7/8" (47.6mm)	2" (50.8mm)	2-5/16" (58.7mm)
Ball Capacity	2,000 LBS (907.2kg)	7,000 LBS (3,175.1kg)	12,000 LBS (5,443.1kg)
Body Capacity	12,000 LBS (5,443.1kg)	12,000 LBS	12,000 LBS
Finish	Black powder coating (28-32μm)	Black powder coating	Black powder coating
Shank Structure	Solid alloy steel (28mm diameter)	Solid structure	Solid structure

Model Differences & Applications

Model	Core Differences	Recommended Applications
YD39-009	1-7/8" ball, 2,000 LBS capacity	Camping trailers, light commercial cargo
YD39-010	2" ball, 7,000 LBS capacity	Commercial cargo trailers, RVs
YD39-011	2-5/16" ball, 12,000 LBS capacity	Engineering equipment, heavy trailers

Key Features

Graded Load-Bearing + High-Strength Structure

Safety margin: 500% body capacity exceeds ball rating
Solid shank: Forged alloy steel with ≥450MPa shear strength
Carbon steel body: ≥400MPa weld tensile strength

All-Scenario Protection

Black powder coating: 48-hour salt spray resistance
Chrome-plated engagement: 15μm thickness reduces friction
Universal mounting holes: 3-3/8" × 1-7/8" pattern

Application Scenarios

Household Camping (YD39-009)

1,800 LBS camping trailers
25-minute installation
Stable at 100km/h with no vibration

Commercial Cargo (YD39-010)

6,600 LBS cargo trailers
40% faster installation
Oil-resistant coating

Engineering Equipment (YD39-011)

22,000 LBS excavator transport
Wear-resistant alloy engagement
Steep slope and gravel road capable

Frequently Asked Questions

Q: Why is there noise during towing?

A: Typically caused by improper engagement gap (adjust to 0.1-0.2mm) or insufficient bolt torque (65-75N*m depending on model).

Q: How to select the correct model?

Confirm ball size (1-7/8", 2", or 2-5/16")
Verify trailer weight (≤2k, ≤7k, or >7k LBS)
Consider usage frequency and environment
