YD40 Series Ball Mounts: 2" Receiver, 3.5k-6k LBS, Black Coat for Camping/Cargo/Off-Road

Large Image : YD40 Series Ball Mounts: 2" Receiver, 3.5k-6k LBS, Black Coat for Camping/Cargo/Off-Road

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD40-001-003

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Highlight:

YD40 Series 2 inch ball mount

3.5k-6k LBS trailer hitch

black coat off-road ball mount

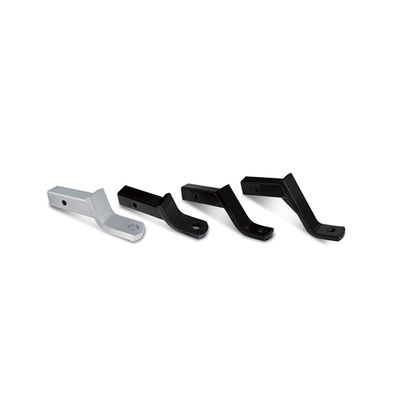

YD40 Series Ball Mounts: 2" Receiver, 3.5k-6k LBS, Black Coat for Camping/Cargo/Off-Road

Product Specifications

Core Parameter Summary

Parameter Category	YD40-001	YD40-002	YD40-003	YD40-004	YD40-005	YD40-006	YD40-007	YD40-008	YD40-009
Model No.	YD40-001	YD40-002	YD40-003	YD40-004	YD40-005	YD40-006	YD40-007	YD40-008	YD40-009

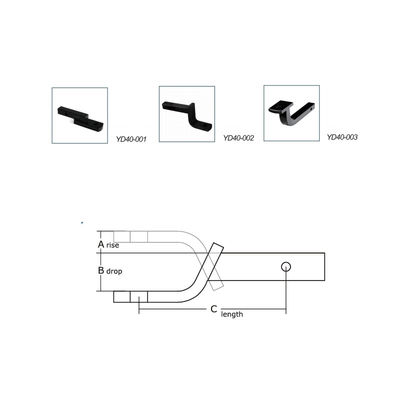

Key Dimensions (Inch)	1. Horizontal: 1-1/4 2. Vertical: 3/4 3. Length: 9 4. Ball Hole Size: 3/4	1. Horizontal: 2-1/2 2. Vertical: 2 3. Length: 7 4. Ball Hole Size: 3/4	1. Horizontal: N/A 2. Vertical: 3-7/8 3. Length: 9 4. Ball Hole Size: 3/4	1. Horizontal: 2 2. Vertical: 3/4 3. Length: 9 4. Ball Hole Size: 1	1. Horizontal: 3 2. Vertical: 2 3. Length: 7-7/8 4. Ball Hole Size: 1	1. Horizontal: 4 2. Vertical: 2-3/4 3. Length: 8-1/4 4. Ball Hole Size: 1	1. Horizontal: 5 2. Vertical: 3-3/4 3. Length: 9 4. Ball Hole Size: 1	1. Horizontal: 6 2. Vertical: 4-3/4 3. Length: 9-1/2 4. Ball Hole Size: 1	1. Horizontal: 8 2. Vertical: 6-3/4 3. Length: 10 4. Ball Hole Size: 1
Max. Capacity (LBS)	3,500 (1,587.6kg)	3,500 (1,587.6kg)	3,500 (1,587.6kg)	6,000 (2,721.6kg)	6,000 (2,721.6kg)	6,000 (2,721.6kg)	5,000 (2,268kg)	5,000 (2,268kg)	5,000 (2,268kg)
Finish	Black powder coat (25-30μm, salt spray resistance ≥48 hours)	Same as YD40-001	Same as YD40-001	Same as YD40-001	Same as YD40-001	Black powder coat	Same as YD40-001	Black powder coat	Same as YD40-001
Shank Structure	Solid (shear strength ≥400MPa)	Same as YD40-001	Solid	Hollow (wall thickness 3mm, shear strength ≥350MPa)	Same as YD40-004	Hollow	Same as YD40-004	Same as YD40-004	Same as YD40-004

Model Group Comparison

Group	Models	Shank Type	Load-Bearing	Core Applicable Scenarios	Key Differences
Light-Duty Solid Group	YD40-001~003	Solid	3,500 LBS	Household light camping trailers, small toy trailers	Diversified sizes, compatible with vehicles of different chassis heights, strong shear resistance
Medium-Duty Hollow Group	YD40-004~006	Hollow	6,000 LBS	Commercial small cargo trailers, medium camping RVs	1" large ball hole diameter, lightweight hollow shanks
Medium-Heavy-Duty Hollow Group	YD40-007~009	Hollow	5,000 LBS	Household medium-duty cargo trailers, outdoor equipment trailers	Larger horizontal/vertical dimensions, compatible with medium-duty trailers

Product Details

All-Scenario Universality + Graded Design

2" Receiver Universality: Compatible with industry-standard 2" square receivers (Ford F-150, Toyota Tundra, etc.) with insertion depth ≥100mm for stable connection
Graded Load-Bearing: Three groups (3,500 LBS, 6,000 LBS, 5,000 LBS) precisely match different towing needs

Durable Material + Enhanced Protection

High-Strength Materials: Carbon steel (light-duty) and alloy steel (medium/heavy-duty) with tensile strength ≥450-500MPa
Black Powder Coating: 25-30μm thickness, salt spray resistance ≥48 hours, scratch-resistant and oil-resistant

Detail Optimization + Humanized Design

Multi-Size Adaptation: Lengths from 7-10 inches to match different vehicle chassis heights
Lightweight Design: Hollow shank models 20% lighter than solid shanks for easier installation

Application Scenarios

Towing of Household Light Camping Trailers (YD40-002)

Compatible with Honda CR-V SUV and light camping trailers (~1,200 LBS)
7" short length prevents dragging on low chassis vehicles
Stable performance at 100km/h with no vibration or deviation

Transportation of Commercial Small Cargo Trailers (YD40-005)

Handles 1.5 tons of home appliances (~3,300 LBS) with 6,000 LBS capacity
Hollow shank design reduces weight for easier handling
Oil-resistant coating for easy cleaning in commercial use

Towing of Outdoor Equipment Trailers (YD40-008)

Compatible with Ford F-150 high chassis and outdoor equipment (~1,000 LBS)
9-1/2" length prevents terrain interference on off-road trails
Scratch-resistant coating withstands gravel impacts

Frequently Asked Questions

Q1: There is a "squeaking" noise between the ball and the ball mount during towing after installation. What is the reason?

Confirm ball-hole compatibility (gap ≤0.1mm)
Tighten ball bolts to 40-45N*m torque
Clean and apply silicone-based grease to reduce friction

Q2: After long-term use, the hollow-shank ball mount shows slight deformation. Can it still be used?

Slight deformation (≤0.3mm): Limit to 50% of rated load
Obvious deformation (>0.3mm or cracks): Replace immediately
Prevent by avoiding overload and reducing impact

Q3: How to select the correct YD40 series model?

Determine by trailer weight, ball size, and vehicle chassis height
Light-Duty (≤1,500 LBS): YD40-001~003
Medium-Duty (1,500-2,700 LBS): YD40-004~006
Medium-Heavy-Duty (≤2,268kg): YD40-007~009

Q4: Rust appears on the ball mount coating when used in coastal areas. How to handle?

Minor rust: Polish and apply touch-up paint
Severe rust (>10% area): Replace ball mount
Prevent with regular cleaning and anti-rust wax
