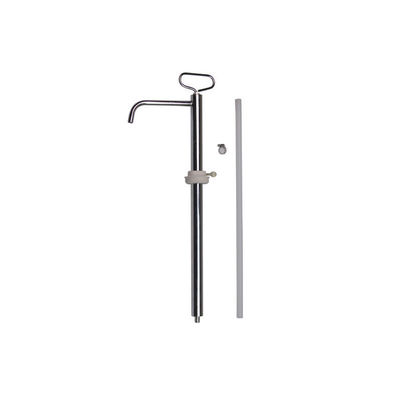

YD51-004A Steel/Poly Hand Pump: 10.6L/min, 200Gal Drum, for Workshops/Labs/Farms

Large Image : YD51-004A Steel/Poly Hand Pump: 10.6L/min, 200Gal Drum, for Workshops/Labs/Farms

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD51-004A

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Pipe Dimensions::	Inlet φ28.5mm × 495mm; Outlet φ12.7mm; Joined Tube 567mm	Flow Performance::	212 Cc/stroke, 50 Strokes/min (≈10.6 L/min)
Material Composition:	#304 Stainless Steel Body With PP Tubes And Piston, Viton Seal Ring	Drum Adaptation:	2" G-thread Adaptor For Secure Attachment
Weight:	0.875 Kg (lightweight And Portable)	Applicable Liquids:	: Diesel, Gasoline, Engine Oil, Lubricants, Mild Chemicals
Highlight:	steel poly hand pump for drums , 10.6L min drum hand pump , workshop lab farm hand pump

YD51-004A Steel/Poly Hand Pump: 10.6L/min, 200Gal Drum, for Workshops/Labs/Farms

Product Specifications

Core Parameters

Parameter Category	Specific Specification
Model	YD51-004A (Dual-material hand pump, combining #304 stainless steel and PP)
Product Type	200-gallon drum-compatible hand pump with corrosion-resistant materials and precise flow control
Basic Parameters	Pipe Dimensions: Inlet φ28.5mm * 495mm; Outlet φ12.7mm; Joined tube 567mm Flow Performance: 212 cc/stroke, 50 strokes/min (≈10.6 L/min) Material Composition: #304 Stainless Steel body with PP tubes and piston, Viton seal ring Drum Adaptation: 2" G-thread adaptor for secure attachment Weight: 0.875 kg (lightweight and portable) Applicable Liquids: Diesel, gasoline, engine oil, lubricants, mild chemicals

Performance Tests

Test Item	Test Condition	Test Result
Flow Rate Accuracy	50 strokes/min with diesel	Stable 10.6 L/min flow rate with no fluctuation
Leak-Proof Performance	Gasoline transfer with 15° drum tilt	100% liquid retention with no seepage
Corrosion Resistance	72h engine oil + 24h mild detergent exposure	No rust, swelling, or functional degradation
Durability	10,000 consecutive strokes	No structural damage or performance decline

Product Advantages

Dual-Material Durability

#304 Stainless Steel: Rust and corrosion resistant for 8+ year service life
PP Construction: Lightweight (0.875 kg) for easy handling and installation
Viton Seal: Withstands 200°C and maintains leak-proof performance

Precise Flow Control

212 cc per stroke enables accurate dispensing
12.7mm outlet prevents overflow and reduces waste by 30%
Consistent 10.6 L/min flow rate for efficient operation

Drum-Specific Design

2" G-thread adaptor for secure drum attachment
495mm inlet pipe reaches drum bottom for complete liquid extraction
Ergonomic operation suitable for vertical or horizontal use

Application Scenarios

Workshop Oil Transfer

Ideal for transferring engine oil from 200-gallon drums in auto repair shops. Enables precise 4L dispensing per vehicle (≈38 strokes) with no spills.

Laboratory Chemical Dispensing

Safe for mild chemical transfer with PP and Viton materials that resist chemical reaction. Provides controlled 2L dispensing per cycle.

Farm Diesel Refueling

Manual operation perfect for remote locations. Transfers 50L diesel per tractor in ~4.7 minutes with complete drum emptying.

Frequently Asked Questions

Q: Flow rate slows during diesel transfer?

A: Clean inlet pipe with compressed air, lubricate piston, and check seal ring to restore 10.6 L/min flow.

Q: Compatible with 55-gallon drums?

A: Yes, but requires inlet pipe shortening to 400mm while maintaining 2" G-thread compatibility.

Q: Adaptor leaks when drum is tilted?

A: Tighten adaptor, use Teflon tape on threads, and limit tilt to ≤15° for optimal sealing.

Q: Safe for gasoline transfer?

A: Yes, with proper ventilation, grounding, and no open flames. Materials are non-reactive with gasoline.
