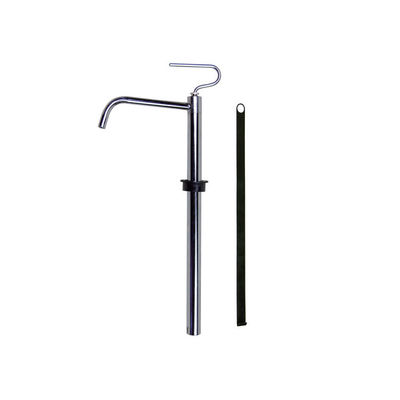

YD51-004B Manual Drum Pump: 6.5L/min, 200Gal, Chrome Steel, for Shops/Garages/Farms

Large Image : YD51-004B Manual Drum Pump: 6.5L/min, 200Gal, Chrome Steel, for Shops/Garages/Farms

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD51-004B

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Diameter & Head::	Inlet: φ25.2mm, Outlet: φ12.7mm, Suction Head: 390mm, Pump Head: 20mm	Flow Performance::	130 Cc Per Stroke, 50 Strokes/min (≈6.5 L/min)
Material Composition::	Chrome-plated Steel Pipe, PP Piston, Nitrile Seal, 2" G-thread Adaptor	Weight & Packaging:	0.6 Kg Net Weight, 20 Boxes Per Carton
Applicable Liquids:	Diesel, Gasoline, Engine Oil, Lubricants, Kerosene (no Strong Acids/alkalis)
Highlight:	manual drum pump for shops , chrome steel drum pump , 6.5Lmin drum pump

YD51-004B Manual Drum Pump: 6.5L/min, 200Gal, Chrome Steel, for Shops/Garages/Farms

Product Specifications

Parameter Category	Specific Specification
Model	YD51-004B (Lightweight manual hand pump for precise liquid transfer from 200-gallon drums)
Product Type	200-gallon drum-compatible manual hand pump with corrosion-resistant plating and controlled flow
Basic Parameters	Diameter & Head: Inlet: φ25.2mm, Outlet: φ12.7mm, Suction Head: 390mm, Pump Head: 20mm Flow Performance: 130 cc per stroke, 50 strokes/min (≈6.5 L/min) Material Composition: Chrome-plated steel pipe, PP piston, Nitrile seal, 2" G-thread adaptor Weight & Packaging: 0.6 kg net weight, 20 boxes per carton Applicable Liquids: Diesel, gasoline, engine oil, lubricants, kerosene (no strong acids/alkalis)

Performance Test Results

Test Item	Test Condition	Test Result
Flow Rate Stability	50 strokes/min for 1 hour	Consistent 6.5 L/min flow rate
Leak-Proof Performance	30 minutes with gasoline	No leakage at any joints
Corrosion Resistance	72 hours in engine oil	No rust or discoloration
Durability	8,000 consecutive strokes	Operates as smoothly as new

Key Product Features

Ultra-Lightweight Design: Only 0.6kg for easy one-person installation
Rust-Resistant Construction: Chrome-plated steel pipe for 7+ year durability
Precise Flow Control: 130cc per stroke (6.5 L/min) for accurate dispensing
Oil-Resistant Components: Nitrile seals and PP piston for leak-free operation
Deep Suction: 390mm head reaches drum bottom to minimize waste

Typical Applications

Auto Repair Shops: Precise engine oil dispensing for vehicle servicing
Home Garages: Safe gasoline transfer for generators and equipment
Small Farms: Efficient diesel refueling for tractors and machinery
Retail Storage: Controlled liquid transfer in compact spaces

Frequently Asked Questions

Q: The pump's stroke becomes stiff after gasoline transfer. How to fix?

A: Clean the piston with gasoline, lubricate the seal, and check for debris to restore smooth operation.

Q: Can it be used with 55-gallon drums?

A: Yes, but the suction pipe should be shortened to 300mm to avoid bending.

Q: The adaptor leaks when the drum is tilted. How to resolve?

A: Tighten the adaptor, add Teflon tape, and limit tilt angle to ≤10°.

Q: Is it safe to leave the pump attached to the drum for a week?

A: Not recommended. Remove after use to prevent seal damage and contamination.
