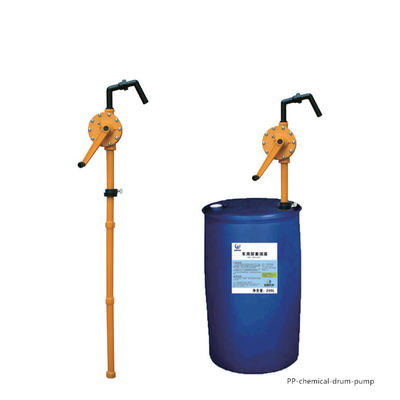

YD51-005C PP Chemical Pump:20L/min,Adblue/Acid-Resistant,for Shops/Labs/Farms

Large Image : YD51-005C PP Chemical Pump:20L/min,Adblue/Acid-Resistant,for Shops/Labs/Farms

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD51-005C

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Highlight:

PP chemical pump 20L/min

Adblue acid-resistant pump

chemical pump for shops labs

YD51-005C PP Chemical Pump: 20L/min, Adblue/Acid-Resistant, for Shops/Labs/Farms

Product Specifications

Core Parameters

Parameter Category	Specific Specification
Model	YD51-005C (PP-based chemical hand drum pump, designed for safe transfer of corrosive, volatile, and edible liquids)
Product Type	PP-constructed chemical hand drum pump with Viton seal and self-priming function
Dimensional Details	Pump Diameter: 146.2mm Inlet Diameter: 36mm Outlet Diameter: 25mm Adapter Size: 2-inch Product Weight: N.W. 12KGS / G.W. 14KGS
Performance Metrics	Flow Rate: 20 L/min Pump Head: 1M Suction Head: 1M Rotation Speed: 70 R/min
Material Composition	Main Body: Plastic PP (Polypropylene) Seal Material: Viton Suction Tube: 3-piece PP tube

Performance Tests

Test Item	Test Condition	Test Result
Chemical Resistance	Soak in 15% sulfuric acid, 20% sodium hydroxide, and Adblue for 72 hours	No deformation, discoloration, or swelling; maintains leak-proof performance
Self-Priming & Flow Stability	Test with diesel at 70 R/min for 2 hours	Self-primes in 18 seconds; steady flow rate of 20±0.5 L/min
Durability	10,000 rotary cycles with gasoline	No cracks, hardening, or performance degradation

Key Features

PP & Viton: Chemical Resistance & Leak-Proof Assurance

PP's Versatile Protection: Resists acids, alkalis, and petroleum-based liquids with 7+ year service life
Viton Seal Reliability: Withstands corrosive substances and prevents leakage during prolonged operation

Self-Priming & Lightweight Design

20 L/min Self-Priming Transfer: Eliminates pre-filling needs, empties 200-gal drum in ~10 minutes
Lightweight Portability: 12kg net weight for easy transport and installation

Multi-Drum Compatibility

3-Piece Adjustable PP Tubes: Fits 15-gal, 30-gal, and 200-gal drums
1"/2" Dual Adapters: Secures tightly to prevent spills of volatile or corrosive liquids

Application Scenarios

Automotive Workshop Adblue Refueling

Efficiently refuels 15 heavy-duty trucks (25L each) in under 19 minutes. PP material resists Adblue corrosion while Viton seals prevent leakage.

Small Chemical Lab Acid Transfer

Safely transfers 30L of 15% sulfuric acid in ~1.5 minutes. Easy to clean and meets lab safety standards.

Farm Diesel & Fertilizer Transfer

Versatile solution for transferring both diesel and alkaline fertilizer. Portable design adapts to outdoor farm conditions.

Frequently Asked Questions

Q: The pump's rotation becomes stiff when transferring thick machine oil. How to fix this?

A: Solutions include warming the oil to 35-45℃, lubricating the Viton seal, and checking for inlet clogs.

Q: Can the pump transfer Adblue and then gasoline without cleaning?

A: No. Always clean thoroughly between incompatible liquids to prevent contamination and pump damage.

Q: The self-priming function fails to draw liquid from a 200-gal drum. What's the issue?

A: Check for air leaks, ensure proper tube length (use all 3 PP tubes), or manually prime with 300ml of liquid.

Q: Is the pump's PP material safe for transferring edible liquids?

A: Yes, when properly cleaned and sanitized. The PP material is food-grade compatible.
