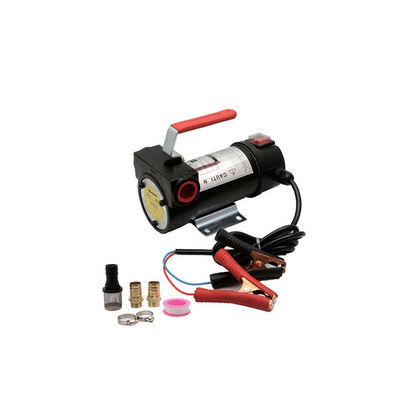

YD51-006A DC Electric Oil Pump:50L/min,12V/24V,for Construction/Farms/Marinas

Large Image : YD51-006A DC Electric Oil Pump:50L/min,12V/24V,for Construction/Farms/Marinas

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD51-006A

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Highlight:

12V DC electric oil pump

24V hydraulic oil pump

50L min construction oil pump

YD51-006A DC Electric Oil Pump: 50L/min, 12V/24V for Construction/Farms/Marinas

Product Specifications

Parameter Category	Specific Specification
Model	YD51-006A (DC electric oil pump kit, smart handheld design, engineered for diesel/kerosene transfer)
Product Type	DC-powered rotary vane electric oil pump kit with high-power copper motor and cast iron durability
Electrical Specifications	Voltage: Dual-voltage (12V / 24V) Motor Coil Material: 100% full copper Power: 175W Load Current: 10 Amps Power Cable Length: 2m
Flow & Head Performance	Flow Rate: 50 L/min Pump Head: 7m Suction Head: 3m Self-Priming: Yes
Structural & Material Details	Casing: Cast iron Pump Type: Rotary vane pump with steel rotor Impeller: Cast iron Inlet/Outlet Diameter: 25mm Built-in Components: Bypass valve, filter, dirty oil viewer
Applicable Liquids	Diesel oil, kerosene (prohibited for gasoline)

Key Features

High-Power Full-Copper Motor: 175W full-copper motor for fast liquid suction with low heat generation
Dual-Voltage Design: Compatible with both 12V and 24V power sources
Durable Cast Iron Construction: Resists wear and corrosion from diesel/kerosene
Built-In Safety Features: Bypass valve, accessible filter, and dirty oil viewer
Fast Flow & Self-Priming: 50 L/min transfer rate with 3m self-priming suction

Application Scenarios

Construction Site Machinery Refueling

Refuels 8 excavators (150L each) in approximately 24 minutes
Compatible with 24V machinery batteries
Durable construction withstands site impacts

Agricultural Farm Tractor Fleet Refueling

Refuels 12 tractors (80L each) in approximately 19 minutes
Works with 12V vehicle batteries
Portable for field use (23kg weight)

Boat Fuel Tank Refueling

Refuels 10 small boats (60L each) in approximately 12 minutes
Supports vertical transfer to 5m-high fuel tanks
Cast iron casing resists saltwater corrosion

Frequently Asked Questions

Q: The pump's flow rate drops when using 12V vs. 24V. Is this normal?

A: Yes, minor flow differences are normal. At 12V, flow reduces to ~45 L/min (vs. 50 L/min at 24V). Ensure battery is fully charged and hoses are straight for optimal performance.

Q: Can the pump be modified to transfer gasoline?

A: No. Modifying for gasoline is extremely dangerous due to flammability risks and material incompatibility. The pump is strictly for diesel/kerosene only.

Q: The self-priming function fails to work. How to troubleshoot?

A: Check for air leaks in hoses, clean the filter, or pour 200ml of diesel into the inlet to create initial vacuum.

Q: How to maintain the pump for long-term use?

A: Clean after each use, keep motor dry, store properly, and replace worn parts with original components.
