YD51-006C DC Electric Oil Pump:70L/min,5m/10m,12V/24V,for Sites/Fleets/Marinas

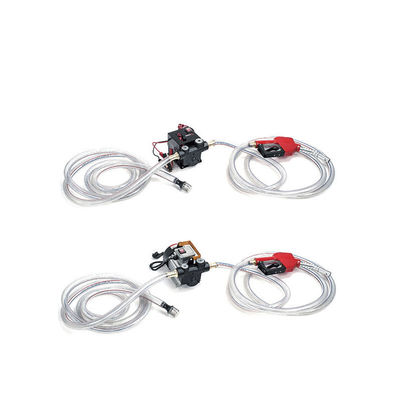

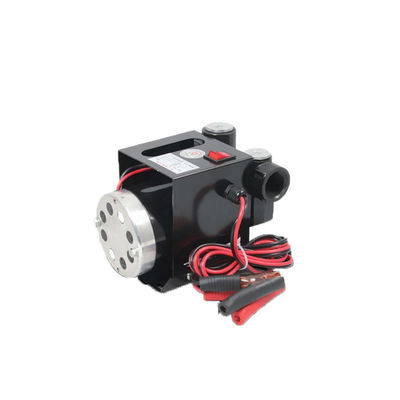

Large Image : YD51-006C DC Electric Oil Pump:70L/min,5m/10m,12V/24V,for Sites/Fleets/Marinas

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD51-006C

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Voltage::	Dual-voltage	Power:	550W
Motor Protection:	IP54 Rating (dustproof And Splash-proof)	Flow Rate:	70 L/min
Pump Lift::	10m	Suction Head:	5m
Highlight:	12V DC electric oil pump , 24V high flow oil pump , marine DC oil transfer pump

YD51-006C DC Electric Oil Pump: 70L/min, 5m/10m, 12V/24V for Sites/Fleets/Marinas

Product Specifications

Parameter Category	Specific Specification
Model	YD51-006C (High-power DC electric oil pump kit, engineered for heavy-duty diesel/kerosene transfer)
Product Type	High-performance rotary vane DC electric oil pump kit with 550W full-copper motor and cast iron durability
Electrical Parameters	Voltage: Dual-voltage (12V / 24V DC) Power: 550W (high torque for fast suction) Motor Protection: IP54 rating (dustproof and splash-proof)
Flow & Head Performance	Flow Rate: 70 L/min (empties 200-gal drum in ~10.8 minutes) Pump Lift: 10m (vertical transfer to tall tanks) Suction Head: 5m (reaches bottom of deep barrels)
Structural & Material Details	Casing: Cast iron (anti-impact, corrosion-resistant) Pump Core: Rotary vane design with steel rotor Built-in Features: Bypass valve, accessible filter, dirty oil viewer

Performance Highlights

550W High-Torque Motor: Enables 70 L/min high-flow transfer with 8+ hours continuous operation
12V/24V Dual-Voltage: Compatible with both light vehicle and heavy-duty machinery batteries
Extended 5m Suction & 10m Lift: Minimizes residual oil and supports vertical transfer
Cast Iron & Steel Construction: Ensures 12+ year service life in harsh industrial conditions

Application Scenarios

Large Construction Site Refueling:

3 pumps can refuel 35 machines (200L each) in 1.8 hours with 24V power

Agricultural Fleet Refueling:

2 pumps handle 50 machines daily from 5m-deep underground tanks with 12V power

Commercial Marina Fueling:

2 pumps service 15 yachts and 20 boats daily with 8m vertical lift using 12V power

Frequently Asked Questions

Q: The pump's flow rate is slightly lower than 70 L/min when using 12V. Is this normal?

A: Yes, this is within specifications. At 12V, flow reduces to ~65 L/min. Ensure full battery charge and clean filters for optimal performance.

Q: Why is gasoline strictly prohibited?

A: Gasoline poses explosion risks and damages pump materials. Use only diesel or kerosene.
