12V/24V DC Diesel Pump: 50L/min, IP55, Cast Iron, for Farms/Sites/Fleets
Product Specifications
| Parameter Category | Specific Specification |
| Model | Generic 12V/24V DC Self-Priming Diesel Electric Fuel Transfer Pump (engineered for diesel/kerosene transfer, ideal for agricultural machinery, tractors, construction equipment, and mobile fueling tasks) |
| Product Type | DC-powered self-priming electric fuel transfer pump, integrating "IP55 protection + cast iron durability + complete accessory kit" for safe, portable liquid transfer |
| Electrical Parameters | - Voltage: Dual-voltage (12V / 24V DC, compatible with vehicle batteries and small industrial power supplies)
- Power: 175W (stable torque for efficient fuel suction and transfer)
- Protection Rating: IP55 (dustproof, water jet-resistant, suitable for outdoor and harsh environments)
- Safety Feature: Built-in bypass valve (prevents overpressure damage to the pump and hoses)
|
| Flow & Head Performance | - Flow Rate: 0-50 L/min (adjustable, empties a 200-gal diesel drum in ~15 minutes at max flow)
- Suction Head: 3m (reaches the bottom of standard fuel barrels, minimizes residual fuel)
- Lift (Head): 7m (supports vertical transfer to machinery fuel tanks or small storage reservoirs)
- Self-Priming: Yes (no pre-filling required, saves setup time for on-site use)
|

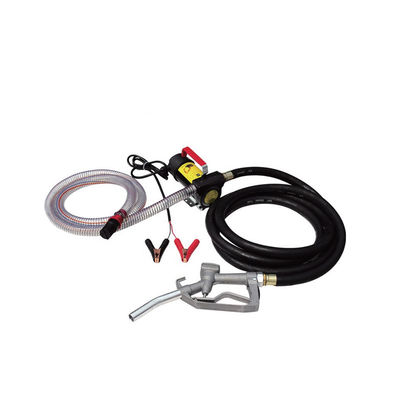

| Accessory Kit | - Hoses: Suction Hose (2m length, durable, compatible with diesel/kerosene); Delivery Hose (4m length, flexible for long-distance transfer)
- Nozzle: 1* Manual Nozzle (controls fuel flow, prevents spills during refueling)
- Filters: Inferred compatible with external filters (to ensure clean fuel flow, as per product description)
|
| Structural & Material Details | - Casing & Impeller: Cast iron (anti-impact, corrosion-resistant to diesel/kerosene, withstands heavy use)
- Testing Certification: Passed strict temperature, resistance, and anti-shock performance tests (ensures reliability)
- Applicable Liquids: Diesel oil, kerosene (strictly prohibited for gasoline and low flash point mediums due to flammability risks)
|
| Packaging & Order Info | - Packing: 2 sets/CTN; Package Dimensions: 56*45.5*31.5cm (reinforced carton with anti-collision foam)
- Weight: N.W. 17kg / G.W. 18kg (2-person portable, easy to transport between workstations)
- MOQ: 100 PCS
|
Performance Test Results
| Test Item | Test Condition | Test Result |
| Flow Stability | Operate at 12V/24V to transfer diesel at max flow (50 L/min) for 2 hours | Flow rate remains consistent; no motor overheating (surface temp ≤60℃); bypass valve functions normally |
| IP55 Protection | Expose the pump to dust (8 hours) and water jets (IP55 standard, 10 minutes) | No dust ingress into motor; no water damage to electrical components; pump operates as usual |
| Self-Priming & Suction Efficiency | Test suction from 3m head with diesel; measure time to start flow | Self-primes in 10 seconds; maintains stable flow until the barrel is empty (residual fuel ≤2L) |
| Durability | Run 50 continuous 1-hour cycles with kerosene; inspect cast iron components | Cast iron casing/impeller no wear or corrosion; hoses remain flexible; manual nozzle controls flow smoothly |
Key Features and Benefits
- Dual-Voltage Flexibility & IP55 Protection: Works with both 12V and 24V systems, with weather-resistant design for outdoor use
- Cast Iron Durability: Rugged construction withstands impacts and resists corrosion for long service life
- Built-In Safety: Bypass valve prevents overpressure damage during operation
- Complete Accessory Kit: Includes all necessary hoses and nozzle for immediate use
- Self-Priming Convenience: No pre-filling required, saving setup time
Application Scenarios
Agricultural Farm Tractor Refueling
Ideal for farms with multiple tractors needing frequent refueling from storage barrels in the field.
- Connects directly to tractor's 12V battery
- 2m suction hose reaches barrel bottoms
- Refuels 100L in approximately 2 minutes
- IP55 protection handles outdoor conditions
Construction Site Machinery Fueling
Perfect for construction sites with mixed 12V and 24V equipment needing reliable fueling in dusty conditions.
- Dual voltage supports both 12V and 24V machinery
- Cast iron construction withstands site impacts
- 7m lift capacity fills high excavator tanks
- Bypass valve prevents overpressure damage
Mobile Fueling for Small Fleets
Cost-effective solution for small delivery companies needing portable fueling without fixed stations.
- Compact and portable for depot use
- 4m delivery hose reaches vehicle tanks easily
- Self-priming design saves setup time
- Complete kit prevents spills and mess
Frequently Asked Questions
Q: Why is the flow rate listed as "0-50 L/min"? Can I adjust it to a specific rate?
A: The flow is adjustable via the manual nozzle. Partially close the nozzle to reduce flow (e.g., 20 L/min for small tanks) or fully open it for maximum flow (50 L/min for large machinery).
Q: Can I use this pump with biodiesel blends (e.g., B20)?
A: The pump is compatible with most biodiesel blends (B5 to B20). For higher concentrations, test with small amounts first and clean with standard diesel after use. Avoid B100 unless confirmed by manufacturer.
Q: The pump stops working suddenly during use. What's the issue?
A: Common causes include: 1) Bypass valve activation (check for kinked hoses or closed nozzle), 2) Loose battery connections, or 3) Clogged filters. These issues are typically easy to resolve.
Q: How to store the pump during winter (freezing temperatures)?
A: For winter storage: 1) Drain all fuel from the pump, 2) Store hoses indoors to prevent freezing, and 3) Keep the pump in a dry, heated area with a light coat of anti-rust oil on cast iron parts.
Note: This pump is strictly for diesel and kerosene only. Never use with gasoline or other low flash point fuels due to flammability risks.
