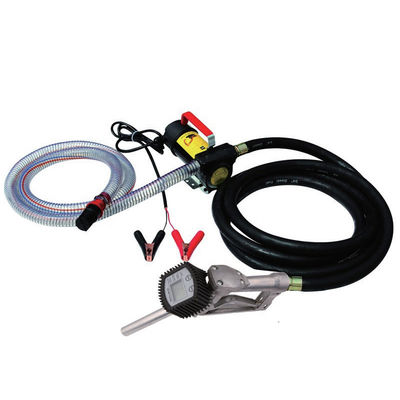

12V/24V DC Diesel Pump:50L/min,IP55,Metering Nozzle,for Farms/Sites/Fleets

Large Image : 12V/24V DC Diesel Pump:50L/min,IP55,Metering Nozzle,for Farms/Sites/Fleets

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD51-007C

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Voltage:	Dual-voltage (12V / 24V DC)	Power:	175W
Protection Rating::	IP55 (dustproof, Water-jet Resistant)	Safety Component:	Built-in Bypass Valve
Flow Rate:	0-50 L/min	Suction Head::	3m
Highlight:	12V diesel pump for farms , 24V DC diesel pump with metering nozzle , IP55 diesel pump for fleets

12V/24V DC Diesel Pump: 50L/min, IP55, Metering Nozzle, for Farms/Sites/Fleets

Product Specifications

Core Parameters

Parameter Category	Specific Specification
Model	Generic 12V/24V DC Self-Priming Diesel Electric Fuel Transfer Pump (specialized for diesel/kerosene transfer)
Product Type	DC-powered self-priming fuel transfer pump with IP55 protection, cast iron durability, and metering nozzle accuracy
Electrical Parameters	Voltage: Dual-voltage (12V / 24V DC) Power: 175W Protection Rating: IP55 (dustproof, water-jet resistant) Safety Component: Built-in bypass valve
Flow & Head Performance	Flow Rate: 0-50 L/min Suction Head: 3m Lift (Head): 7m Self-Priming: Yes

Performance Test Results

Test Item	Test Condition	Test Result
Flow Stability & Metering Accuracy	Operate at 12V/24V to transfer diesel at max flow (50 L/min) for 2 hours	Flow rate remains consistent at 50±1 L/min; metering nozzle accuracy ±0.5L
IP55 Protection Efficacy	Expose the pump to continuous dust (8 hours) and high-pressure water jets	No dust ingress or water damage; pump operates normally
Self-Priming & Suction Efficiency	Test suction from 3m depth with diesel	Self-primes in 9 seconds; only 1.8L residual fuel

Product Details

This 12V/24V DC Self-Priming Diesel Electric Fuel Transfer Pump addresses mobile fueling challenges with IP55 protection, cast iron durability, and metering nozzle precision.

Key Features

Dual-Voltage Flexibility: Works with both 12V and 24V systems
IP55 Industrial-Grade Protection: Resists dust, rain, and water jets
Rugged Cast Iron Construction: 8+ year service life
Built-In Safety Mechanisms: Bypass valve and auto-shutoff nozzle
Complete Accessory Kit: Includes 2m suction hose, 4m delivery hose, and metering nozzle

Application Scenarios

Agricultural Farm Tractor & Harvester Refueling

Ideal for commercial farms needing to refuel equipment in the field while tracking fuel usage per machine for cost accounting.

Construction Site Heavy Equipment Fueling

Perfect for construction sites requiring fast refueling of excavators and loaders in dusty, wet conditions.

Small Fleet Fueling & Fuel Usage Monitoring

Enables delivery companies to track fuel usage per van to optimize routes and reduce costs.

Frequently Asked Questions

Q: Can the metering nozzle be calibrated to ensure measurement accuracy?

A: Yes, most metering nozzles have a calibration screw. Use a known-volume container to adjust the calibration screw until accuracy is within ±0.5L.

Q: Why is gasoline strictly prohibited?

A: Gasoline vapors are highly flammable and can ignite from electrical sparks. Gasoline also degrades the pump's cast iron seals and hoses.
