12V/24V DC Diesel Pump:50L/min,IP55,Metering Nozzle,for Farms/Sites/Fleets

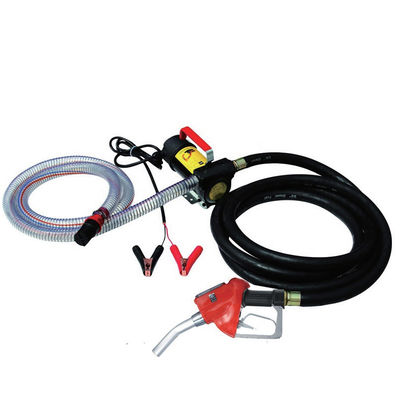

Large Image : 12V/24V DC Diesel Pump:50L/min,IP55,Metering Nozzle,for Farms/Sites/Fleets

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD51-007D

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Voltage:	Dual-voltage	Power::	175W
Protection Rating:	IP55 (dustproof, Water-jet Resistant)	Safety Feature:	Built-in Bypass Valve
Flow Rate:	0-50 L/min (adjustable Via Metering Nozzle)	Suction Head::	3m (residual Fuel ≤2L)
Highlight:	12V DC diesel pump for farms , 24V diesel pump with metering nozzle , IP55 diesel pump for fleets

12V/24V DC Self-Priming Diesel Electric Fuel Transfer Pump

Professional fuel transfer solution for farms, construction sites, and vehicle fleets

Product Specifications

Core Parameters

Parameter Category	Specific Specification
Model	Generic 12V/24V DC Self-Priming Diesel Electric Fuel Transfer Pump (specialized for diesel/kerosene transfer)
Product Type	DC-powered self-priming fuel transfer pump with IP55 protection, cast iron durability, and metering nozzle precision
Electrical Parameters	Voltage: Dual-voltage (12V / 24V DC) Power: 175W (stable torque for consistent fuel transfer) Protection Rating: IP55 (dustproof, water-jet resistant) Safety Feature: Built-in bypass valve
Flow & Head Performance	Flow Rate: 0-50 L/min (adjustable via metering nozzle) Suction Head: 3m (residual fuel ≤2L) Lift (Head): 7m Self-Priming: Yes (no pre-filling required)
Structural & Material Details	Casing & Impeller: Cast iron (anti-impact, corrosion-resistant) Service Life: 8+ years Applicable Liquids: Diesel oil, kerosene (not for gasoline)

Performance Test Results

Test Item	Test Condition	Test Result
Flow Stability & Metering Accuracy	Operate at 12V/24V (50L/min) for 2 hours	Flow remains 50±1 L/min; metering accuracy ±0.5L
IP55 Protection	Expose to dust (8h) + water jets (10min)	No dust/water ingress; normal operation
Self-Priming & Suction	Test suction from 3m depth with diesel	Self-primes in 9 seconds; residual fuel 1.8L
Durability	50 continuous 1-hour cycles with kerosene	No wear on cast iron parts; nozzle retains accuracy

Key Features

Dual-Voltage Operation: Compatible with both 12V and 24V systems
IP55 Protection: Weather-resistant for outdoor use in harsh environments
Rugged Cast Iron Construction: Durable and long-lasting with 8+ year service life
Precision Metering Nozzle: Tracks fuel volume and auto-shuts off when full
Complete Accessory Kit: Includes 2m suction hose and 4m delivery hose

Application Scenarios

Farm Machinery Refueling

Ideal for farms with mixed 12V and 24V equipment. The metering nozzle enables precise fuel tracking for cost control, while the portable design suits field operations.

Construction Site Equipment Fueling

Fast 50L/min flow rate keeps heavy machinery operational with minimal downtime. IP55 rating withstands dust and rain common on job sites.

Small Fleet Fueling

Efficient solution for delivery companies needing to refuel multiple vehicles quickly. Metering data helps optimize fuel consumption across the fleet.

Frequently Asked Questions

Can the metering nozzle be calibrated?

Yes. Use a 10L known-volume container to check and adjust the calibration screw until accuracy is ±0.5L.

Why can't it be used for gasoline?

Gasoline vapors are explosive and degrade cast iron seals. Use only with diesel or kerosene - gasoline use voids warranty.

Flow rate drops suddenly - how to fix?

1. Clean nozzle/filter; 2. Check for kinked hoses; 3. Ensure battery is fully charged.

How to store in winter?

1. Drain residual fuel; 2. Clean nozzle/hoses; 3. Coat cast iron with anti-rust oil; 4. Store in dry area above 0℃.
