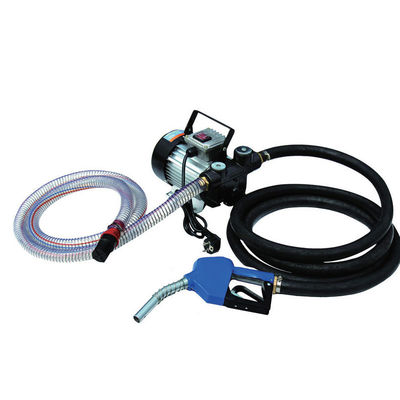

110V-220V-240V AC Diesel Pump: 60L/min, IP55, Auto Nozzle
Professional-grade electric fuel transfer pump designed for workshops, depots, and farms with triple-voltage compatibility, high flow rate, and durable construction.
Product Specifications
Core Parameters
| Parameter Category |
Specific Specification |
| Model |
Generic 110V-220V-240V AC Diesel Electric Fuel Transfer Pump (specialized for diesel/kerosene transfer) |
| Product Type |
AC-powered self-priming fuel transfer pump with triple-voltage compatibility, 550W motor, IP55 protection, and auto nozzle |
| Electrical Parameters |
- Voltage: 110V-220V-240V AC (global power grid compatible)
- Motor: 550W full-copper coil (high torque, low heat)
- Load Current: 2.5 Amps (stable operation)
- Power Cable: 2m length
- Protection Rating: IP55 (dustproof, water-jet resistant)
|
| Flow & Head Performance |
- Flow Rate: 60 L/min (empties 200-gal drum in ~12.6 minutes)
- Pump Head: 10m (vertical transfer capability)
- Suction Head: 5m (reaches deep barrel/tank bottoms)
- Self-Priming: Yes (no pre-filling required)
|
| Structural & Material Details |
- Casing & Impeller: Cast iron (anti-impact, corrosion-resistant)
- Safety Component: Built-in bypass valve (overpressure protection)
- Applicable Liquids: Diesel oil, kerosene (not for gasoline/low flash point mediums)
|
Performance Test Results
| Test Item |
Test Condition |
Test Result |
| Voltage Compatibility & Flow Stability |
Operate at 110V/220V/240V for 3 hours (60 L/min) |
Flow rate remains 60±1 L/min; motor temp ≤65℃ |
| IP55 Protection |
Dust (10h) + high-pressure water jets (15min) |
No ingress; normal operation after testing |
| Auto Nozzle Efficacy |
Refuel 50L tank using auto nozzle |
Nozzle shuts off automatically; no spills |
| Durability |
60 continuous 1-hour cycles with kerosene |
No wear/corrosion; components retain function |
Key Features
- Global Voltage Compatibility: Works with 110V, 220V, and 240V AC power without converters
- 550W Full-Copper Motor: Delivers 60 L/min flow rate with continuous 8+ hour operation
- Rugged Construction: Cast iron casing and impeller for impact and corrosion resistance
- Auto Nozzle: Prevents spills with automatic shut-off when tank is full

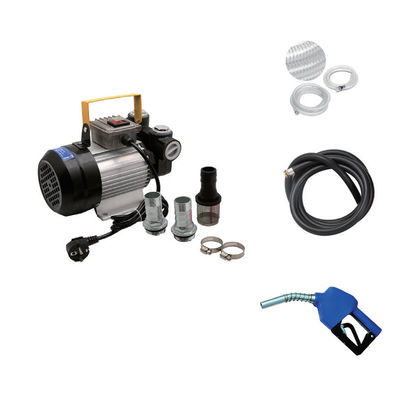

- Complete Kit: Includes 2m suction hose, 4m delivery hose, and auto nozzle
Application Scenarios
Industrial Workshop Machinery Fueling
Efficiently refuel heavy machinery with 300L diesel tanks in industrial settings:
- 220V AC compatible with workshop power
- 5m suction capability for underground tanks
- 300L transferred in ~5 minutes per machine
- IP55 rating handles workshop dust and conditions
Commercial Fuel Depot Refueling
High-volume refueling for delivery trucks and fleet vehicles:
- 240V AC compatible with depot power
- 150L transferred in ~2.5 minutes per truck
- Auto nozzle prevents spills during high-volume operations
- Cast iron construction reduces maintenance costs
Large Farm Harvester Fleet Refueling
Portable field refueling solution for agricultural equipment:
- 110V AC compatible with field generators
- 400L transferred in ~6.7 minutes per harvester
- 26kg weight allows for two-person portability
- IP55 rating handles outdoor field conditions
Frequently Asked Questions
Q: Do I need a plug adapter for different countries?
A: Use a region-specific plug adapter (not a voltage converter). The pump works with 110V-220V-240V AC, so adapters for North American, European, or Asian plugs are sufficient.
Q: Can the auto nozzle be adjusted for partial refueling?
A: No - the auto nozzle shuts off only when fuel touches its sensor. For partial refueling, manually release the nozzle trigger once the desired volume is reached.
Q: Flow rate drops in cold weather - how to fix?
A: Solutions include warming diesel to 15-25℃, insulating PVC hoses, and cleaning the auto nozzle to restore 60 L/min flow.
Q: How to maintain the pump long-term?
A: Regular maintenance includes flushing with clean diesel, keeping the motor dry, storing above 0℃, and using original parts for replacements.
