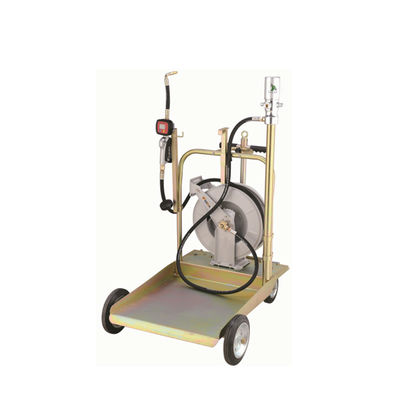

YD51-014A 220KG Trolley Oil Kit 18L/Min 14m Reach,±0.5% for Warehouses/Workshops/Fleets

Large Image : YD51-014A 220KG Trolley Oil Kit 18L/Min 14m Reach,±0.5% for Warehouses/Workshops/Fleets

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD51-014A

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Compression Ratio:	5:1 (optimized For High-viscosity Oil Up To SAE240)	Connections::	Air Inlet (F1/4"G), Oil Out (M1/2"G)
Pressure Ratings:	Working Pressure (8 Bar), Max. Flow Pressure (40 Bar)	Performance:	Air Consumption (125 L/Min), Relative Capacity (14 L/Min)
Load Capacity:	180-220KGS (fits Irregular-shaped 220KGS Trade Drums)	Mobility::	2 Fixed Wheels + 2 Casters For Smooth Movement
Highlight:	220KG trolley oil kit , 18L/Min oil kit for workshops , 14m reach oil kit

YD51-014A 220KG Trolley Oil Kit: 18L/Min, 14m Reach, ±0.5% Accuracy

Specialized for high-viscosity oil transfer in warehouses, workshops, and fleet maintenance environments.

Product Specifications

Component Category	Specific Specification
Model	YD51-013B (180-220KGS Trolley-Mounted 5:1 Oil Dispenser Kit)
Product Type	Integrated system: Air-Operated Oil Pump + Heavy-Duty Trolley + Dispensing Hose + Digital Meter
Air-Operated Oil Pump	Compression Ratio: 5:1 (optimized for high-viscosity oil up to SAE240) Connections: Air Inlet (F1/4"G), Oil Out (M1/2"G) Pressure Ratings: Working Pressure (8 Bar), Max. Flow Pressure (40 Bar) Performance: Air Consumption (125 L/Min), Relative Capacity (14 L/Min)
Heavy-Duty Trolley	Load Capacity: 180-220KGS (fits irregular-shaped 220KGS trade drums) Mobility: 2 fixed wheels + 2 casters for smooth movement Finish: Zinc-plated for anti-rust protection

Key Features

5:1 Compression Pump: Handles SAE240 viscosity with 40 Bar max pressure and 42mm suction tube
220KGS Heavy-Duty Trolley: Reinforced steel frame with drum clamping device for safety
Precision Meter: ±0.5% accuracy for accurate inventory tracking and billing
Durable Hose: 4m SAE 10R2AT hose with 138 Bar pressure rating

Performance Testing

Test Item	Test Condition	Test Result
High-Viscosity Transfer	Transfer SAE240 oil from 220KGS drum for 2 hours	Flow remains 14±0.5 L/Min; residual ≤9L
Dispensing Accuracy	Dispense 20L, 30L, 50L of SAE180 oil	All within ±0.5% accuracy

Application Scenarios

Industrial Plant Gearbox Refueling: Transfer 60L SAE240 oil in ~4.3 minutes with precise measurement for inventory tracking.

Heavy Machinery Workshop Maintenance: Service 10 excavators daily with 45L SAE180 oil transfers in ~3.2 minutes each.

Frequently Asked Questions

Q: Pump clogs with SAE240 oil. How to fix?

A: Ensure air pressure is 8 Bar, warm oil to 30-40℃ to reduce viscosity, and clean suction tube with diesel.

Q: How to maintain the pump long-term?

A: Flush with low-viscosity oil after use, clean suction tube monthly, lubricate connections quarterly, and store in dry area.
