YD51-014B 220KG Trolley Oil Kit:14L/Min,14m Reach,5:1 Ratio,for Plants/Workshops/Farms

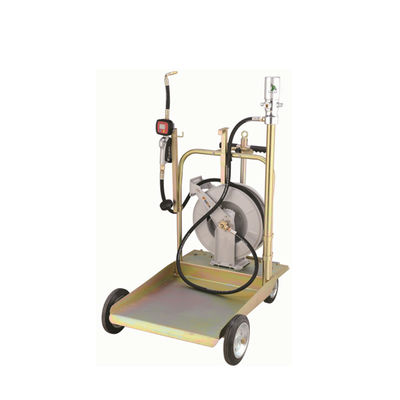

Large Image : YD51-014B 220KG Trolley Oil Kit:14L/Min,14m Reach,5:1 Ratio,for Plants/Workshops/Farms

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD51-014B

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Compression Ratio::	5:1 (optimized For High-viscosity Oil)	Connections:	Air Inlet (F1/4"G), Oil Out (M1/2"G)
Pressure Ratings::	Working Pressure (8 Bar), Max. Flow Pressure (40 Bar)	Performance::	Air Consumption (125 L/Min), Relative Capacity (14 L/Min)
Applicable Oils::	Gear Oil, Hydraulic Oil, Industrial Heavy Oil (up To SAE240 Viscosity)
Highlight:	220KG trolley oil kit , 14L/Min hydraulic oil kit , workshop hydraulic trolley kit

YD51-014B 220KG Trolley Oil Kit:14L/Min,14m Reach,5:1 Ratio,for Plants/Workshops/Farms

Product Overview

The YD51-014B is a complete trolley-mounted oil filling system designed for high-viscosity oil transfer in industrial plants, heavy machinery workshops, and large farms. This integrated solution combines a 5:1 air-operated oil pump, heavy-duty trolley, 4m dispensing hose, 10m hose reel, and digital meter for precise large-volume oil dispensing.

Key Specifications

Component	Specifications
Model	YD51-014B (180-220KGS Oil Drum Trolley with 5:1 Oil Pump & 10m Hose Reel)
Product Type	Integrated system: Air-Operated Oil Pump + Heavy-Duty Trolley + 4m Dispensing Hose + 10m Hose Reel + Digital Meter
Air-Operated Oil Pump	Compression Ratio: 5:1 (optimized for high-viscosity oil) Connections: Air Inlet (F1/4"G), Oil Out (M1/2"G) Pressure Ratings: Working Pressure (8 Bar), Max. Flow Pressure (40 Bar) Performance: Air Consumption (125 L/Min), Relative Capacity (14 L/Min) Applicable Oils: Gear oil, hydraulic oil, industrial heavy oil (up to SAE240 viscosity)
Heavy-Duty Trolley	Load Capacity: 180-220KGS (fits irregular-shaped drums) Mobility: 2 fixed wheels + 2 casters for smooth movement Features: Drum clamping device + pump support Finish: Zinc-plated for anti-rust protection Frame: Reinforced steel construction
Dispensing Hose & Hose Reel	4m Dispensing Hose: ID 1/2", Working Pressure 138Bar 10m Dual-Arm Hose Reel: Working Pressure 20/135Bar Total Reach: 14m (4m hose + 10m reel)
Digital Meter	Flow Range: 1-25 L/Min Accuracy: ±0.5% Temperature Range: -20℃ ~ +60℃

Performance Highlights

5:1 Pump: High-Viscosity Expert

40 Bar Max Pressure: Effortlessly transfers SAE240 oil without clogging
Efficient Suction: 42mm tube minimizes residual oil (≤9L per 220KGS drum)

14m Reach & Convenient Hose Storage

Extended Filling Range: 4m fixed hose + 10m retractable reel enables filling from 14m away
Dual-Arm Hose Reel: Retracts smoothly to avoid tangles

Heavy-Duty Trolley & Precise Meter

Zinc-Plated 220KGS Trolley: Reinforced frame and clamping device secure heavy drums
± 0.5% Accuracy Meter: Precise measurement for large-volume inventory

Application Scenarios

Industrial Plant Gearbox Refueling

Refuel 8 industrial gearboxes (60L SAE240 each) monthly with 220KGS drums. The 14m reach fits plant layouts while the 5:1 pump avoids clogging with high-viscosity oil.

Heavy Machinery Workshop Maintenance

Service 10 excavators (45L SAE180 each) daily. The stable trolley reduces safety risks while the fast transfer meets daily demand.

Large Farm Tractor Fleet Service

Seasonal servicing of 15 tractors (30L SAE200 each). The outdoor-friendly zinc-plated trolley resists humidity in farm environments.

Frequently Asked Questions

Q: Pump clogs with SAE240 oil. How to fix?

A: Ensure air pressure is 8Bar, warm oil to 30-40℃ to reduce viscosity, and clean suction tube and hose with diesel to remove residue.

Q: Can the trolley hold drums smaller than 180KGS?

A: Yes. Adjust the clamping device and add weight to the trolley's empty side to balance smaller drums.

Q: How to maintain the pump and reel for long-term use?

A: Flush pump with low-viscosity oil after use, clean suction tube monthly, flush hose with clean oil, inspect connections for leaks, and store in dry area with reel fully retracted.
