YEEDA YD52-005A/B/C Grease Pump:2L/min,8-16L,2000-3000psi,for Construction/Plants/Ports

YEEDA YD52-005A/B/C Grease Pump:2L/min,8-16L,2000-3000psi,for Construction/Plants/Ports
YEEDA YD52-005A/B/C Grease Pump:2L/min,8-16L,2000-3000psi,for Construction/Plants/Ports

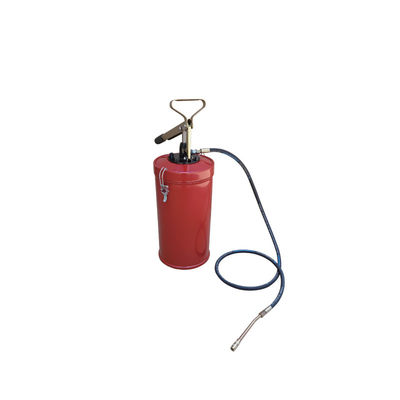

Large Image :  YEEDA YD52-005A/B/C Grease Pump:2L/min,8-16L,2000-3000psi,for Construction/Plants/Ports

Product Details:
Place of Origin: Zhejiang，China
Brand Name: YEEDA
Certification: CE
Model Number: YD52-005ABC
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: Carton Box or Crate
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: 500PCS/MONTH
Contact Now
Detailed Product Description
Highlight:

2L/min grease pump for construction

,

high-pressure grease pump 3000psi

,

portable grease pump for plants

YEEDA YD52-005A/B/C Grease Pump: 2L/min, 8-16L, 2000-3000psi
Product Specifications
Core Parameter Summary
Model Capacity Hose Length Transmission Pressure Flow Rate Packaging & Weight Dimensions MOQ
YD52-005A 8L 2m 2000psi - 3000psi 2 L/min 2 PCS/CTN; N.W. 9kg / G.W. 10kg 56×36.5×17cm 100 SET
YD52-005B 12L 2m 2000psi - 3000psi 2 L/min 2 PCS/CTN; N.W. 9kg / G.W. 10kg 56×36.5×17cm 100 SET
YD52-005C 16L 2m 2000psi - 3000psi 2 L/min 2 PCS/CTN; N.W. 9kg / G.W. 10kg 56×36.5×17cm 100 SET
Functional & Material Specifications
Specification Category Details
Operating Type Manual (piston-driven, no external power required) - suitable for areas with unstable electricity
Hose Performance 2m durable, high-pressure resistant hose (compatible with 2000-3000psi); flexible to reach narrow machinery lubrication points
Applicable Fluids Grease, heavy lubricating oil, and other medium-to-high viscosity lubricants (not for low-viscosity fluids like diesel)
Safety Features Built-in pressure relief valve (prevents overpressure damage); leak-proof piston seals (reduces fluid waste)
Mobility Compact size (56×36.5×17cm) and lightweight (9kg N.W.) - easy to carry or move with a handcart between workstations
Durability Main body: High-impact plastic + metal components (resists wear from daily use); hose: Oil-resistant rubber (service life 3+ years)
Product Details

The YEEDA YD52-005A/B/C Grease Transfer Pump solves key challenges in machinery lubrication with its 2 L/min fast flow, 3 capacity options, and 2000-3000psi high pressure as core strengths.

Fast Flow & High Pressure: Efficiency for Heavy-Duty Use
  • 2 L/min Flow Rate: Outperforms standard manual grease pumps (typically 1-1.5 L/min), cutting lubrication time by 25%.
  • 2000-3000psi Transmission Pressure: Ensures medium-to-high viscosity grease is pushed into tight machinery gaps.
Flexible Capacity & Mobility: Adapt to Diverse Needs
  • 8L/12L/16L Options: Choose the right capacity for your operation size.
  • Compact & Lightweight Design: Easy to transport to lubricate scattered equipment.
Safety & Durability: Reliability for Long-Term Use
  • Built-In Safety Features: Pressure relief valve and leak-proof piston seals.
  • Tough Construction: High-impact plastic body and oil-resistant rubber hose.
Application Scenarios
Construction Site Excavator Lubrication

Efficiently lubricate 12 excavators daily with the YD52-005B (12L capacity). The manual operation and mobility make it ideal for construction sites without fixed power.

Manufacturing Plant Conveyor Belt Maintenance

Maintain 20 conveyor belts weekly with the YD52-005C (16L capacity). Fast flow reduces maintenance time while high pressure ensures thorough lubrication.

Port Crane Joint Lubrication

Lubricate 8 container cranes monthly with the YD52-005C (16L capacity). The outdoor-friendly design and manual operation suit port environments perfectly.

YEEDA YD52-005A/B/C Grease Pump:2L/min,8-16L,2000-3000psi,for Construction/Plants/Ports 0
Frequently Asked Questions
Q1: The pump's flow rate drops below 2 L/min. How to fix it?
Reduced flow is usually due to clogging or pressure issues. Solutions:
  • Clean the Hose: Disconnect and flush with low-viscosity oil
  • Check Piston Seals: Replace worn seals with manufacturer-supplied kit
  • Ensure Full Capacity: Refill when grease level is below 10%
Q2: Can the pump be used for food-grade lubricants?
No. The pump's materials are not certified for food contact. Designed exclusively for industrial lubricants in non-food sectors.
Q3: The hose leaks at the connection point. What's the solution?
Fixes:
  • Tighten Connections: Use a wrench gently
  • Replace Gaskets: Check for cracks or wear
  • Inspect Hose Ends: Replace if damaged
Q4: How to store the pump during long periods of non-use (e.g., winter)?
Proper storage prevents damage:
  • Empty Grease: Drain all remaining grease
  • Clean Components: Wipe and flush with mineral spirits
  • Protect from Rust: Apply light coat of oil to metal parts
  • Store Dry: Keep in dry, ventilated area above 0℃
