YEEDA YD52-011 Grease Dispenser:180-220kg,50:1,12m Reel,for Plants/Yards/Fleets

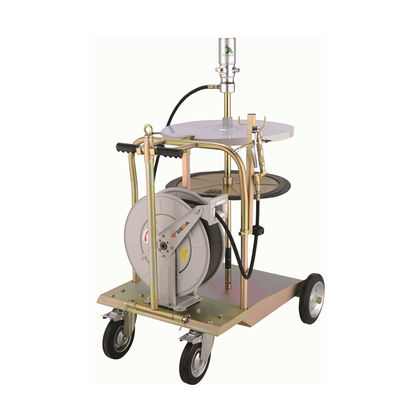

Large Image : YEEDA YD52-011 Grease Dispenser:180-220kg,50:1,12m Reel,for Plants/Yards/Fleets

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD52-011

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Model:	Grease Dispenser Kit,	Product Type:	Integrated System:
Integrated System::	940mm	Compression Ratio::	50:1
Connections:	Air Inlet	Pressure Ratings:	Working Pressure
Highlight:	grease dispenser 180-220kg capacity , grease dispenser 50:1 ratio , grease dispenser 12m reel

YEEDA YD52-011 Grease Dispenser: 180-220kg, 50:1, 12m Reel

Industrial-grade trolley-mounted grease dispensing system designed for plants, yards, and large fleet centers.

Product Specifications

Core Parameter Summary

Component Category	Specific Specification
Model	YEEDA YD52-011 (Trolley-Mounted Grease Dispenser Kit, specialized for 180-220kg large drums)
Product Type	Integrated system: Air-Operated Grease Pump + Galvanized Heavy-Duty Trolley + Dispensing Hose + Grease Gun + 12m Hose Reel + Drum Accessories
Air-Operated Grease Pump	Pump Length: 940mm (reaches bottom of 180-220kg tall drums) Compression Ratio: 50:1 (handles high-viscosity grease up to SAE240) Connections: Air Inlet (F1/4"G), Oil Out (M1/4"G) Pressure Ratings: Working Pressure (8 Bar), Max. Flow Pressure (400 Bar) Performance: Air Consumption (120 L/Min), Relative Capacity (800g/Min), Suction Tube Diameter (30mm)
Galvanized Heavy-Duty Trolley	Load Capacity: 180-220kg (fits large trade drums of various shapes) Mobility: 2 high-quality fixed wheels + 2 casters (smooth movement on concrete/industrial floors) Finish: Fully galvanized (anti-rust, corrosion-resistant to grease and humidity) Design: Modular structure (easy transport/storage); built-in pump support (secures pump during movement)

Performance Test Results

Test Item	Test Condition	Test Result
Large-Drum Grease Transfer	Transfer SAE240 grease from a 220kg drum for 3 hours	Flow remains 800g/Min; 400Bar pressure pushes grease into narrow gaps without clogging
Long-Distance Greasing	Use the 12m hose reel to grease a machine 10m away	Smooth grease flow; reel retracts easily after use; no pressure drop during transfer
Trolley Stability	Move the trolley (loaded with 220kg drum) across 150m industrial floor	Trolley maneuvers steadily; fixed wheels prevent tipping; galvanized finish resists scratches

Key Features

Heavy-Duty Trolley & 50:1 Pump

180-220kg Load Capacity: Galvanized trolley handles massive drums, eliminating the need for forklifts
50:1 Pump for Thick Grease: 400Bar max pressure transfers SAE240 grease for heavy machinery

12m Hose Reel & Flexible Gun

12m Swiveling Reel: Enables greasing from 12m away without repositioning the heavy trolley
4-Jaw Grease Gun: Triple swivel joint accesses tight spots with leak-free operation

Application Scenarios

Industrial Plant Heavy Machinery Greasing

Process: Secure 220kg drum to trolley, connect pump to air compressor, extend 12m reel to reach turbines, dispense 8kg grease in ~10 minutes per turbine.

Benefits: Heavy-duty trolley handles large drums; long reel fits plant layouts.

Large Fleet Maintenance Center

Process: Position trolley near fleet area, use 12m reel to service trucks 8-10m away, dispense 3kg in ~3.75 minutes per truck.

Benefits: Fast flow meets daily demand; long reel reduces trolley movement.

Frequently Asked Questions

Q: The hose reel is hard to retract. How to fix?

A: Clean the reel's tracks, lubricate moving parts, and ensure the hose is fully extended before retracting.

Q: Can the pump handle SAE300 grease?

A: No. The 50:1 ratio is optimized for SAE240. Use a 65:1 pump for SAE300.
