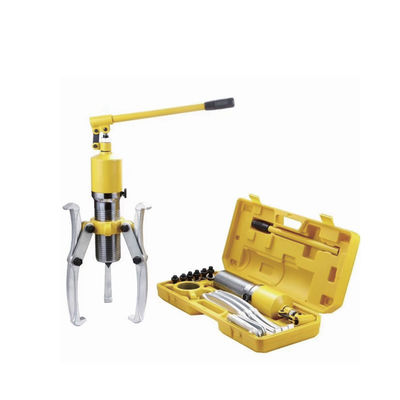

3-Jaws Hydraulic Gear Puller (CrV, 5-50T) – For Heavy Machinery/Auto/Marine, Strong & Flexible
Product Details
| Highlight |
hydraulic gear puller for heavy machinery,CrV steel gear puller 5-50T,heavy-duty gear puller for auto marine |
||
|---|---|---|---|
Product Description
Designed for heavy machinery, automotive, and marine applications, this robust and flexible gear puller delivers superior performance in demanding disassembly tasks.
The table below details the core specifications of the 3-Jaws Hydraulic Gear Puller, covering load capacity, pull distances, stroke, weight, and package size for accurate selection and storage.
| Model Number | Capacity | Lateral Max. Pull Distance (MM) | Longitudinal Max. Pull Distance (MM) | Axis Stroke | N.W./G.W | Package Size (MM) |
|---|---|---|---|---|---|---|
| YD66-001 | 5T | 50-200 | 140 | 50 | 7/7.6 | 420×290×90 |
| YD66-002 | 10T | 50-250 | 170 | 60 | 9/10.1 | 430×330×110 |
| YD66-003 | 20T | 100-350 | 205 | 60 | 15/16 | 440×350×130 |
| YD66-004 | 30T | 150-400 | 220 | 60 | 22.5/24.2 | 480×200×180 |
| YD66-005 | 50T | 200-500 | 250 | 60 | 32.5/34 | 520×250×220 |
- Dual-Jaw Versatility: Supports both 2-jaw and 3-jaw configurations for balanced clamping force on round/cylindrical parts or adaptation to irregularly shaped components.
- Ergonomic Design: Features a removable handle and 360-degree pressure direction adjustment for easy operation in restricted spaces.
- High-Safety Hydraulic Cylinder: One-piece solid steel molding design eliminates weak points, preventing oil leakage or cylinder deformation under heavy loads.
- CrV Steel Construction: Chrome-Vanadium steel components provide excellent toughness and wear resistance for long-term durability.
- Heavy-Duty Machinery Maintenance: Ideal for industrial motors, steel rolling machines, and mining equipment.
- Automotive Heavy-Duty Repair: Suitable for trucks, buses, excavators, and loaders.
- Marine Equipment Servicing: Designed for ship engines, propeller shafts, and pump systems.
- Power Generation Equipment: Effective for turbine components, generator rotors, and large pump bearings.
