Heavy-Duty Swivel Bench Vise with Anvil – For Auto Repair/Metalworking, High Clamping Force & Anti-Rust

Brand Name: YEEDA
Model Number: YD77-001-004
Place of Origin: Zhejiang,China
Certification: CE
Minimum Order Quantity: 50pcs
Supply Ability: 500PCS/MONTH
Delivery Time: 30-45DAYS
Payment Terms: T/T
Standard Packaging: Carton Box or Crate

Product Details


Model No.: YD77-001 Size: 4"(100 Mm)
A (mm): 100 B (mm): 127
C (mm): 87.5 D (mm): 72×70
Highlight

heavy-duty swivel bench vise

,

bench vise with anvil

,

anti-rust bench vise

Product Description

Heavy-Duty Swivel Bench Vise with Anvil – For Auto Repair/Metalworking, High Clamping Force & Anti-Rust
Product Specifications

Engineered for robust performance, available in four standard sizes to meet diverse industrial and workshop needs:

Model No. Size A (mm) B (mm) C (mm) D (mm) E (mm) QTY./CTN G.W./N.W (KGS) PACKAGE/CTN (CM)
YD77-001 4"(100 mm) 100 127 87.5 72*70 φ10-75.5 2 26/24.5 36*31*22
YD77-002 5"(125 mm) 125 140 95 78*78 φ10-75.5 1 17/16 43*19*23
YD77-003 6"(150 mm) 150 178 107 90*100 φ17-88.5 1 27/25 46*23*28
YD77-004 8"(200 mm) 200 200 115 95*100 φ17-88.5 1 31/29.5 50*24*29
Key Structural Features
  • Durable anvil for metalworking tasks like shaping, flattening, and bending small metal parts
  • 360-degree swivel base design allows flexible adjustment of the vise angle
  • High-strength steel construction ensures long-term resistance to wear and impact
  • Precision-machined jaws with serrated surfaces provide strong, non-slip clamping force
Core Performance Advantages
  • Heavy-Duty Load-Bearing Capacity: 8" model can handle up to 50 kN clamping force
  • Smooth Operation Mechanism: High-quality lead screw with fine threads for precise jaw movement
  • Corrosion Resistance: Electrostatic spraying and anti-rust plating for moisture protection
  • Easy Installation: Pre-drilled mounting holes for quick workbench fixation
Quality Assurance
  • ISO 9001 certified with strict factory testing including load-bearing and corrosion resistance tests
  • Anvil surface hardness of HRC 45-50 withstands repeated hammering
  • Replaceable jaw plates extend product service life
Application Scenarios
  • Automotive Repair Shops: Clamping auto parts during disassembly and repair
  • Metalworking Workshops: Cutting, drilling, grinding, and welding metal workpieces
  • DIY Garages & Home Workshops: Woodworking and metal crafting projects
  • Industrial Manufacturing Lines: Precision component processing
  • Maintenance & Construction Sites: Portable solution for on-site repairs
Frequently Asked Questions
Q1: What is the difference between the E dimensions (φ10-75.5 and φ17-88.5) in the specification table?

The E dimension represents the size and spacing of the mounting holes:

  • 4" and 5" models: φ10mm holes with 75.5mm spacing (M10 bolts recommended)
  • 6" and 8" models: φ17mm holes with 88.5mm spacing (M16 bolts recommended for heavy-duty use)
Q2: Can the jaw plates be replaced with non-serrated ones?

Yes, optional non-serrated jaw plates are available in rubber or soft metal to protect delicate workpieces. Replacement takes 5-10 minutes with a hex wrench.

Q3: What is the maximum swivel angle of the base?

360-degree rotation with locking lever mechanism for secure positioning during operation.

Q4: Is the vise suitable for outdoor use?

Suitable for temporary outdoor use with proper maintenance:

  • Wipe dry after use
  • Apply machine oil to moving parts
  • Store in dry, ventilated area
Q5: How to choose the right size?
  • 4": Small workpieces, light DIY
  • 5": Medium parts, home workshops
  • 6": Professional metalworking
  • 8": Heavy-duty industrial use
Q6: What is the warranty coverage?

2-year limited warranty covering:

  • Material and workmanship defects
  • Structural part failures
  • Swivel base locking mechanism issues

Does not cover improper use or normal wear.

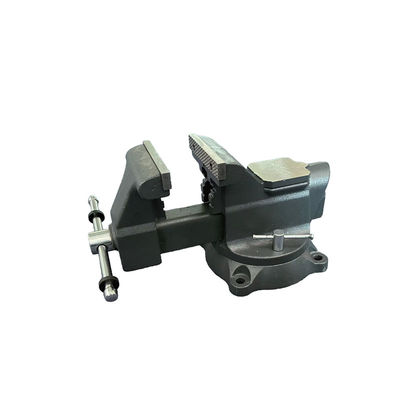

Heavy-Duty Swivel Bench Vise with Anvil product photo
