Product Details:
Payment & Shipping Terms:
|
| Tank Capacity: | 6L | Motor Power: | 600W, 4-pole |
|---|---|---|---|
| Voltage & Frequency: | 110V, 60HZ | Maximum Pressure: | 8 Bar / 115 PSI |
| Speed: | 1750 R/M (Revolutions Per Minute) | Piston Size: | 63.7mm × 2 |
| Highlight: | 6L air compressor for home,8Bar air compressor for workshops,115PSI air compressor outdoor |
||
| Parameter | Details |
|---|---|
| Model No. | YD85-007 |
| Tank Capacity | 6L |
| Motor Power | 600W, 4-pole |
| Voltage & Frequency | 110V, 60HZ |
| Maximum Pressure | 8 Bar / 115 PSI |
| Speed | 1750 R/M (Revolutions Per Minute) |
| Piston Size | 63.7mm * 2 |
| Phase | Single Phase |
| Free Air Delivery | 168 L/Min |
| Air Kit Set | Switch, two gauges, safety valve, one electric valve, one copper ball valve |
| Package Information | 5-ply export carton (with foam inside); Dimension: 50*50*20CM; Weight: 16 KGS |

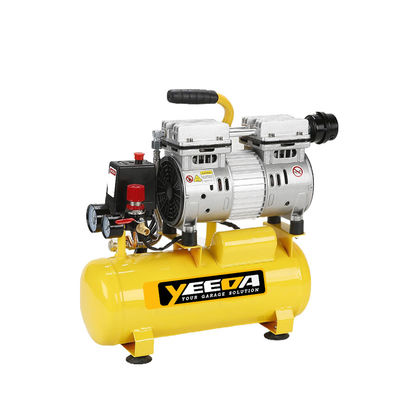

YEEDA's YD85-007 air compressor is designed for portability and efficient performance, featuring a compact 6L tank that's perfect for tasks requiring quick, on-demand air supply without bulk. Its 600W 4-pole motor operates at 1750 R/M, delivering a good balance of power and low noise, while achieving a maximum pressure of 8 Bar (115 PSI) and a free air delivery of 168 L/Min for reliable operation.
The single-phase 110V 60HZ configuration makes it compatible with standard home and garage outlets. The included air kit set enhances usability: two gauges for precise pressure monitoring, a safety valve, electric valve, copper ball valve, and switch ensure you're ready to use it right out of the box. Packed in a 5-ply export carton with foam protection, it's well-shielded during transit. With dimensions of 50*50*20CM and a weight of 16 KGS, it's easy to move and store, ideal for both fixed and mobile tasks.
A: The two gauges separately monitor tank pressure and output pressure, allowing for precise control when using different tools or tasks.
A: No, it's specifically designed for 110V 60HZ; using 220V may damage the motor.
A: Yes, the 6L tank extends runtime, making it suitable for tasks like tire inflation or short periods of pneumatic tool operation.
A: Yes, a detailed user manual is included to guide setup, operation, and maintenance.
Drain moisture from the tank after use, regularly check gauges and valves, and store it in a dry, ventilated area.
