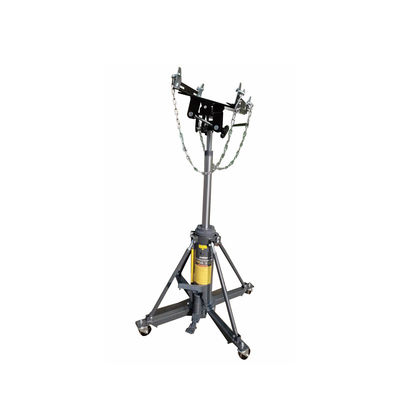

Auto Repair 1.5 Ton Double Ram Hydraulic Transmission Jack Stable Lifting
Product Details
| Lifting Capacity: | 3,000 Lb (1,500 Kgs) At The 1st Stage; 2,200 Lb (1,000 Kgs) At The 2nd Stage. | Height: | Minimum Height Is 37" (940 Mm); First Stage Height Is 56" (1422 Mm); Full Raise Height Is 74.75" (1898 Mm). |
|---|---|---|---|
| Other Parameters: | G.W. Is 198 Lb (90 Kgs); N.W. Is 180 Lb (82 Kgs); Packing Size Is 15"×22.4"×34.6" (38×56×88 Cm). | ||
| Highlight |
Auto Repair hydraulic transmission jack,1.5 Ton hydraulic transmission jack,stable lifting transmission jack |
||
Product Description
- Lifting Capacity: 3,000 lb (1,500 kgs) at the 1st stage; 2,200 lb (1,000 kgs) at the 2nd stage.
- Height: Minimum height is 37" (940 mm); first stage height is 56" (1422 mm); full raise height is 74.75" (1898 mm).
- Other Parameters: G.W. is 198 lb (90 kgs); N.W. is 180 lb (82 kgs); packing size is 15"*22.4"*34.6" (38*56*88 cm).
- Features a 2.16" (Φ55) chromed piston, 4*3.5" swivel ball bearing casters.

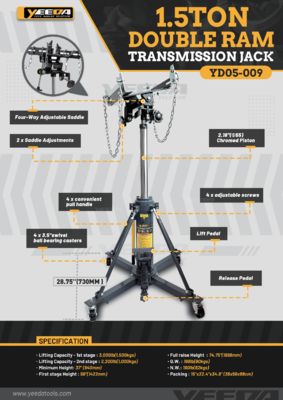

The 1.5 Ton Double Ram Transmission Jack (YD05 - 009) is a robust tool for transmission handling. Key features include:
- Four-way adjustable saddle with 2*saddle adjustments for precise positioning
- 2.16" chromed piston ensures smooth and stable lifting
- 4 convenient pull handles for easy movement
- 4*3.5" swivel ball bearing casters for flexible maneuvering
- Simple operation via lift and release pedals
- Double ram design provides reliable lifting power for various transmission weights
- Automotive Repair Shops: Ideal for removing and installing transmissions in cars, trucks, and other vehicles
- Garages: Simplifies transmission maintenance and replacement tasks
- Vehicle Maintenance Facilities: Essential for regular transmission checks and repairs
A: The 1st stage has a lifting capacity of 3,000 lb (1,500 kgs), which is higher than the 2nd stage's 2,200 lb (1,000 kgs). The 1st stage is for heavier loads at lower heights, while the 2nd stage is for slightly lighter loads when lifting higher.
A: Keep the piston clean and apply appropriate lubricant regularly to prevent rust and ensure smooth operation.
A: Yes, the 3.5" swivel ball bearing casters are lockable, allowing you to secure the jack in place during operation.
