Workshop Air - Operated Wheel Lift, 200LBS Capacity, Easy Lifting

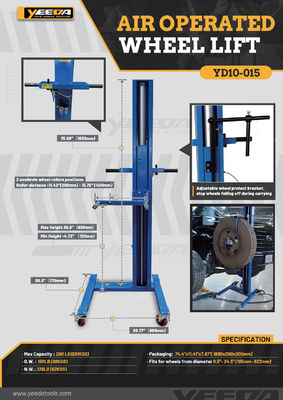

Large Image : Workshop Air - Operated Wheel Lift, 200LBS Capacity, Easy Lifting

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD10-015

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Max Capacity:	200 LBS (91 KGS)	G.W.:	150 LB (68 KGS)
N.W.:	136 LB (62 KGS)	Packaging:	74.4"×11.41"×7.87" (1890×290×200 Mm)
Wheel Diameter Fit Range:	6.5" - 24.5" (165 Mm - 622 Mm)	Height Adjustment:	Max 36.6" (930 Mm), Min -4.72" (120 Mm)
Highlight:	air operated motorcycle wheel lift , 200lbs capacity motorcycle lift bench , easy lifting workshop wheel lift

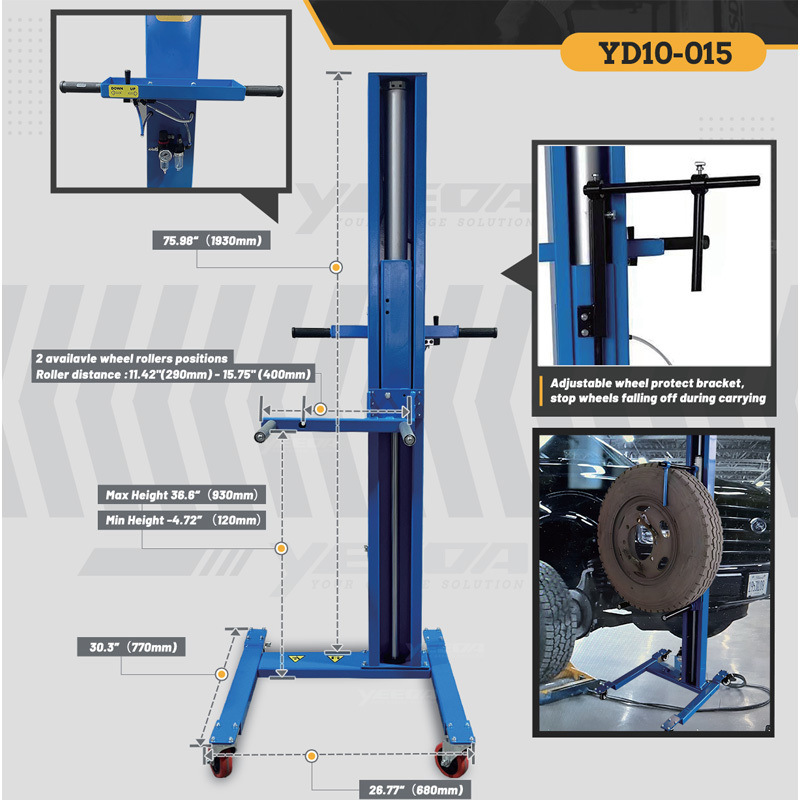

Workshop Air-Operated Wheel Lift, 200LBS Capacity, Easy Lifting

Product Specifications

Model	YD10-015
Max Capacity	200 LBS (91 KGS)
G.W.	150 LB (68 KGS)
N.W.	136 LB (62 KGS)
Packaging	74.4"11.41"7.87" (1890290200 mm)
Wheel Diameter Fit Range	6.5" - 24.5" (165 mm - 622 mm)
Height Adjustment	Max 36.6" (930 mm), Min -4.72" (120 mm)
Other Dimensions	Overall height 75.98" (1930 mm), base width 26.77" (680 mm)

Key Features

Air-operated system for smooth lifting operation
2 adjustable wheel rollers positions (11.42" - 15.75" roller distance)
Adjustable wheel protect bracket for secure handling
Sturdy construction for durability and safety
Wide height adjustment range for versatile applications

Product Details

The YD10-015 Air Operated Wheel Lift is an efficient tool for wheel handling in automotive workshops. With a maximum capacity of 200 LBS, it easily lifts wheels with diameters ranging from 6.5" to 24.5". The air-operated system ensures smooth and controlled lifting operations. Featuring two adjustable wheel roller positions and an adjustable wheel protect bracket, this tool provides secure handling for various wheel sizes. The height adjusts from -4.72" to 36.6" to accommodate different working requirements. Its robust construction and practical design make wheel lifting and moving operations both convenient and safe.

Application Scenarios

Automotive Repair Shops: Enhances efficiency when lifting and moving wheels during vehicle maintenance and repair
Tire Service Centers: Perfect for handling tires of different sizes during replacement and service
Car Workshops: Streamlines wheel-related tasks for smoother workshop operations

Frequently Asked Questions

Q: How to adjust the wheel protect bracket?

A: Simply loosen the locking mechanism, position the bracket as needed, then tighten to secure it in place.

Q: What air pressure is needed for operation?

A: While specific requirements depend on your air system configuration, ensure sufficient pressure is provided for smooth lifting according to the tool's design specifications.

Q: Can it be moved easily?

A: Yes, the stable base and balanced design allow for easy movement within the workshop when needed.
