2-Ton Portable Hydraulic Shop Crane | Auto Repair, 4-Level Lift, Easy Fold

Large Image : 2-Ton Portable Hydraulic Shop Crane | Auto Repair, 4-Level Lift, Easy Fold

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD01-007

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	$165
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Rated Load Capacity:	6600LB (3000KG)	Lifting Range:	47"-72" (120cm-183cm)
Working Range:	0-86.6" (0-220cm)	Package 1 Parameters:	Gross Weight (G.W.): 77LBS (30KGS); Net Weight (N.W.): 72.6LBS (28KGS); Package Size: 5"×33.8"×4.3" (134cm×81cm×11cm)
Package 2 Parameters:	Gross Weight (G.W.): 162LBS (72KGS); Net Weight (N.W.): 158LBS (70KGS); Package Size: 57.8"×11.8"×7.8" (144cm×32cm×21cm)	Package 3 Parameters:	Gross Weight (G.W.): 35LBS (18KGS); Net Weight (N.W.): 33LBS (17KGS); Package Size: 27.5"×7"×6" (72cm×19cm×15.5cm)
Max. Capacity::	2 Tons	Lifting Range:	0–2300mm
Frame Size:	1500mm(H) × 1760mm(L) × 1220mm(W)	Wheelbase:	Front 1020mm, Rear 660mm
Net Weight:	85kg	Power System:	Two-speed Hydraulic Pump
Highlight:	2-ton portable hydraulic shop crane , auto repair engine hoist , foldable 4-level lift crane

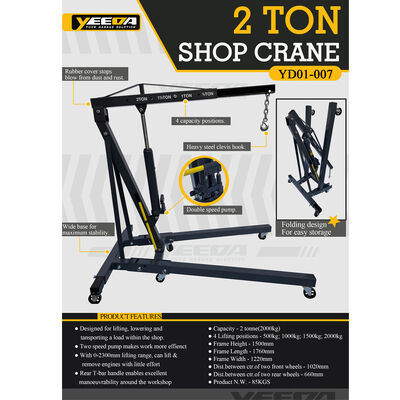

YEE DA 2-Ton Portable Hydraulic Shop Crane

Flexible Lifting with Easy Storage for Auto Repair

Product Specifications

Max. Capacity	2 tons (4 adjustable levels: 500kg / 1000kg / 1500kg / 2000kg)
Lifting Range	0-2300mm
Frame Size	1500mm(H) × 1760mm(L) × 1220mm(W)
Wheelbase	Front 1020mm, Rear 660mm
Net Weight	85kg
Power System	Two-speed hydraulic pump
Hook Type	Heavy-duty steel hook with dust/rust protection rubber cap

Product Features

Designed for workshop and garage environments, this 2-ton crane features a two-speed hydraulic pump for fast lifting and precise positioning. The arm clearly displays four load capacity markings. The wide base and four swivel casters (two with brakes) ensure stable and flexible operation.

Two-speed hydraulic system: Combines efficiency with control for optimal performance
Dust & rust protected hook: Extends service life in demanding workshop conditions
Rear T-handle: Easy steering and movement for precise positioning

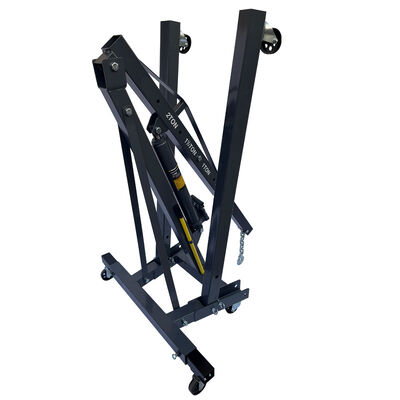

Quick folding design: Folded height ~850mm, saves valuable storage space
Wide base stability: Enhanced safety during lifting operations

Applications

Auto repair: Engine and transmission removal/installation
Equipment assembly: Positioning and assembling heavy machinery
Workshop handling: Short-distance lifting of molds and materials
Garage DIY: Vehicle modification and large tool handling

Frequently Asked Questions

Can the crane be overloaded?

Overloading is strictly prohibited. Always follow the marked load levels (½ TON, 1 TON, 1½ TON, 2 TON) on the arm. Overloading may cause structural damage or safety hazards.

Does the hydraulic pump require maintenance?

It is recommended to check the hydraulic oil condition every 6 months and keep the pump clean. When not in use for extended periods, lower the boom completely.

Can it be used on slopes or uneven ground?

Use only on flat, solid surfaces. If the ground is slightly uneven, use leveling plates to prevent movement and ensure stability.

What are the dimensions when folded?

Folded height is approximately 850mm, length ~1200mm. It can be stored upright against a wall to save valuable workshop space.

Storage Note: When folded, this crane occupies minimal space with dimensions of approximately 850mm height × 1200mm length, making it ideal for workshops with limited storage area.
