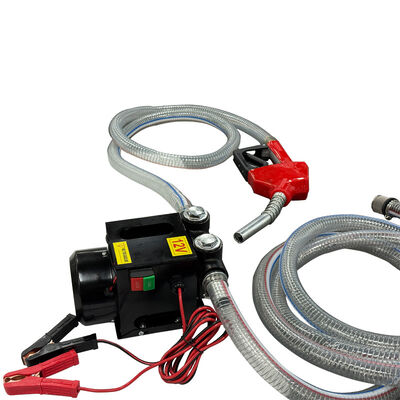

Diesel Oil Transfer: 70L/min Flow, 5M Self-Priming, IP54 Metal Pump Kit.

Large Image : Diesel Oil Transfer: 70L/min Flow, 5M Self-Priming, IP54 Metal Pump Kit.

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD51-006C

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Voltage:	Dual-voltage	Power::	175W
Protection Rating:	IP55 (dustproof, Water-jet Resistant)	Safety Feature:	Built-in Bypass Valve
Flow Rate:	0-50 L/min (adjustable Via Metering Nozzle)	Suction Head::	3m (residual Fuel ≤2L)
Voltage:	12V/24V DC	Flow Rate:	70 L/min
Self-Priming Height:	5 M	Compatible Fluids:	Diesel / Oil (Not For Gasoline)
Protection Rating::	IP54	IP54:	Short Tube: 80.71" (2050 Mm), Diameter: 1.18" (30 Mm)
Highlight:	diesel oil transfer pump 70L/min flow , metal grease oil pump IP54 rated , self-priming oil pump kit 5M lift

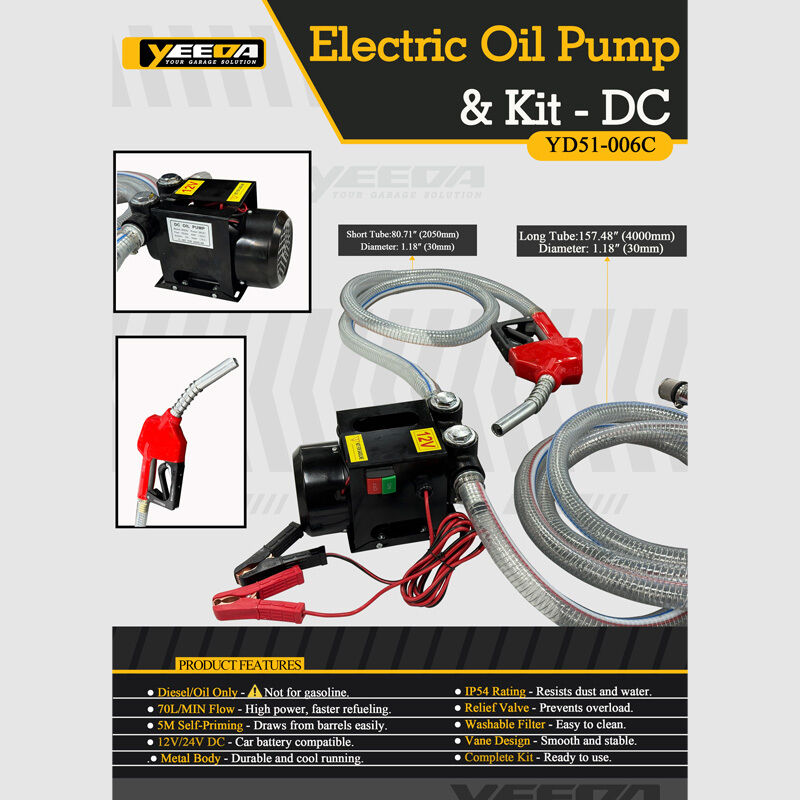

YEECA DC Electric Oil Pump Kit (Model: YD51-006C)

Professional diesel oil transfer pump with high flow rate and durable metal construction for reliable performance in industrial applications.

Product Specifications

Model: YD51-006C

Voltage: 12V/24V DC

Flow Rate: 70 L/min

Self-Priming Height: 5 m

Compatible Fluids: Diesel / Oil

Protection Rating: IP54

Short Hose: 80.71" (2050 mm), 1.18" (30 mm) diameter

Long Hose: 157.48" (4000 mm), 1.18" (30 mm) diameter

Kit Includes: Electric Oil Pump, Fuel Nozzle, Long & Short Hoses, Battery Clamps

Product Features

Metal Body - Durable construction with excellent heat dissipation
Vane Pump Design - Ensures stable and smooth operation
Washable Filter - Easy maintenance for extended service life
Relief Valve - Prevents overload and ensures safe operation
High Flow Design - 70 L/min capacity for rapid refueling
Complete Ready-to-Use Kit - All necessary accessories included

Application Scenarios

Refueling vehicles, tractors, and diesel generators
Extracting oil from drums, tanks, or containers
Fuel transfer for marine engines and boilers
Emergency rescue and mobile refueling for fieldwork

Frequently Asked Questions

Can this pump be used for gasoline?

No. This product is designed only for diesel and oil. Do not use with gasoline or other flammable liquids.

How should the hoses be maintained after use?

Drain any remaining fluid from the hoses after use. Avoid prolonged sun exposure and sharp bending. Regularly inspect for signs of aging or cracks.

What might cause reduced pumping speed?

Please check the following:

Clean the filter if clogged
Ensure the battery voltage is correct (12V/24V)
Inspect hoses for bends, kinks, or air leaks
Confirm the suction height does not exceed 5 meters
